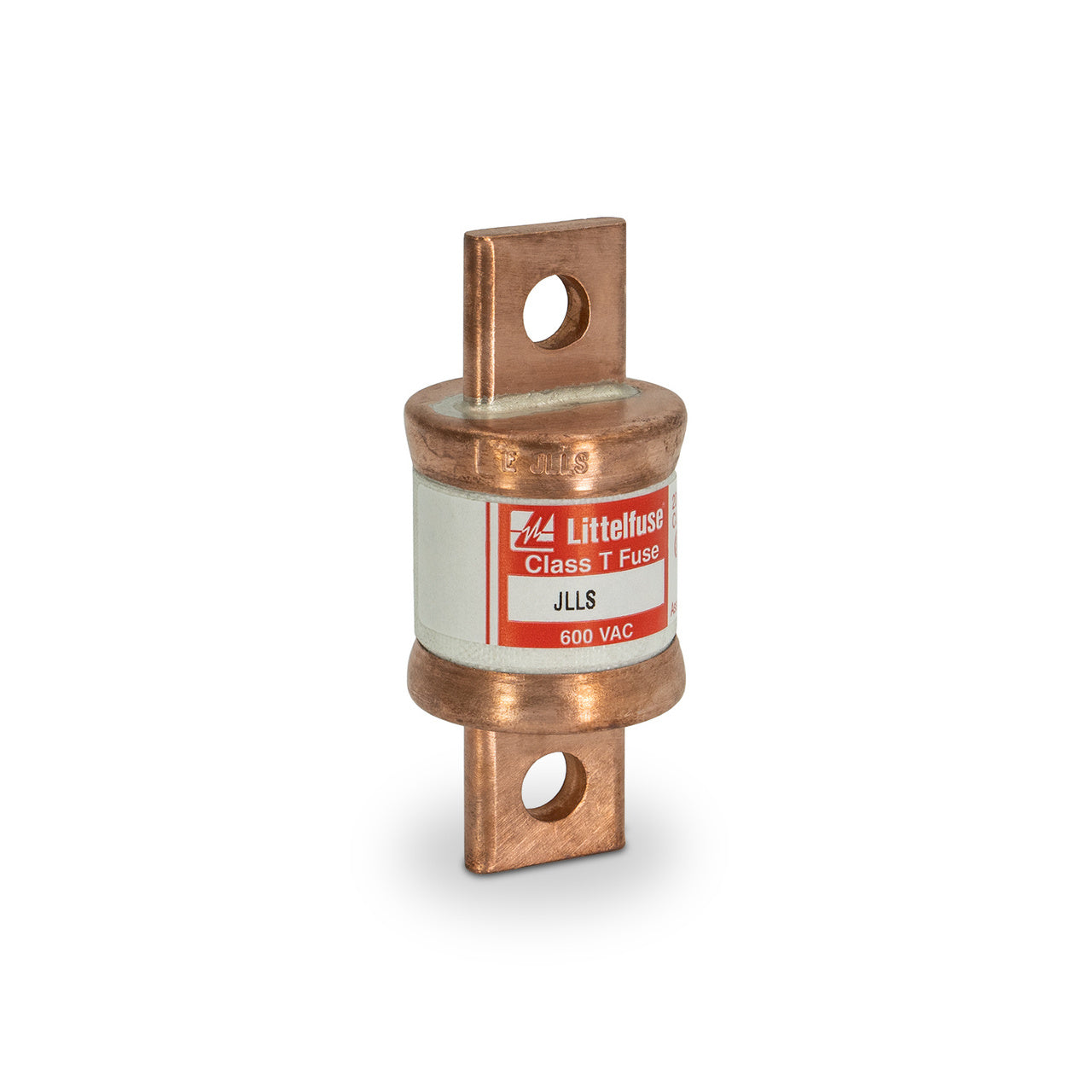

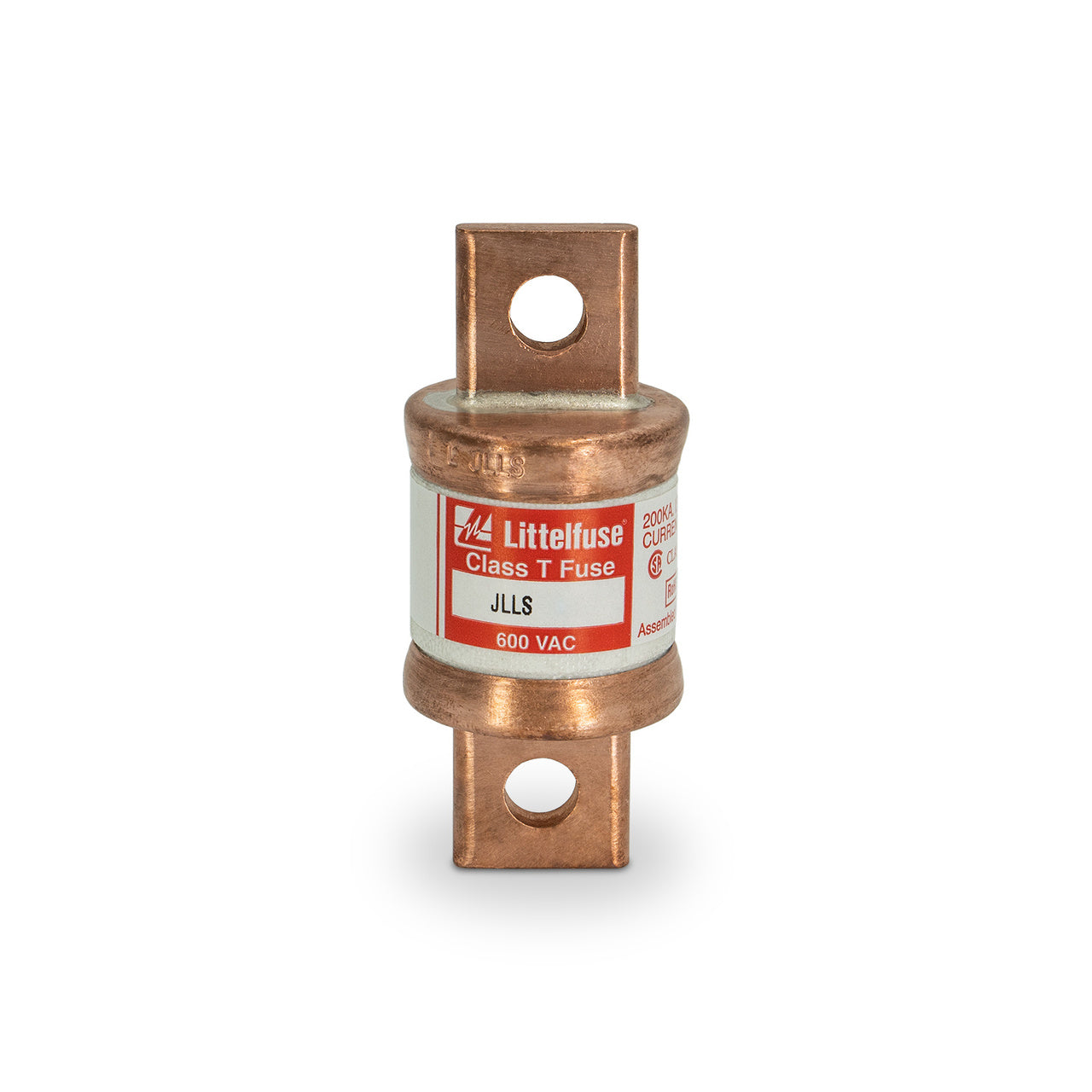

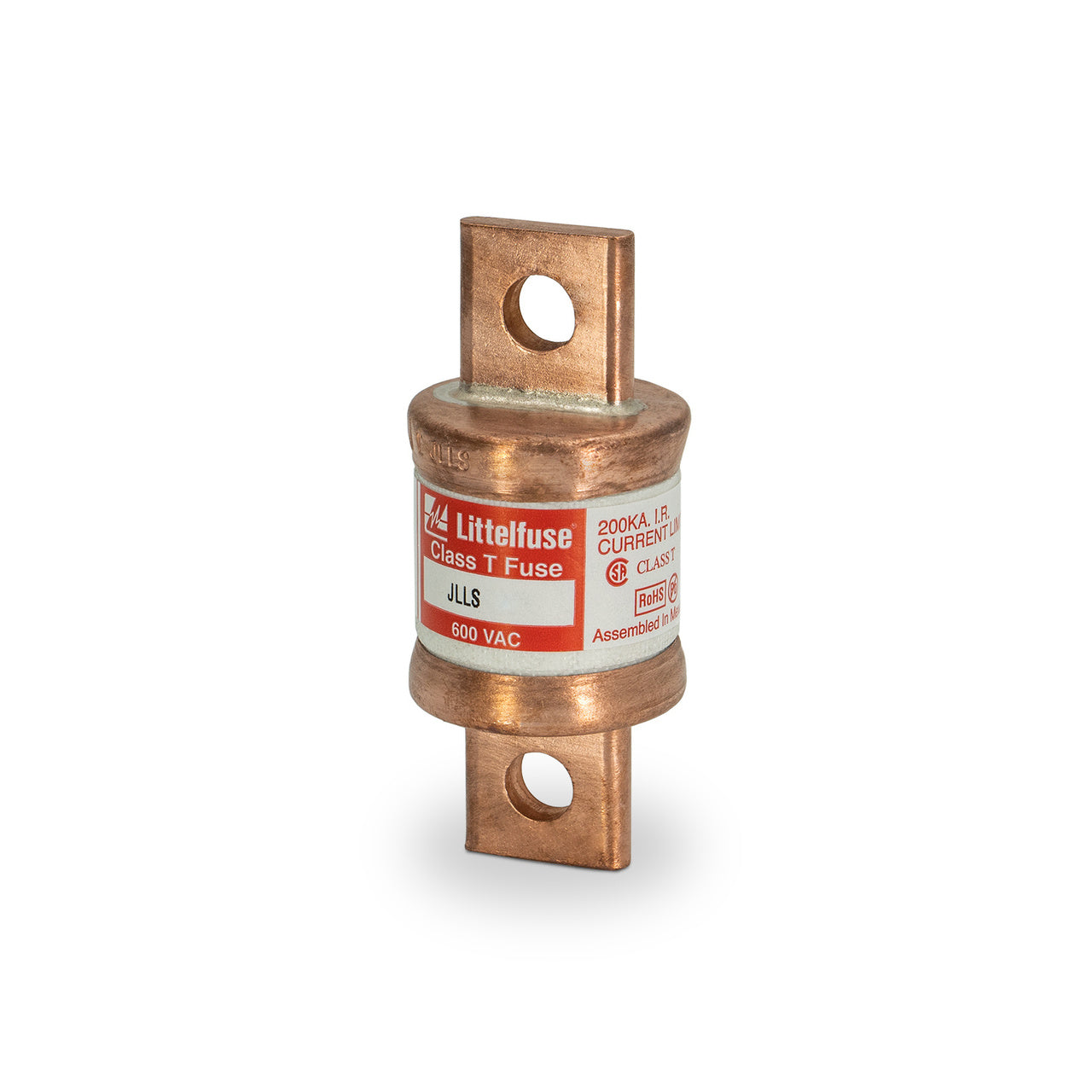

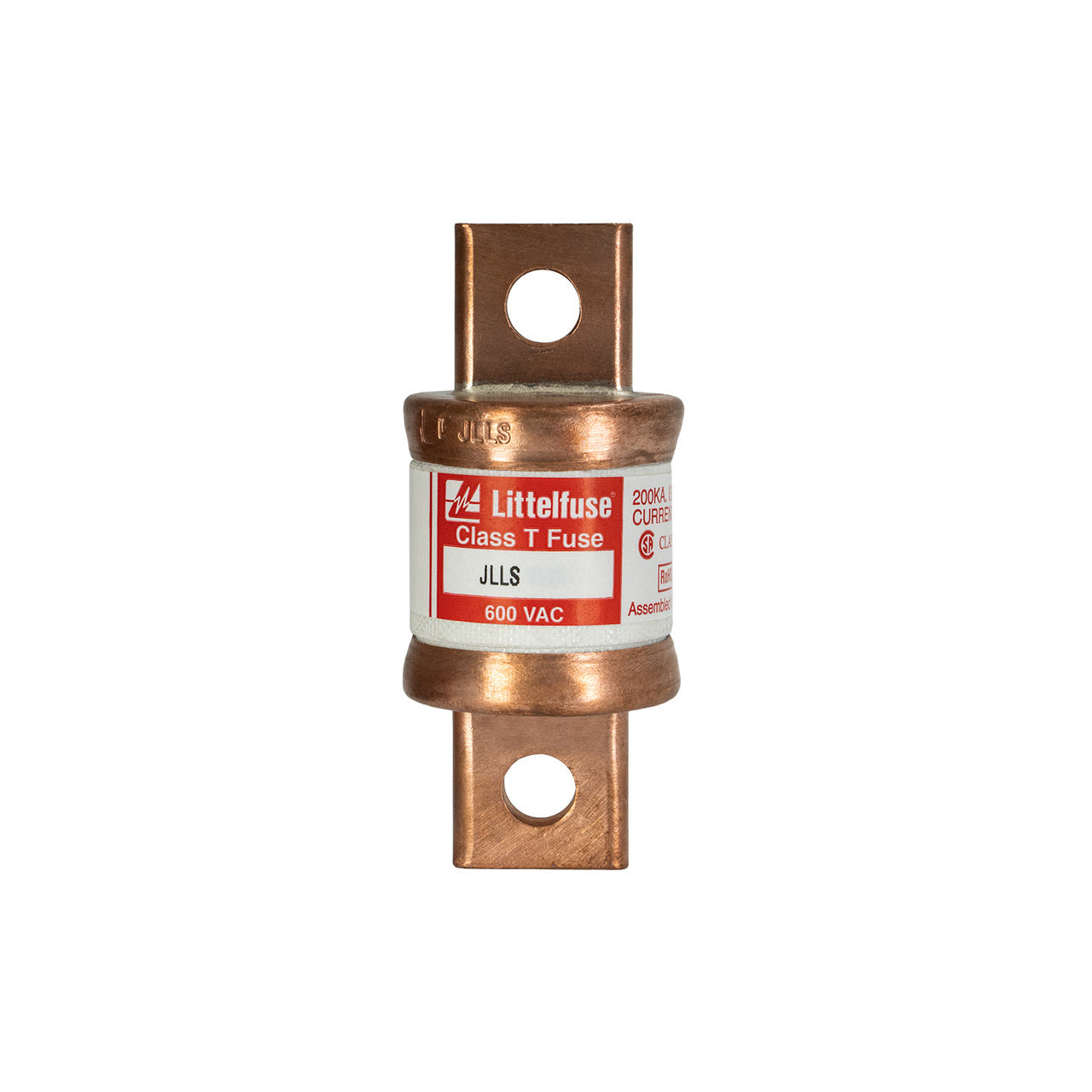

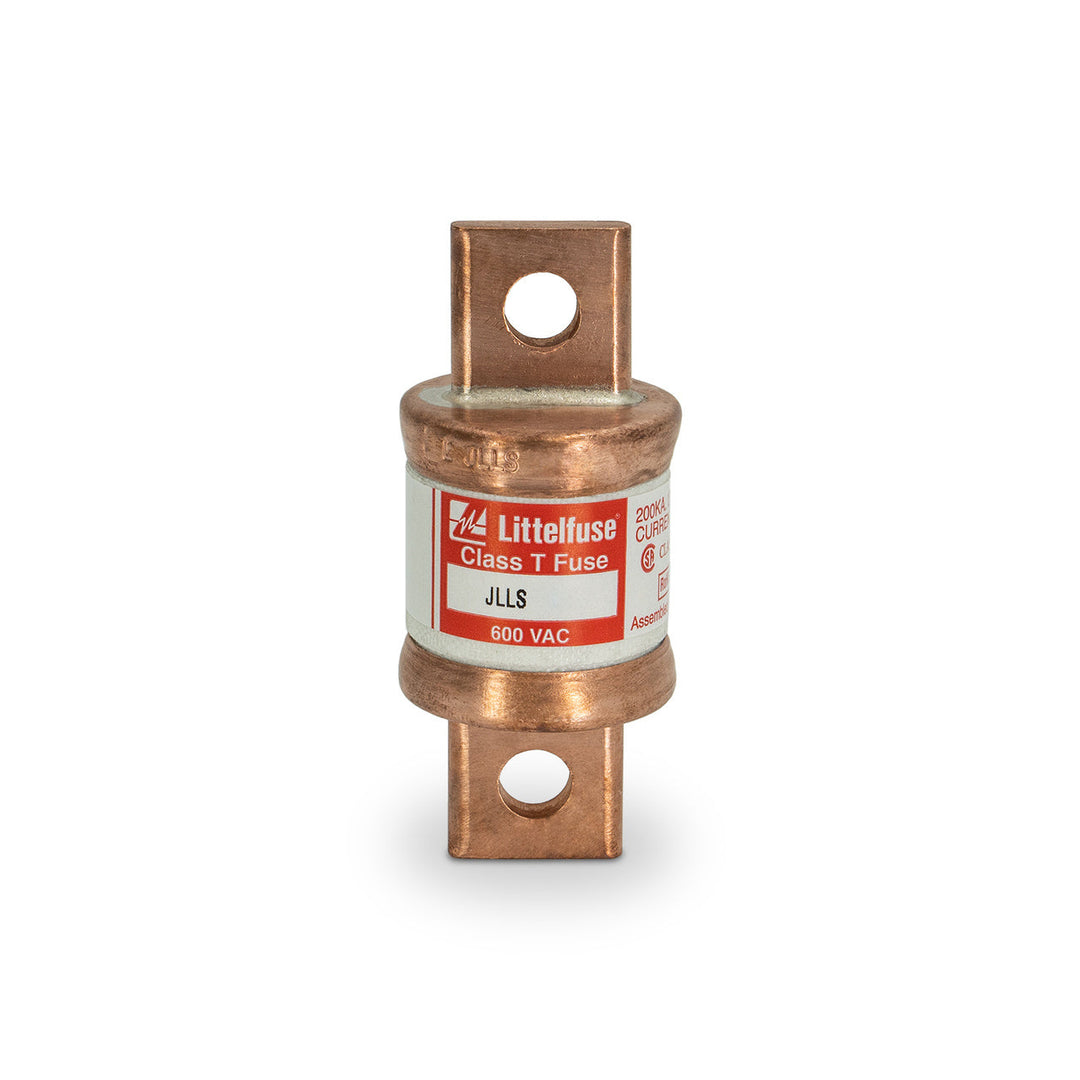

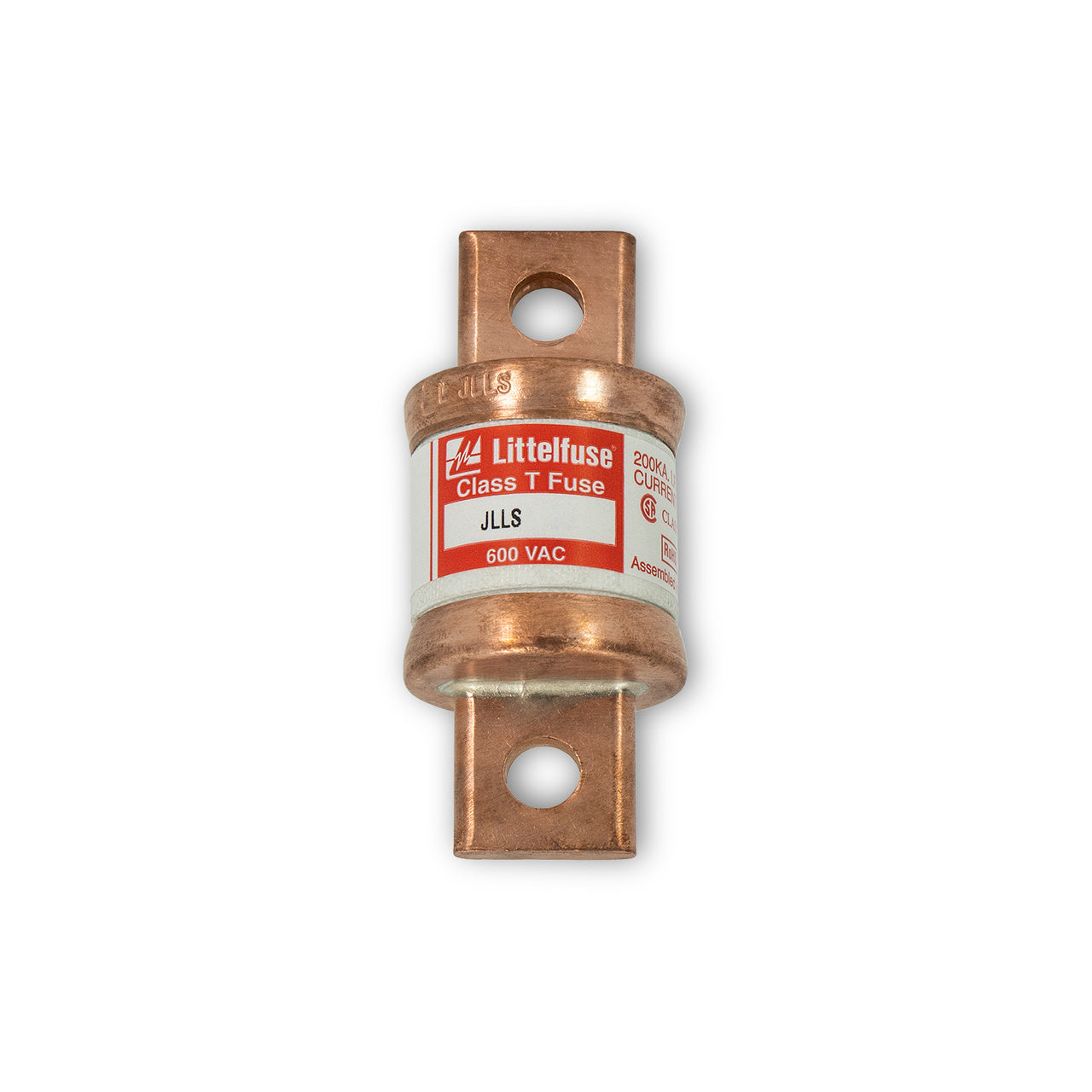

Littelfuse JLLS-225 - JLLS Fuse 225A (600V, 200kA AIC, T-Class)

Littelfuse JLLS-225 is a low voltage fuse from the Powr-Gard family designed to provide reliable circuit protection in industrial applications. It features a 600V voltage rating and a 225A current rating, engineered to interrupt high fault currents with an AIC rating of 200kA at 600V. The fuse is constructed as a single-barrel, bolt-in type with a 1.6-inch diameter and a T-class rating, ensuring robust performance. It complies with industry standards for safety and reliability in demanding electrical environments, making it suitable for protecting industrial control circuits, motor branches, and feeder circuits.

Key Features & Specifications

• Type: JLLS, Low Voltage Fuse, Single Barrel, Bolt-In Connection
• Voltage Rating: 600V
• Current Rating: 225A
• Dimensions: 1.6-inch Diameter
• Standards: Industry standards for low voltage fuses
• Applications: Industrial control circuits, motor branch and feeder protection
• AIC rating: 200kA@600V
• Class Rating: T
• Connection: Bolt-In
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 07945819089
• GTIN: 00079458190892
