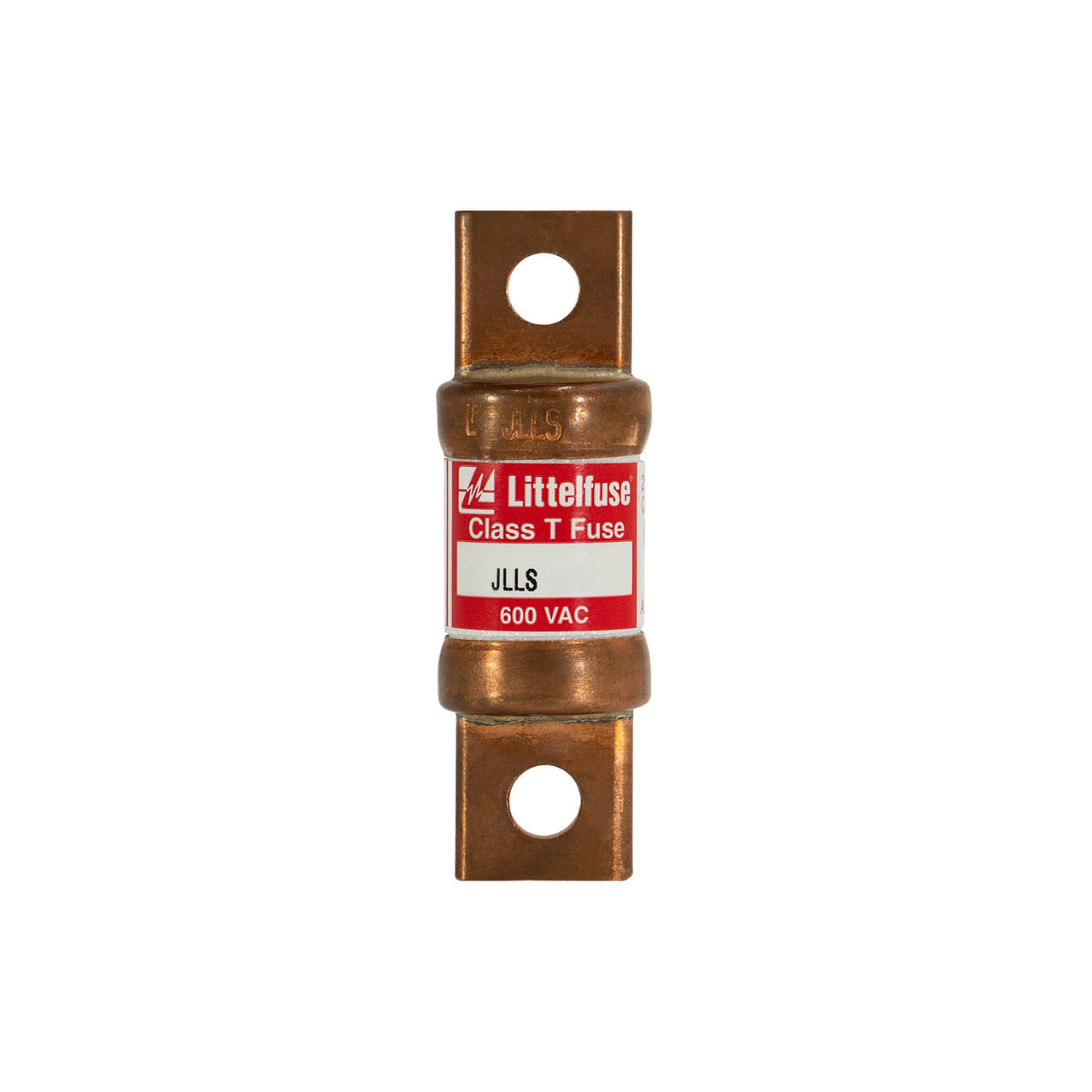

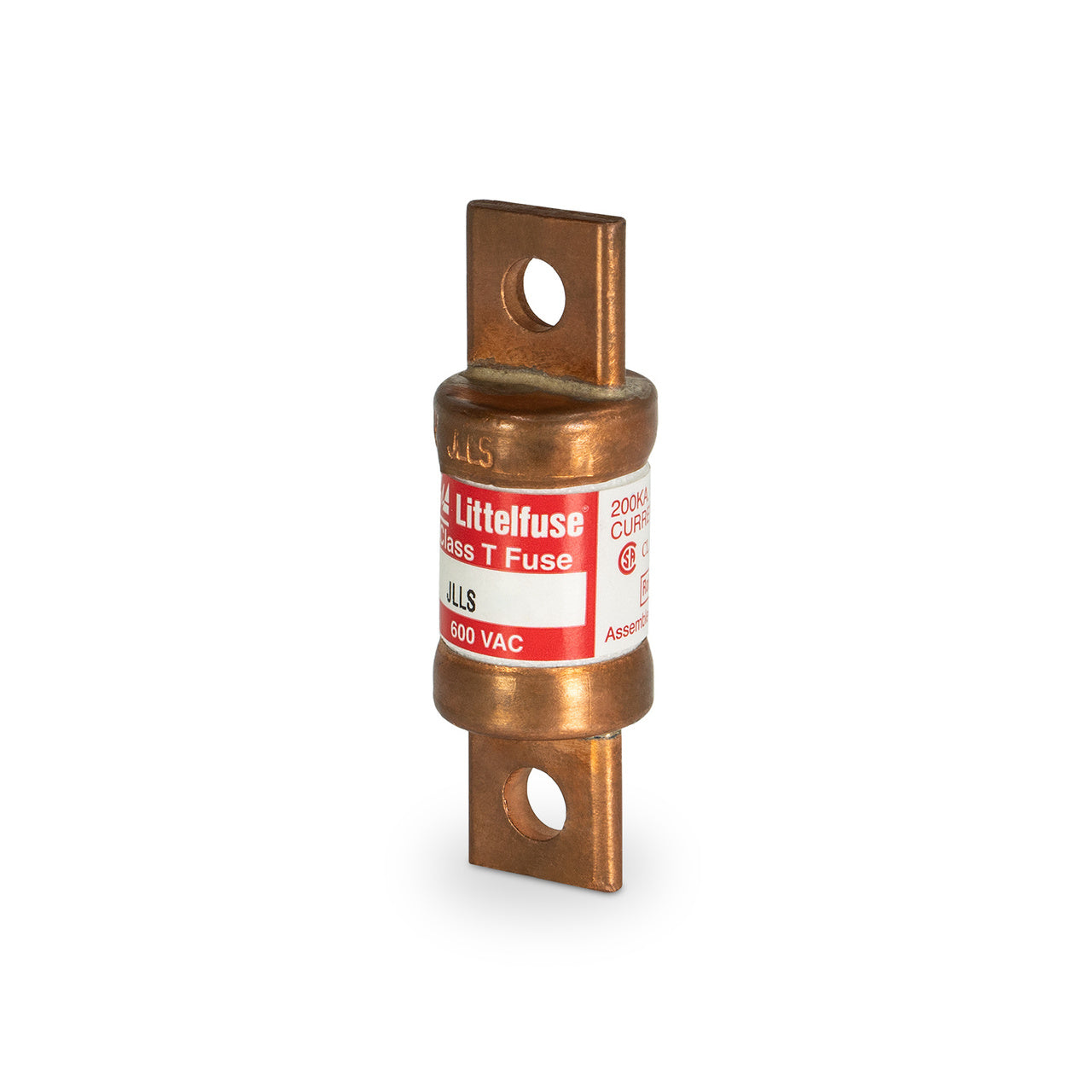

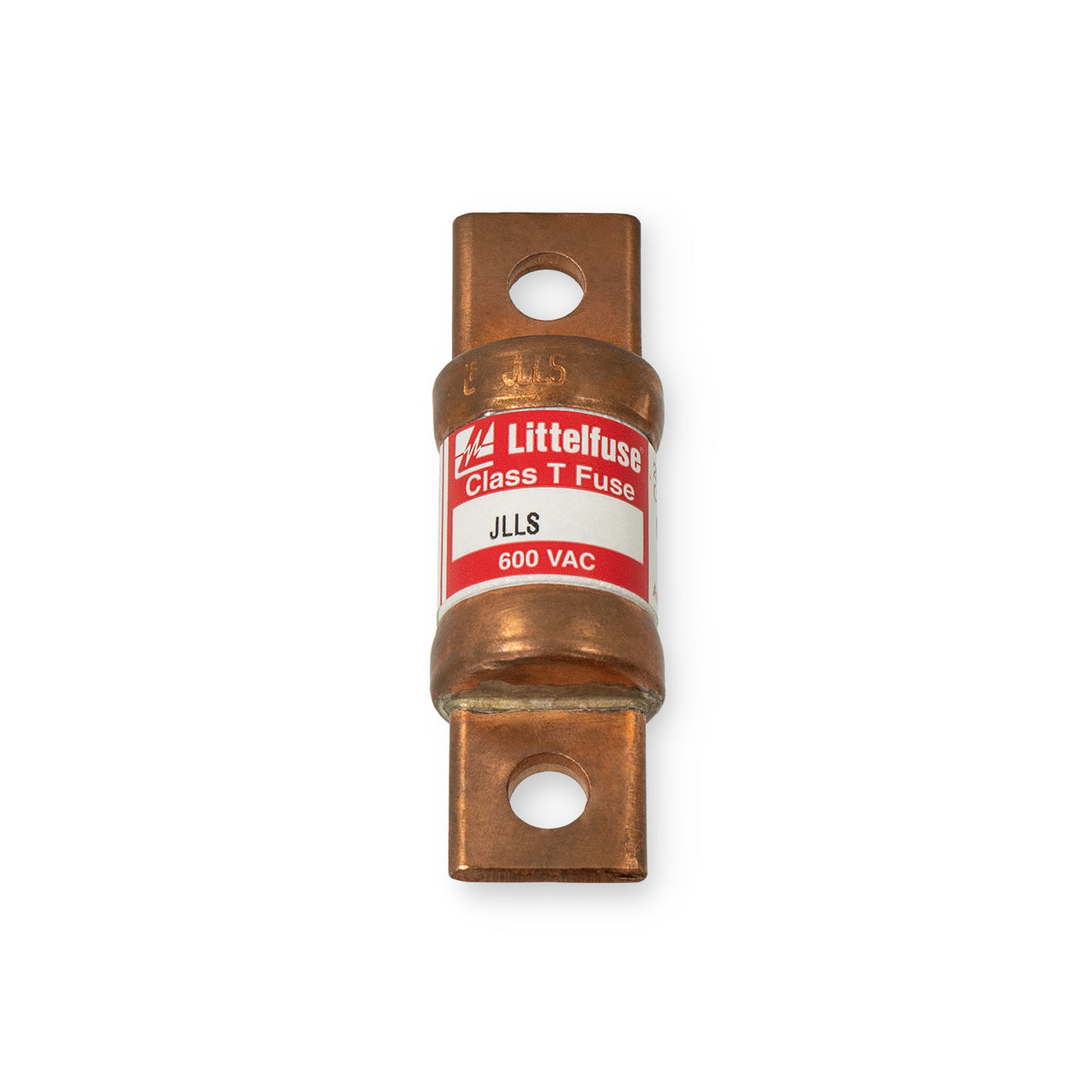

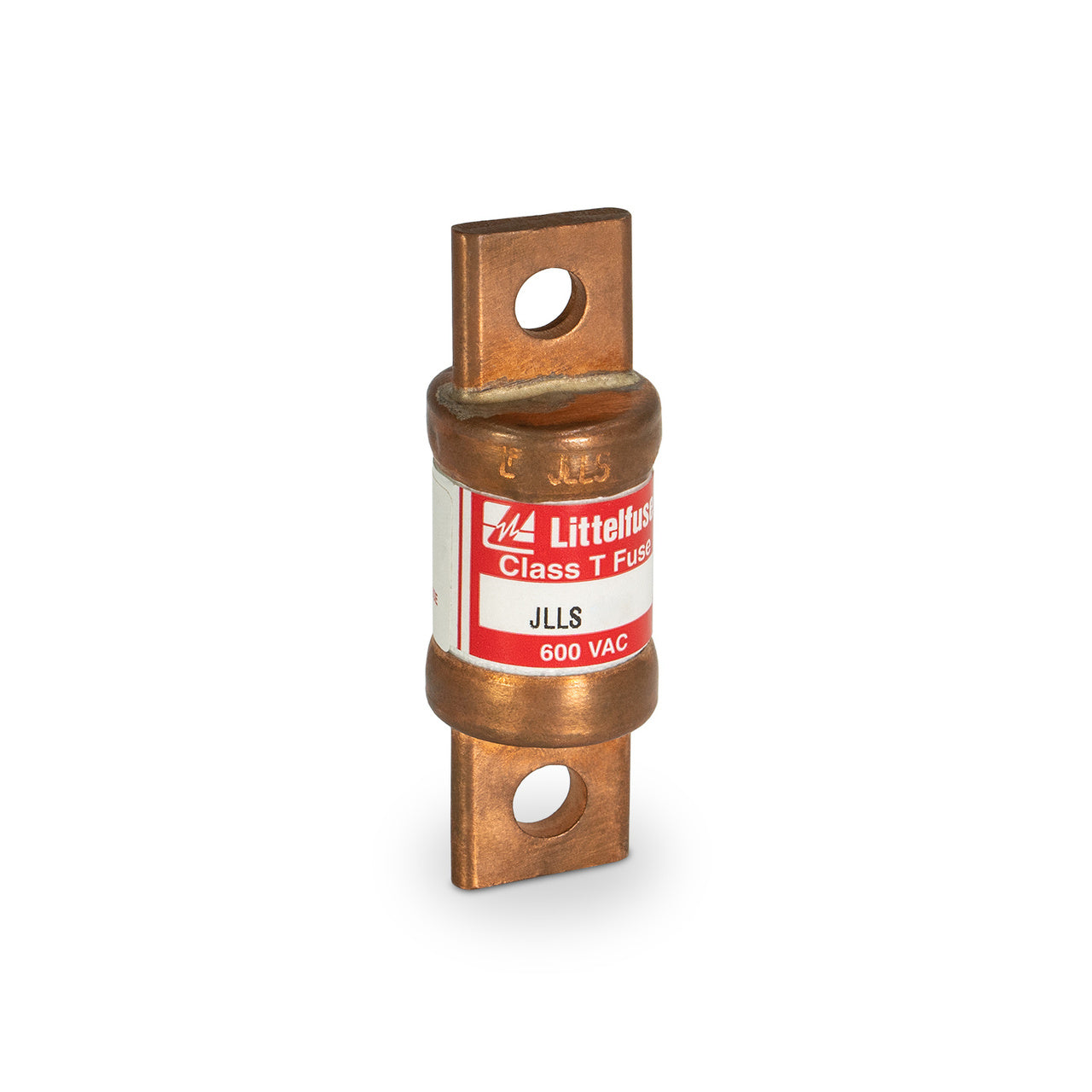

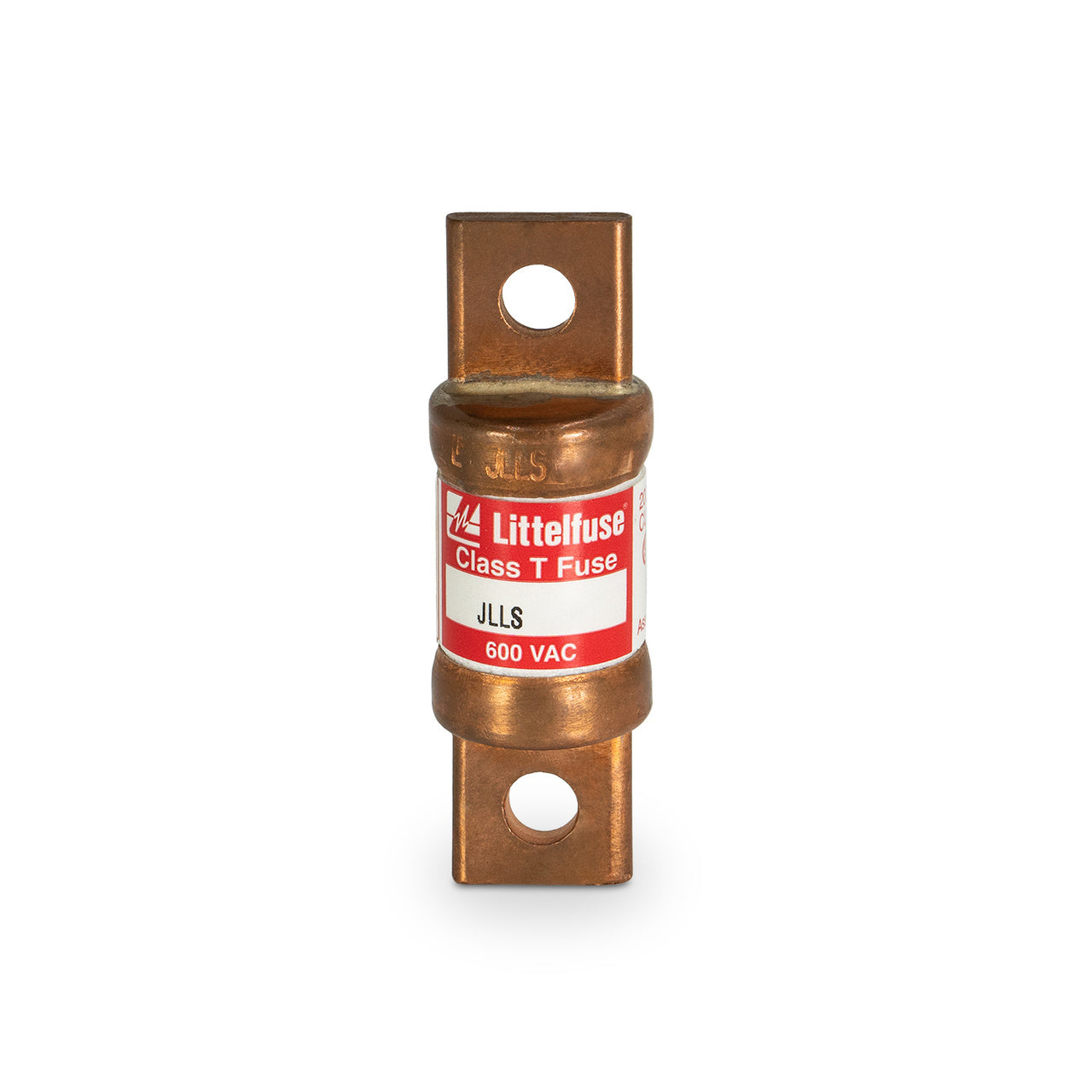

Littelfuse JLLS-175 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and a 175A current rating, providing reliable overcurrent protection with a 200kA interrupting rating at 600V. The fuse is constructed as a single-barrel design with a 1.08-inch diameter and utilizes a bolt-in connection method for secure installation. This Powr-Gard series fuse meets industry standards for high-performance circuit protection in demanding environments, making it suitable for main feeder circuits, service entrance equipment, and industrial control panels where high fault current protection is required.
Key Features & Specifications
Type: Class T low-voltage fuse, single barrel construction
Voltage Rating: 600V AC
Current Rating: 175A
Dimensions: 1.08-inch diameter
Standards: UL/CSA certified
Applications: Industrial power distribution, service entrance equipment, main feeder circuits
Connection: Bolt-In
Barrels: 1
AIC rating: 200kA@600V
Class Rating: T
Weight: 5.19 lb
Product Identification
UPC: 07945819087
GTIN: 00079458190878
