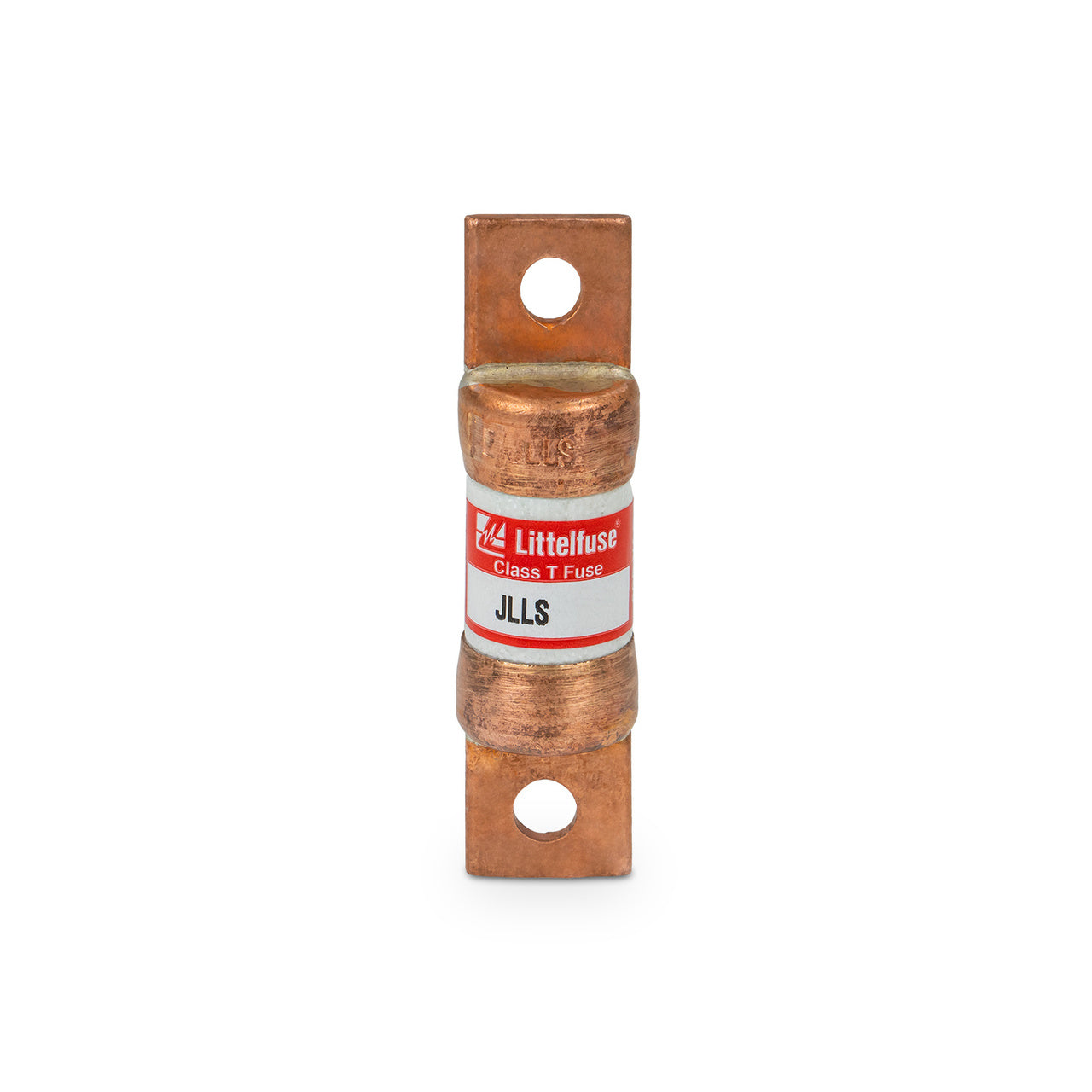

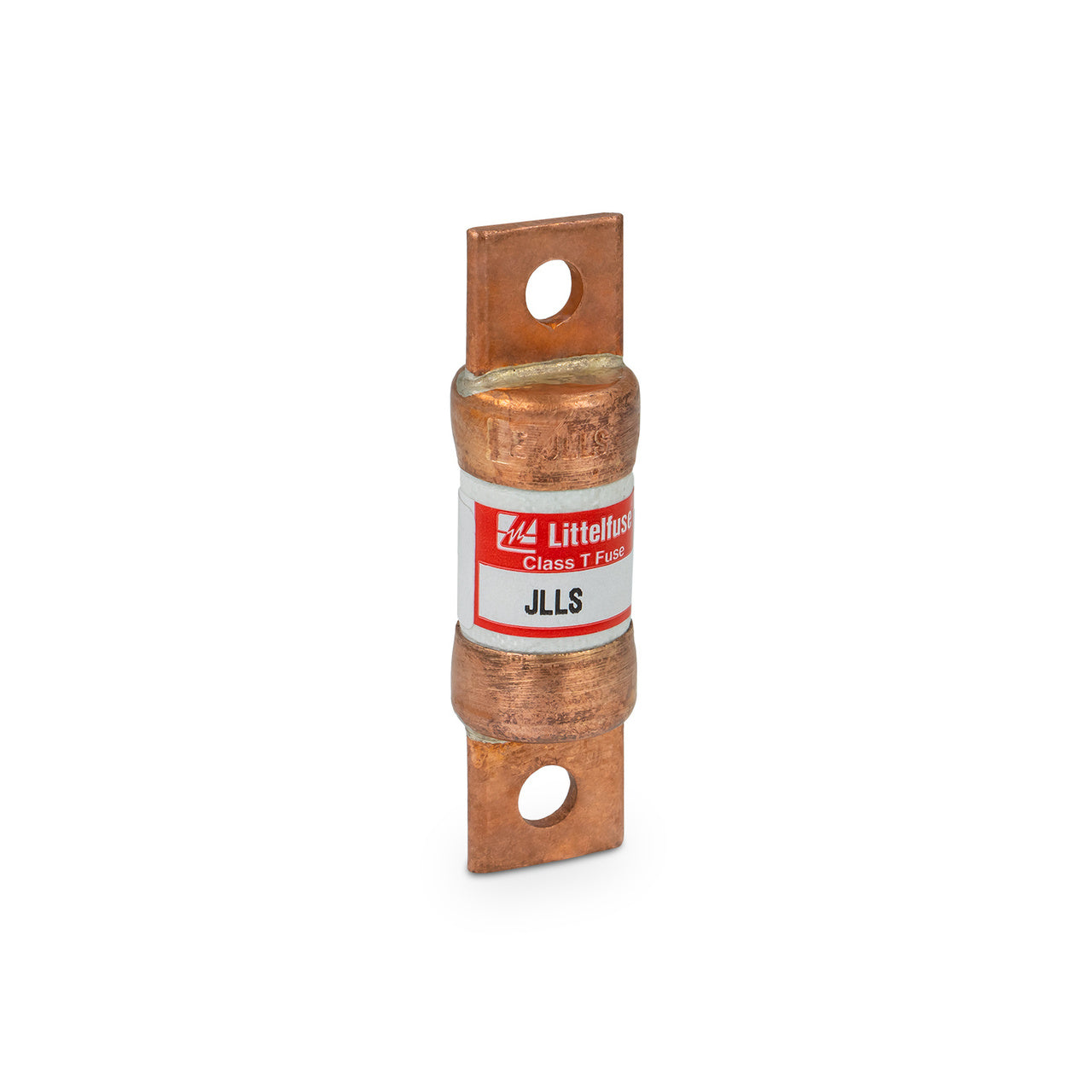

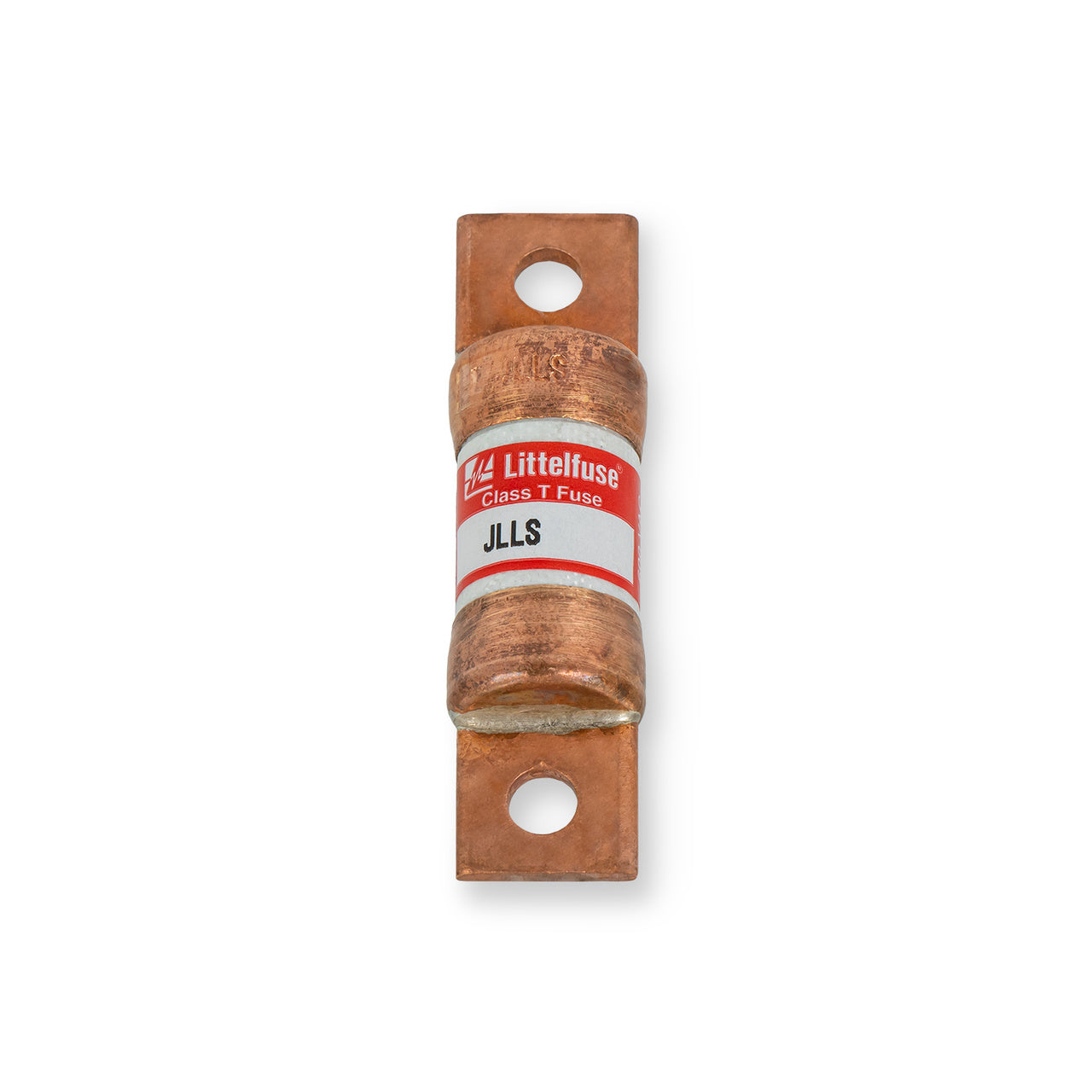

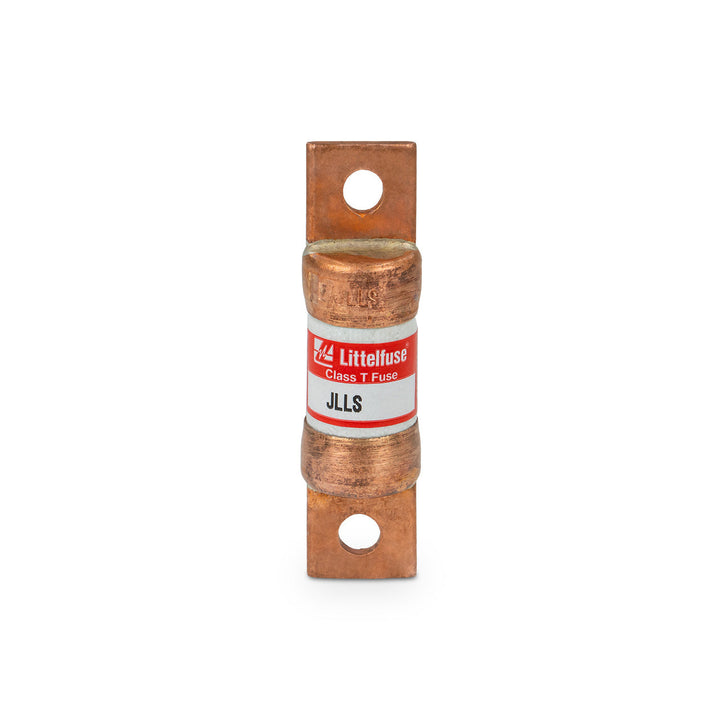

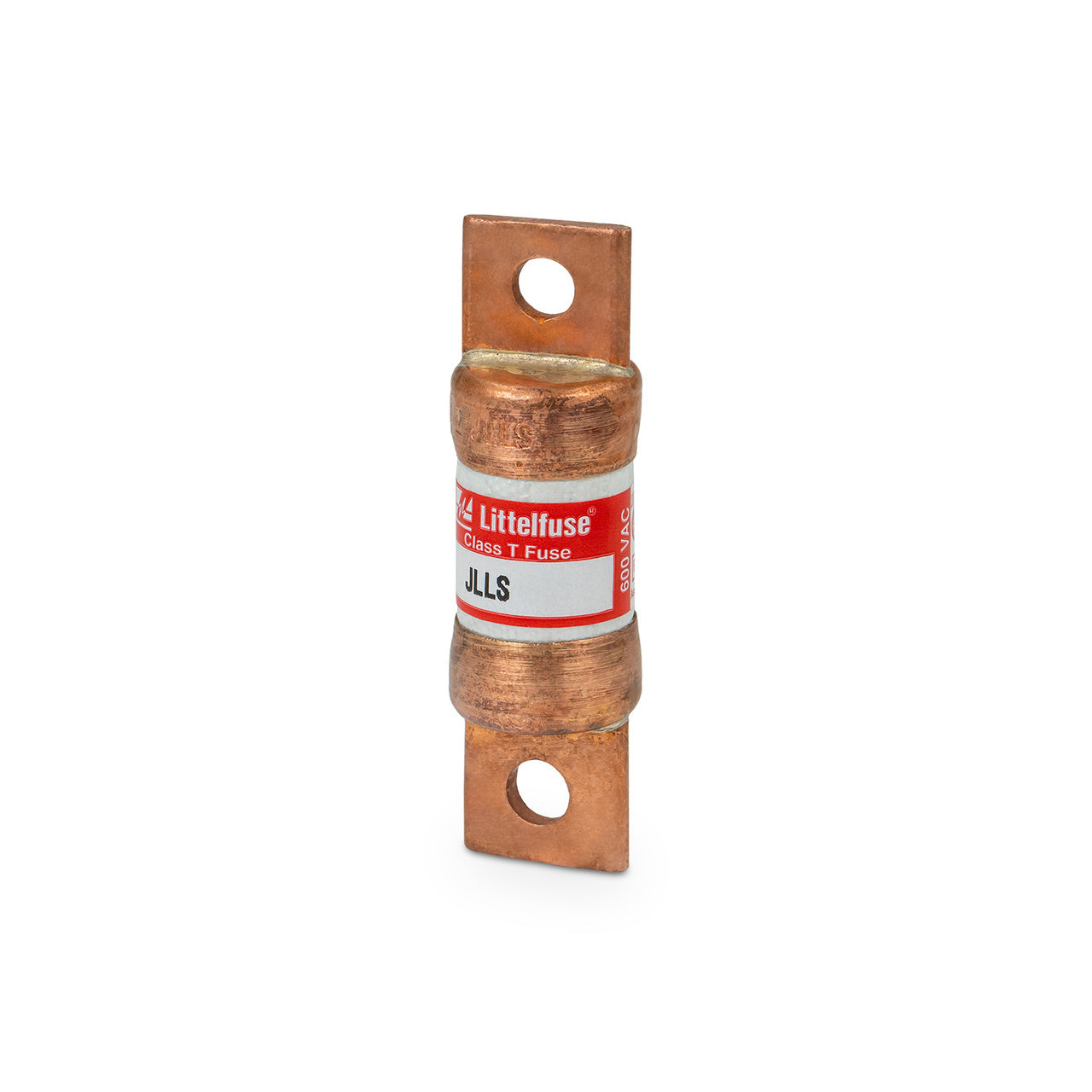

Littelfuse JLLS-090 - Class T Fuse 90A 600V (200kA Interrupting Rating)

Littelfuse JLLS-090 is a Class T low-voltage fuse designed for high-performance circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and 90A current rating, providing reliable overcurrent protection with a high interrupting capacity of 200kA at 600V. The fuse construction utilizes a single-barrel design with bolt-in connection terminals and measures 0.81 inches in diameter with a weight of 5.19 lb. As part of Littelfuse's Powr-Gard family, this fuse meets industry standards for high-interrupting capacity applications. Typical applications include industrial control panels, motor branch circuits, and power distribution equipment requiring fast-acting protection against short circuits.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction with bolt-in connection
• Voltage Rating: 600V AC
• Current Rating: 90A
• Dimensions: 0.81 inches diameter
• Standards: Industry standards for high-interrupting capacity fuses
• Applications: Industrial control panels, motor branch circuits, power distribution equipment
• AIC rating: 200kA@600V
• Connection: Bolt-In
• Barrels: 1
• Class Rating: T
• Weight: 5.19 lb

Product Identification

• UPC: 07945819081
• GTIN: 00079458190816
