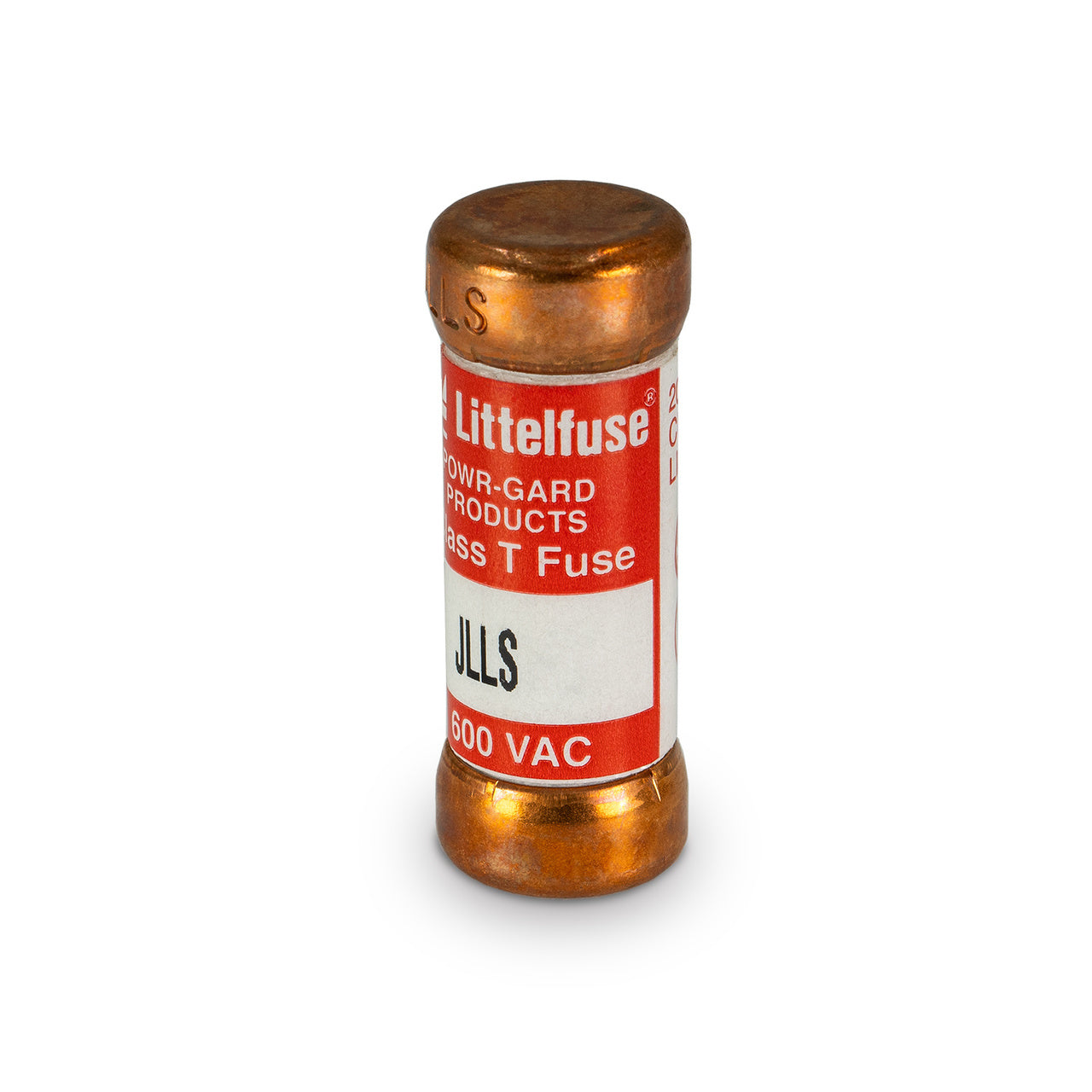

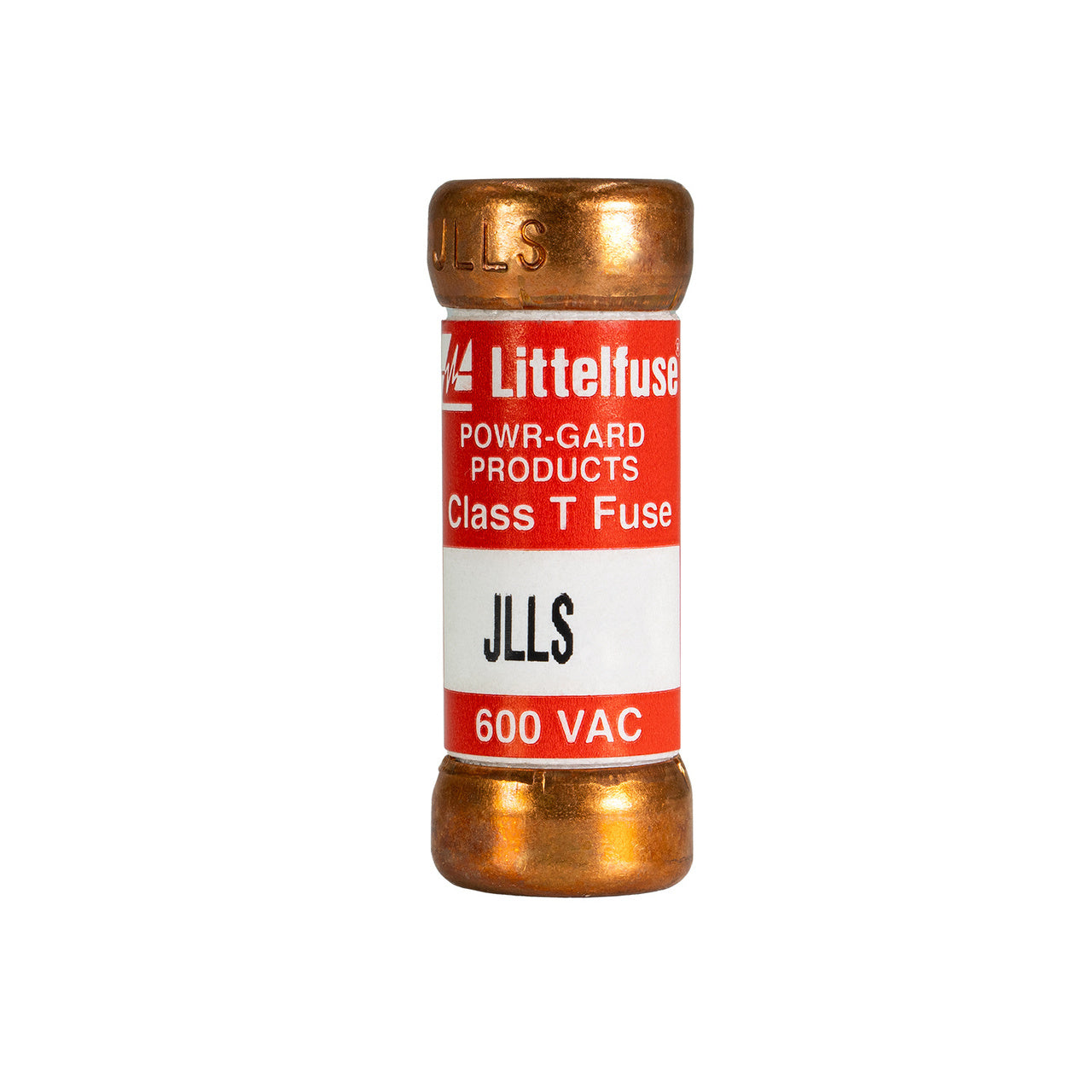

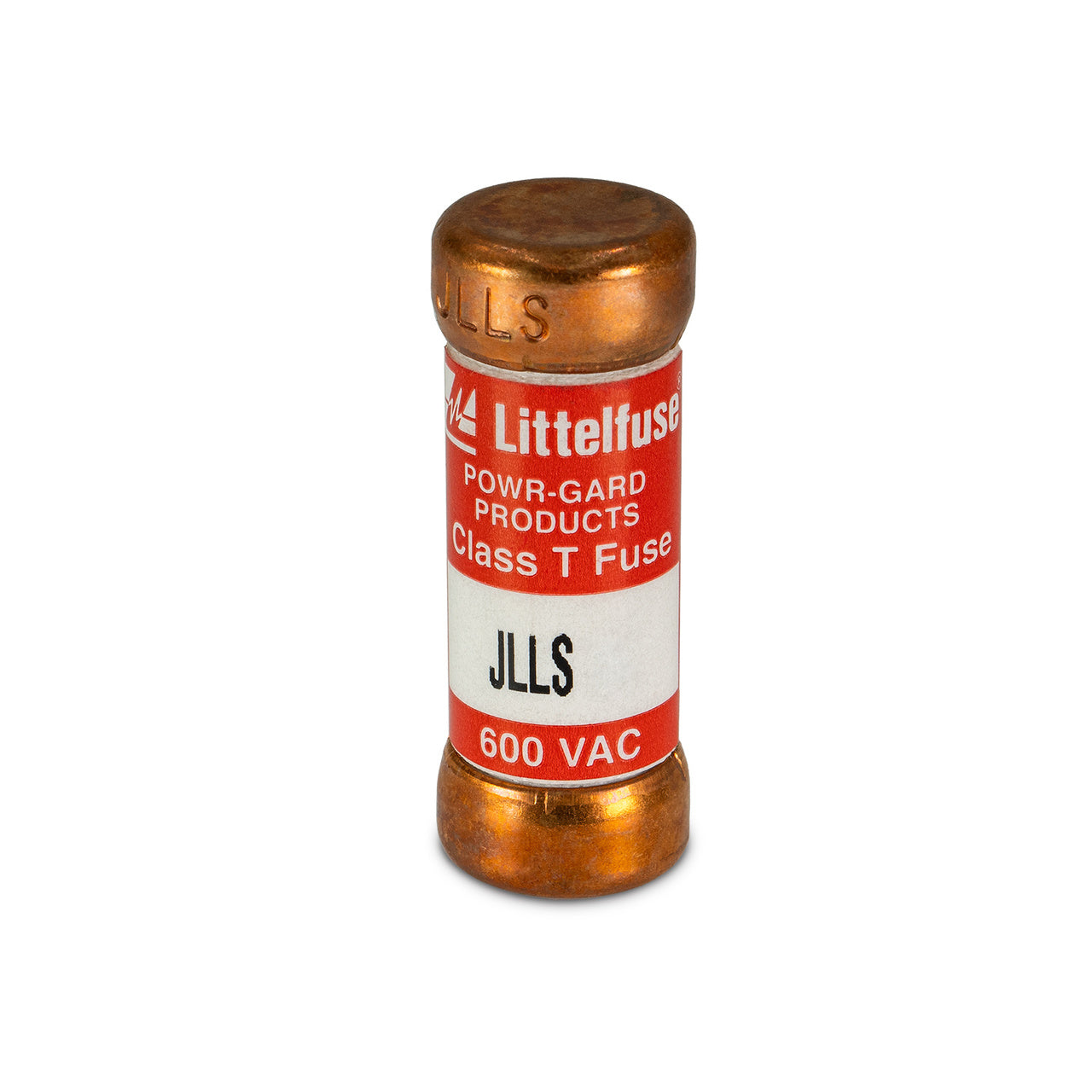

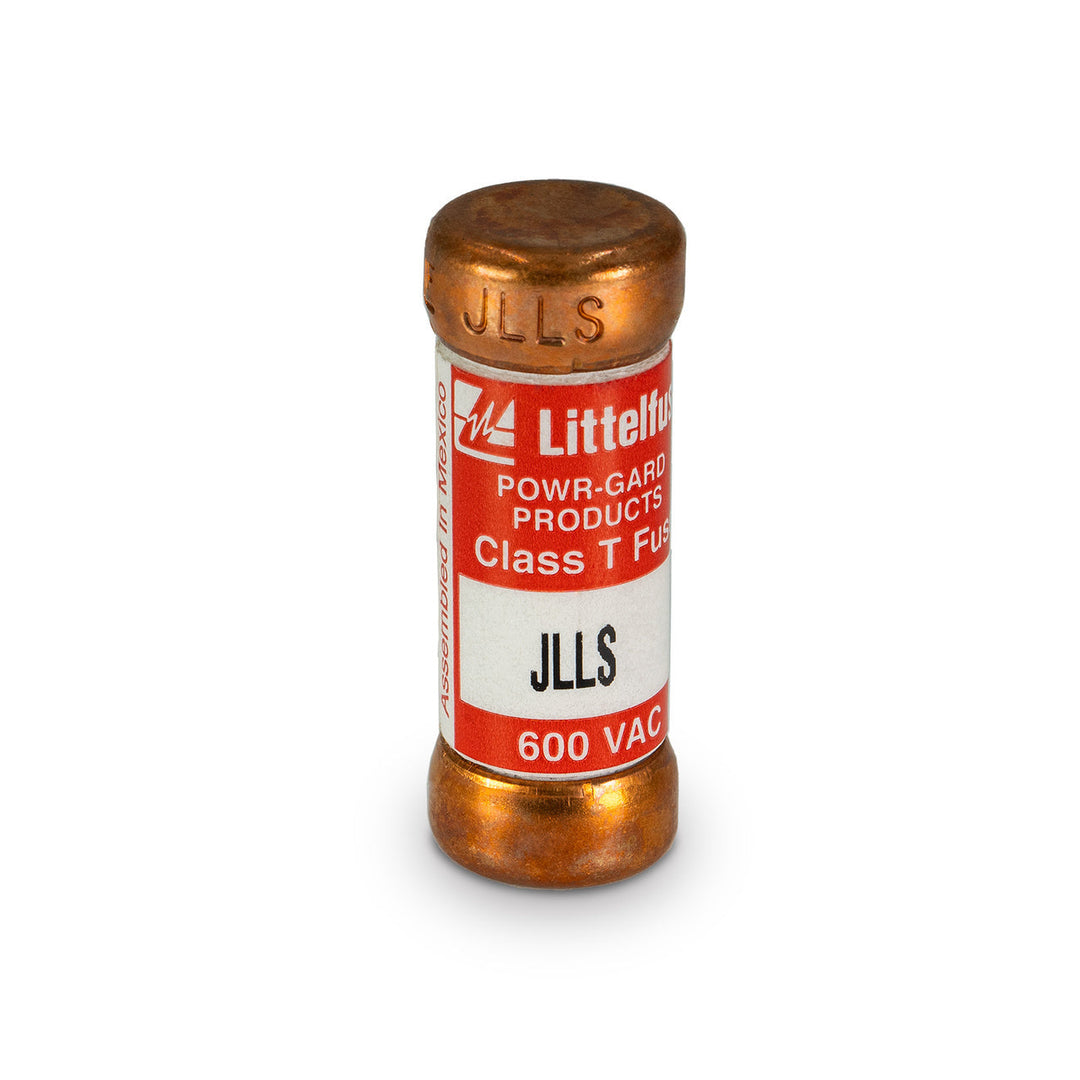

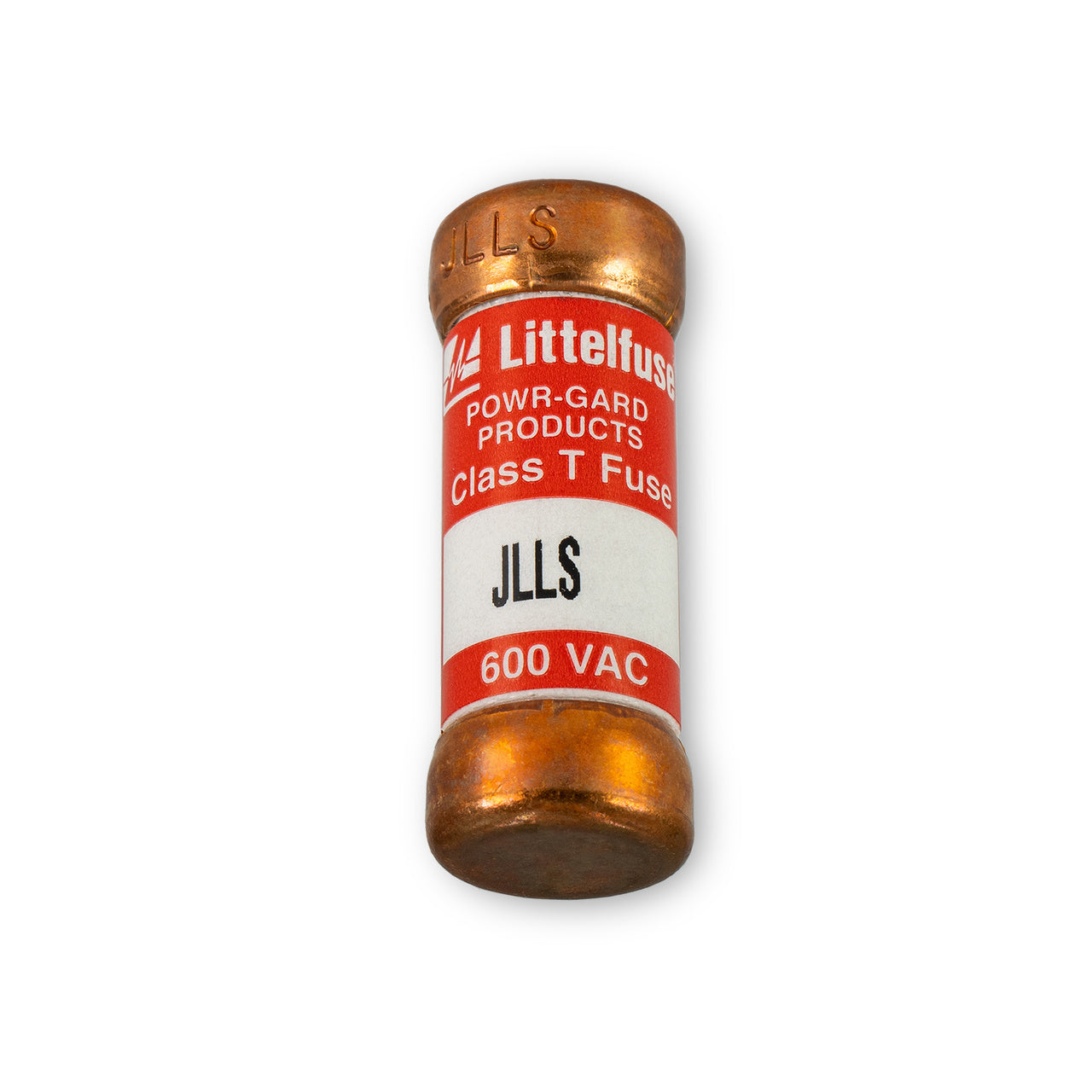

Littelfuse JLLS-030 - Class T Time-Delay Fuse 30A@600V (200kA AIC)

Littelfuse JLLS-030 is a low-voltage time-delay fuse designed for circuit protection in industrial power distribution systems. It features a 600V AC/DC voltage rating and 30A current capacity with a 200kA interrupting rating at 600V for reliable short-circuit protection. The compact 0.28-inch diameter ferrule design with single-barrel construction meets Class T standards for high-performance applications. UL-recognized and industry-compliant, this Powr-Gard series fuse is commonly used in motor control centers, transformers, and feeder circuits requiring time-delay characteristics.

Key Features & Specifications

• Type: JLLS time-delay fuse with ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 0.28" diameter
• Standards: UL Class T
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Class Rating: T

Product Identification

• UPC: 07945819073
• GTIN: 00079458190731
