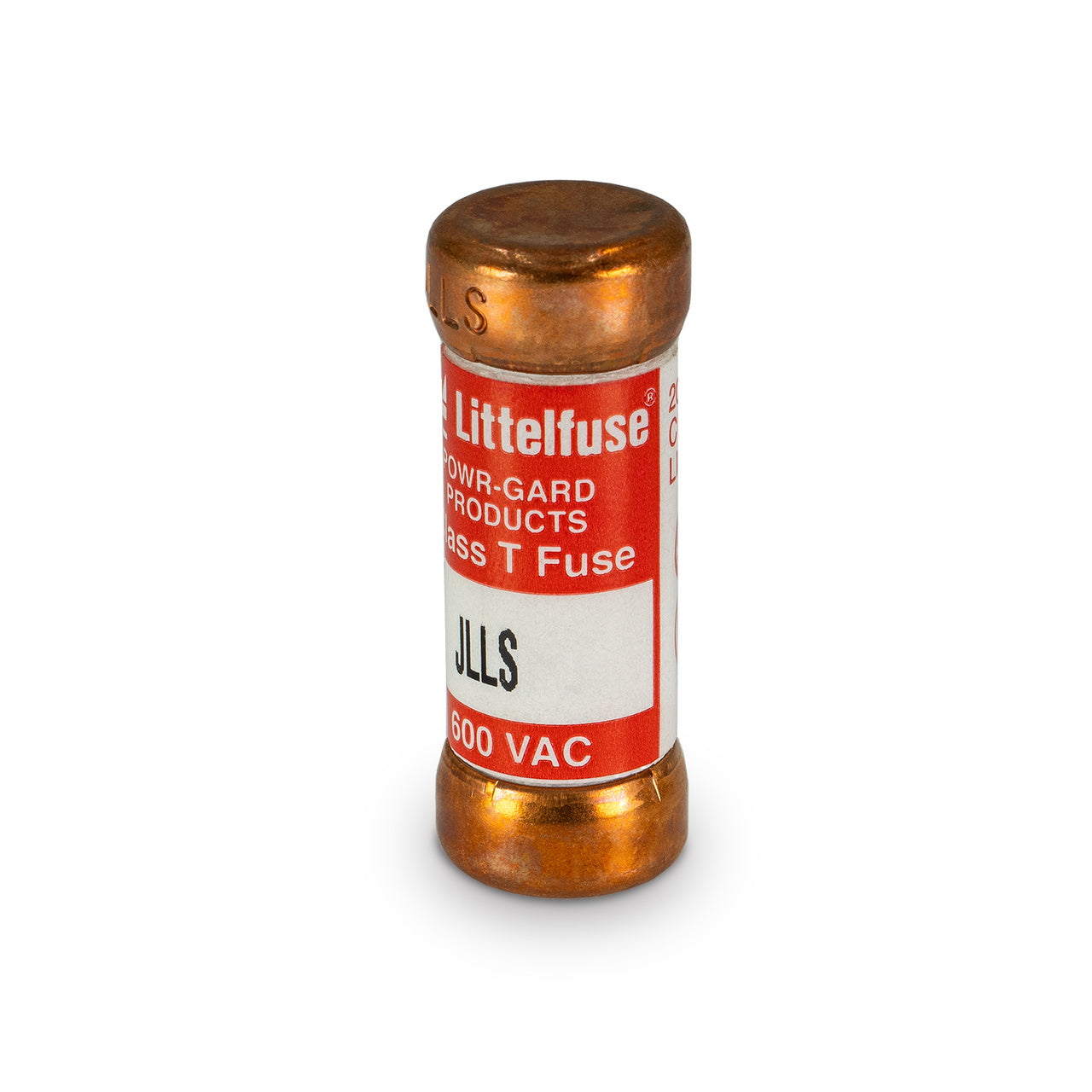

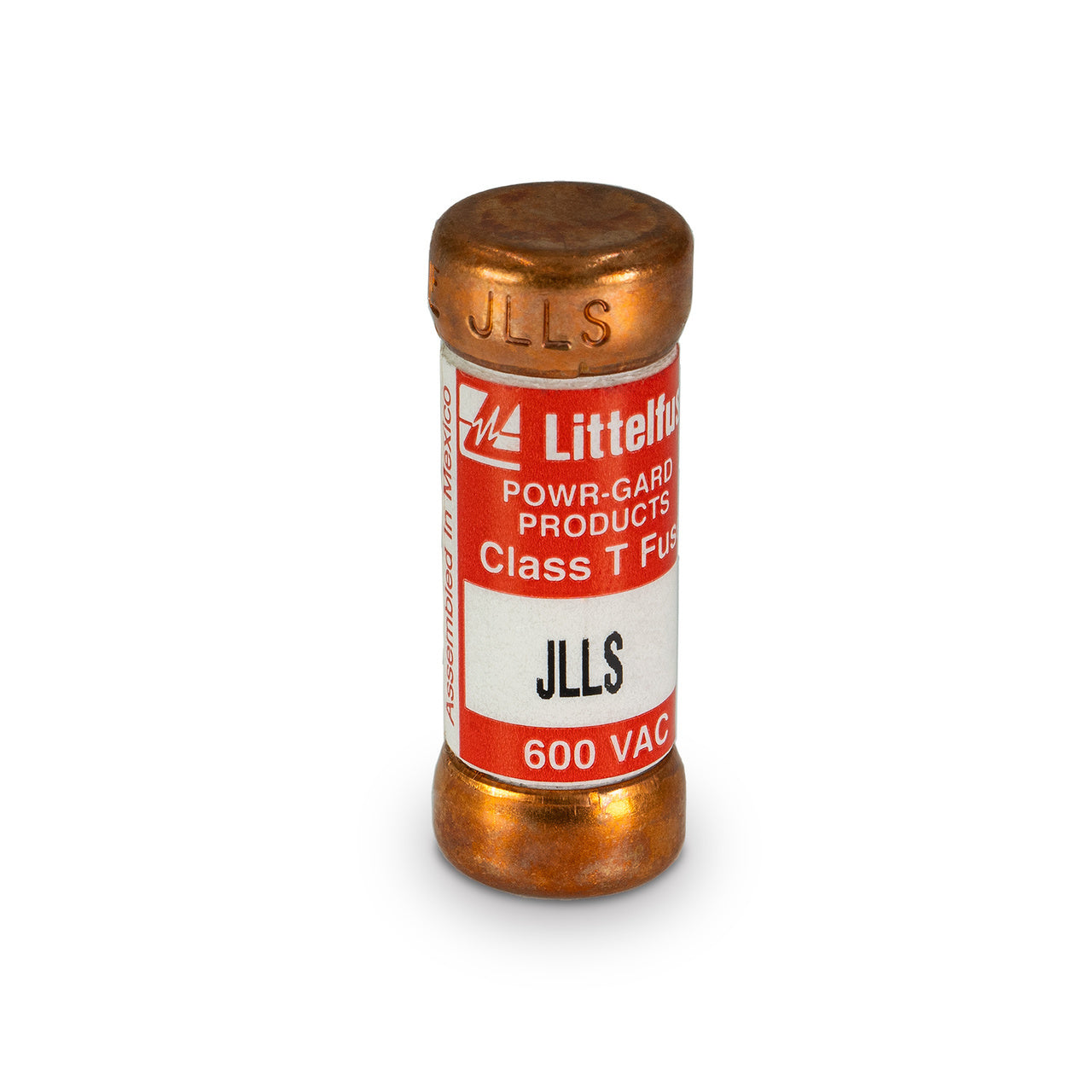

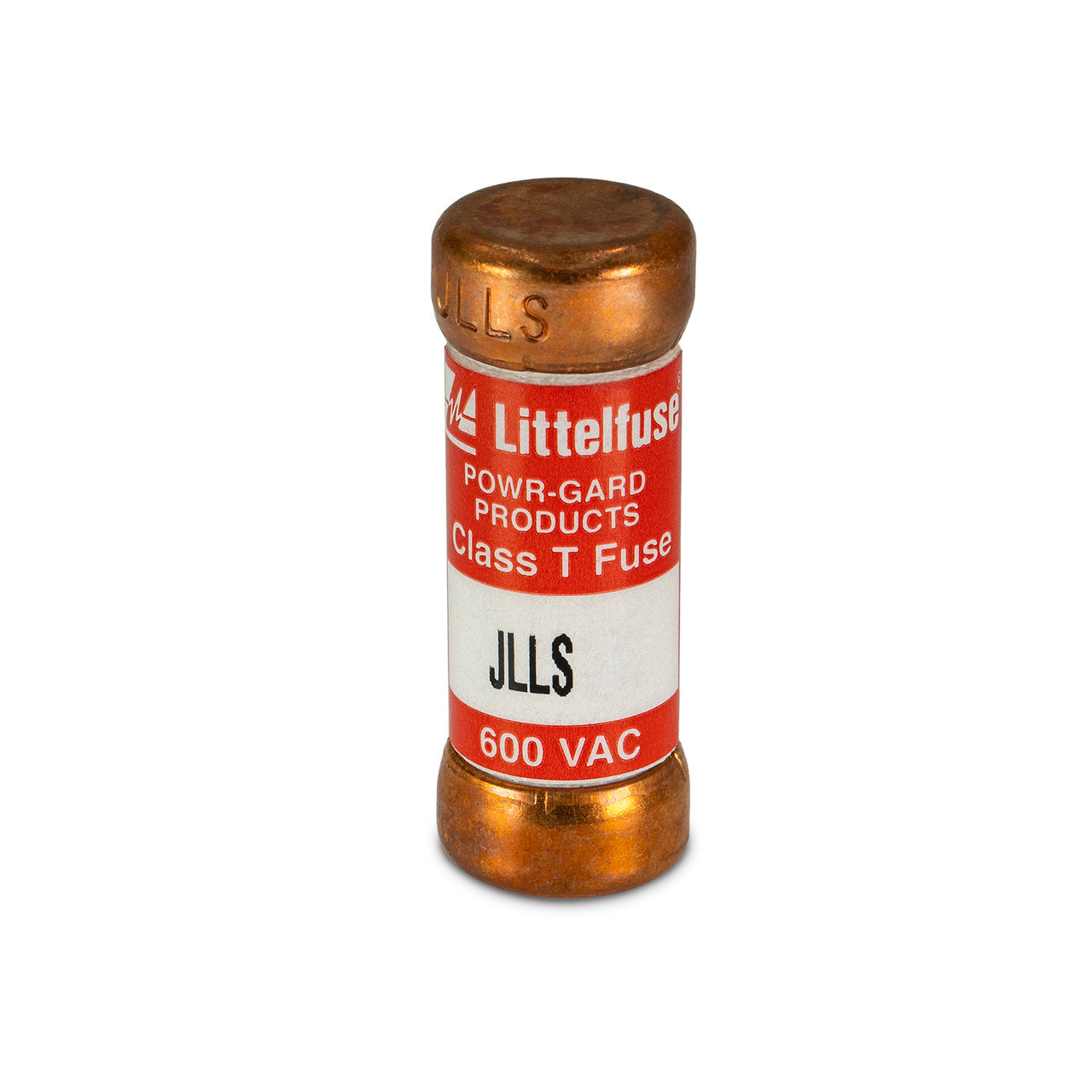

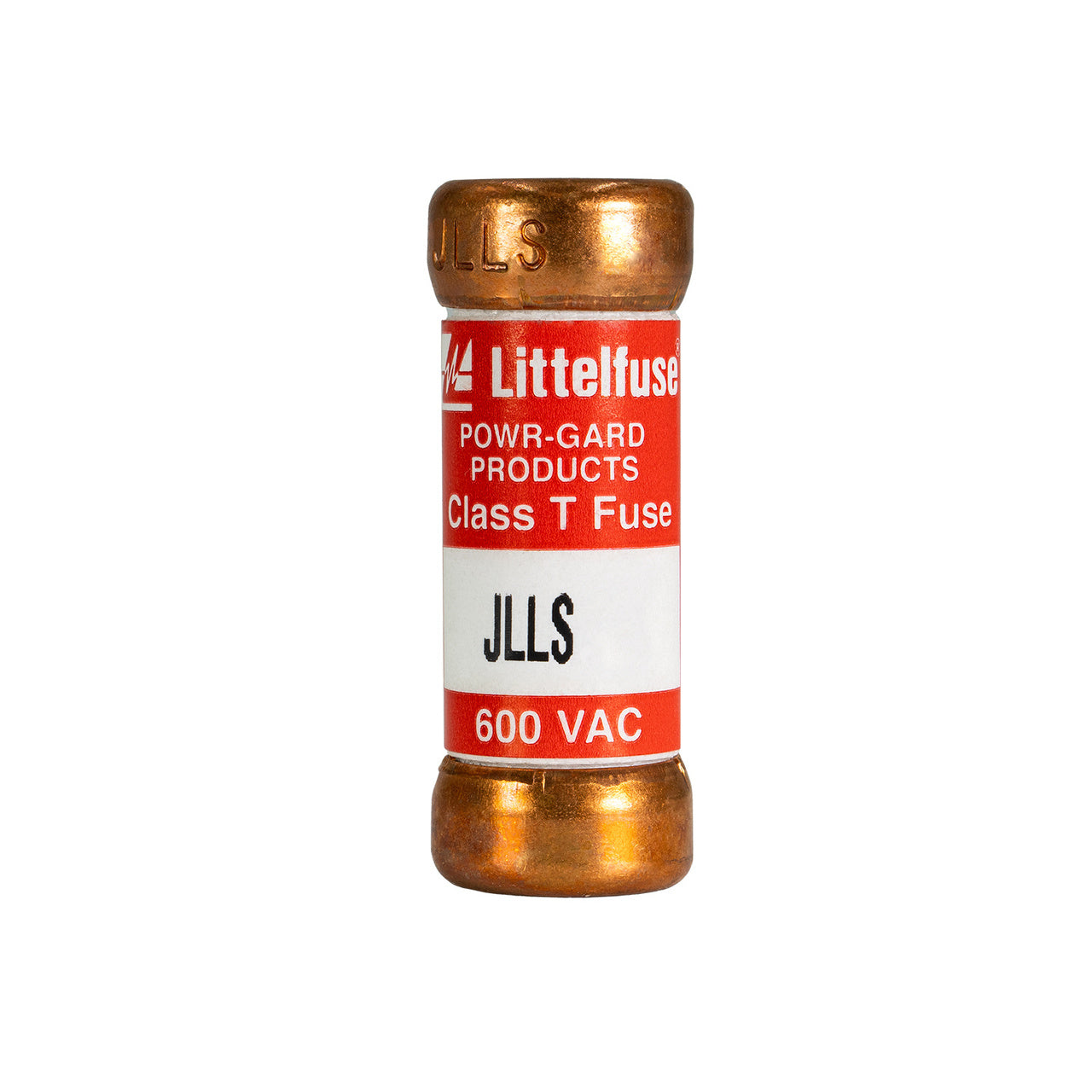

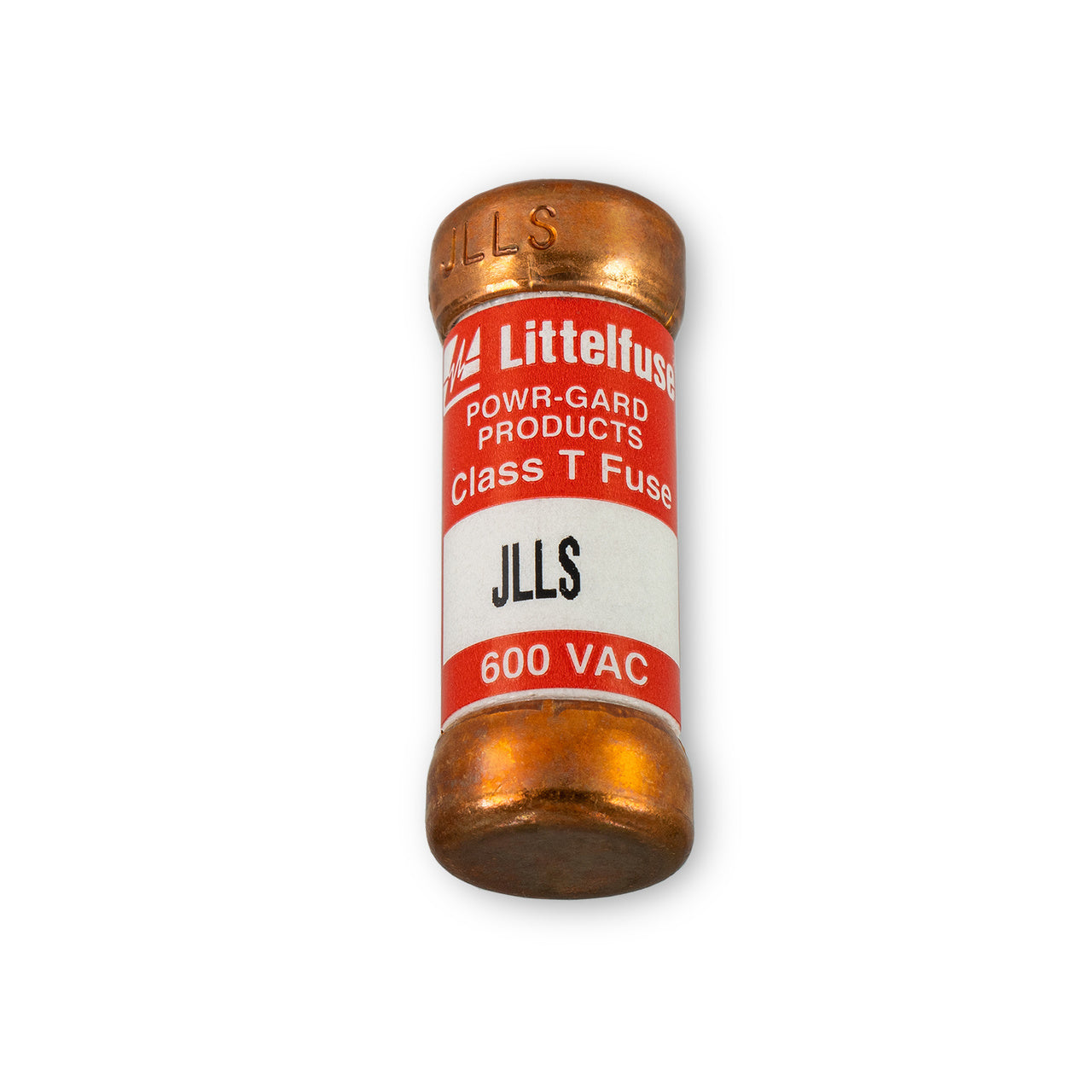

Littelfuse JLLS-025 - Class T Time-Delay Fuse 25A 600V (200kA AIC)

Littelfuse JLLS-025 is a time-delay, low voltage fuse from the Powr-Gard family designed to provide reliable circuit protection against overcurrent conditions in industrial applications. It features a 25A current rating and 600V voltage rating with a high 200kA interrupting capacity at 600V for robust fault protection. The fuse employs a single-barrel ferrule connection design with a compact 0.28-inch diameter construction and weighs 5.19 lb, built to Class T standards for fast-acting performance. This unit carries UL Listed and CSA Certified approvals, ensuring compliance with North American safety standards for industrial power distribution systems, motor protection circuits, and electrical equipment requiring time-delay fuse characteristics.

Key Features & Specifications

• Type: JLLS time-delay low voltage fuse, single barrel ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 25A
• Dimensions: 0.28-inch diameter
• Standards: UL Listed, CSA Certified
• Applications: Industrial power distribution, motor protection circuits
• AIC rating: 200kA@600V
• Class Rating: T
• Barrels: 1
• Connection: Ferrule
• Certification: UL Listed, CSA Certified
• Weight: 5.19 lb

Product Identification

• UPC: 07945819072
• GTIN: 00079458190724
