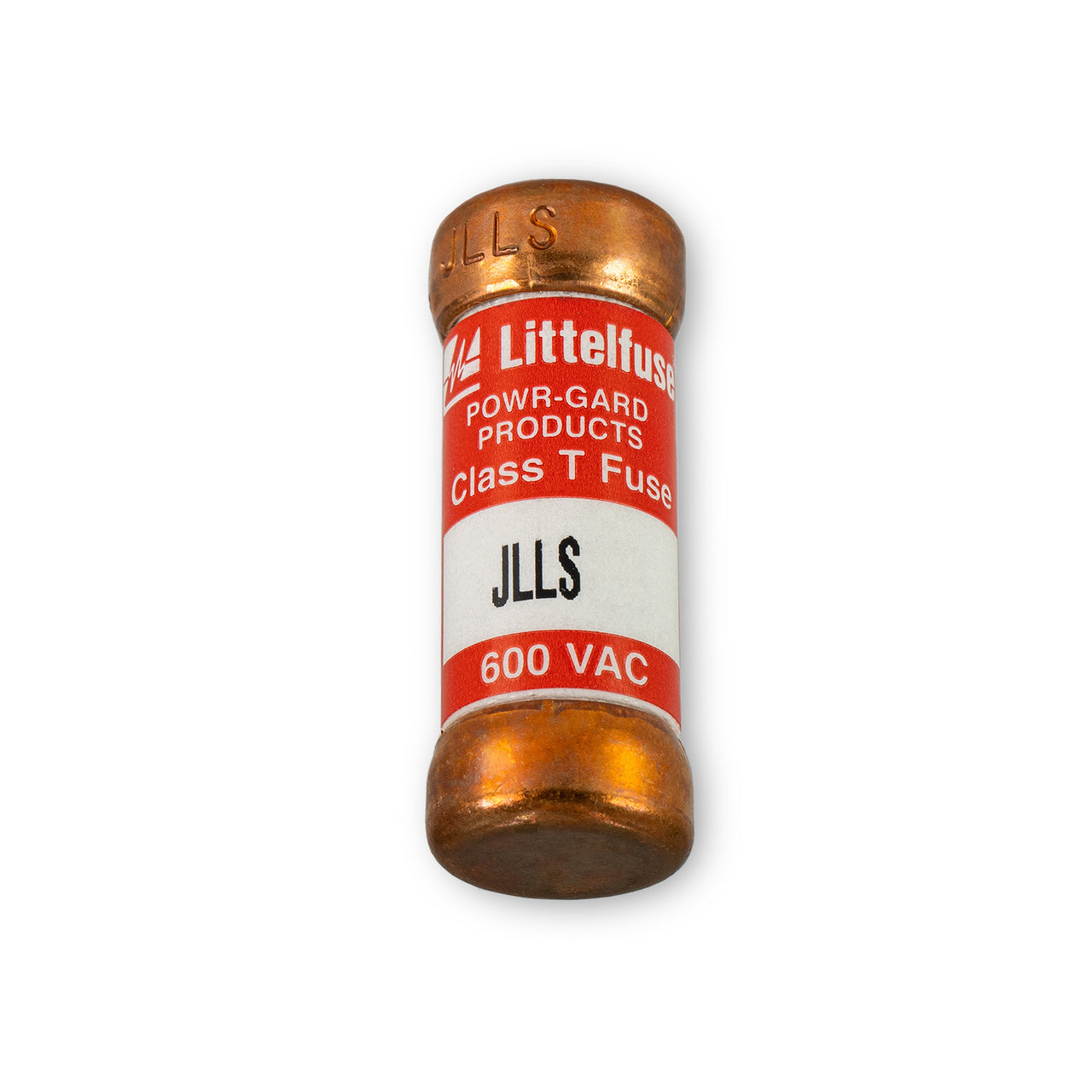

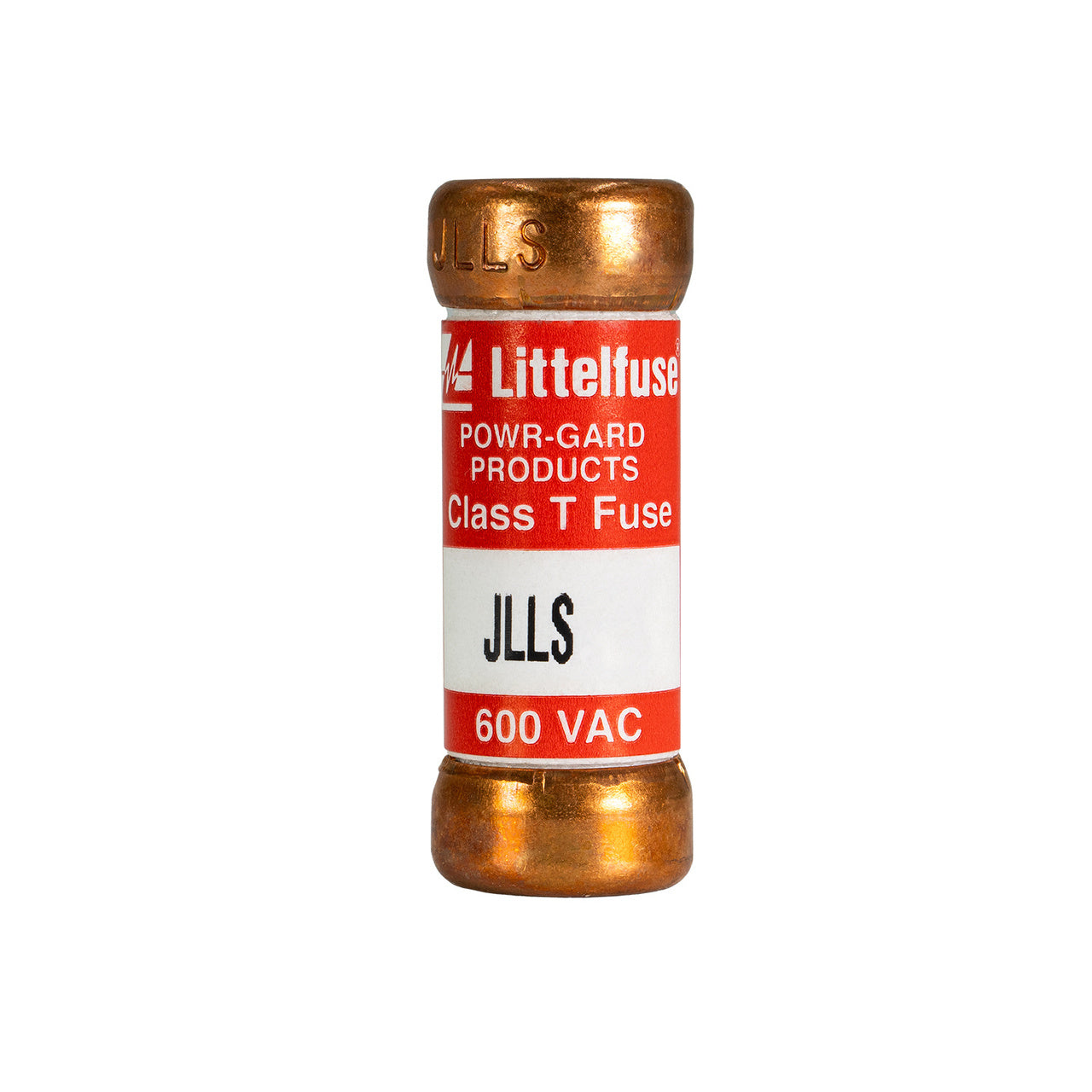

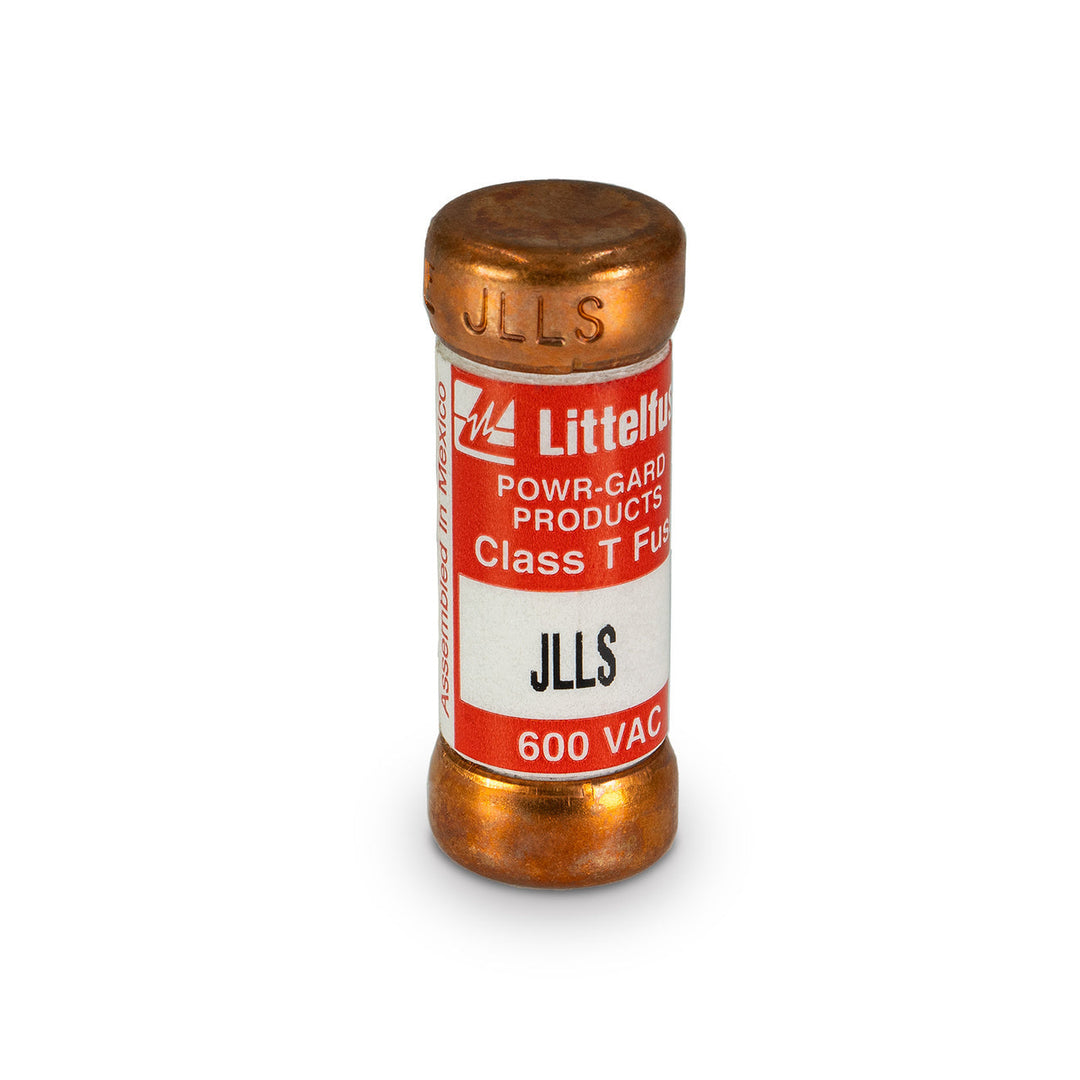

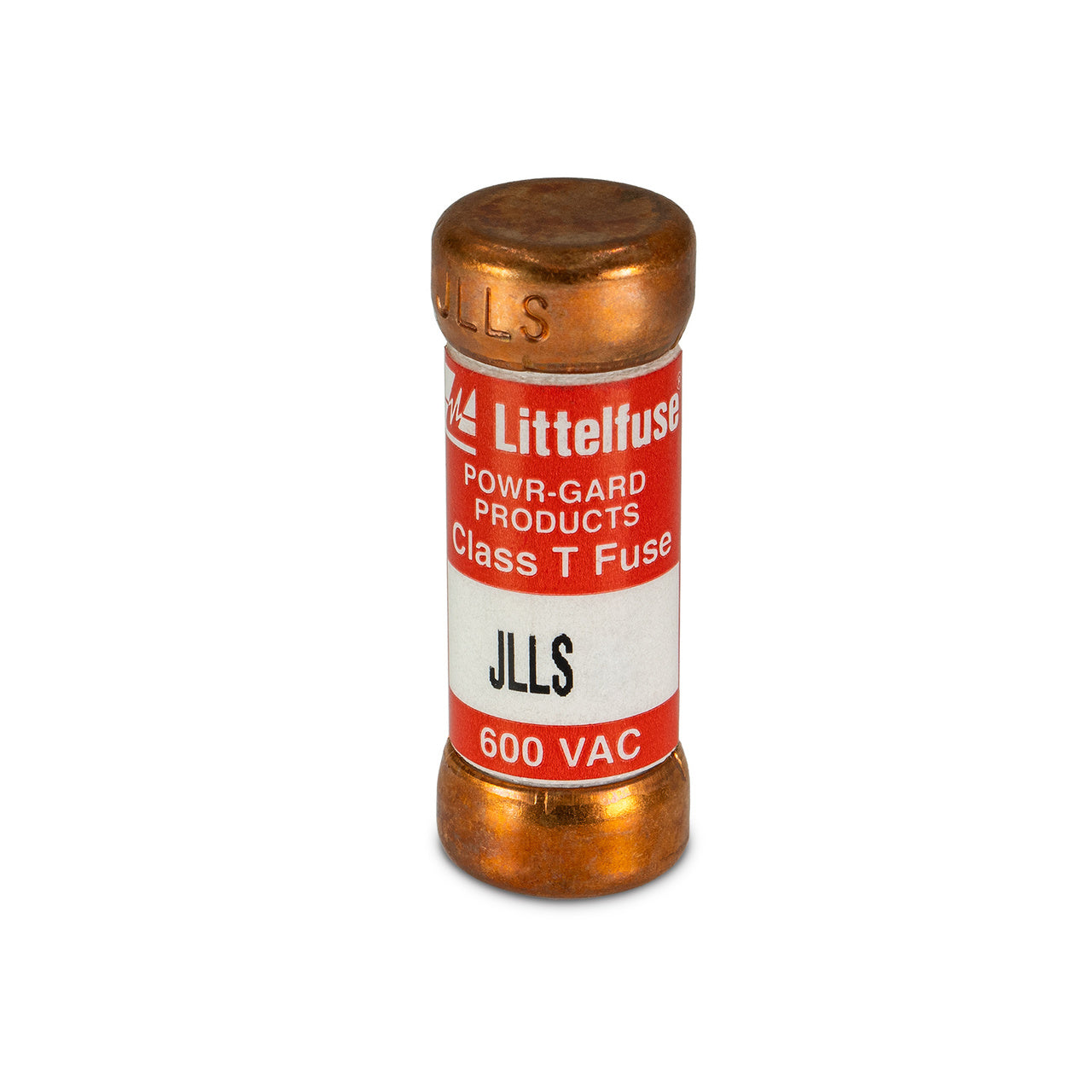

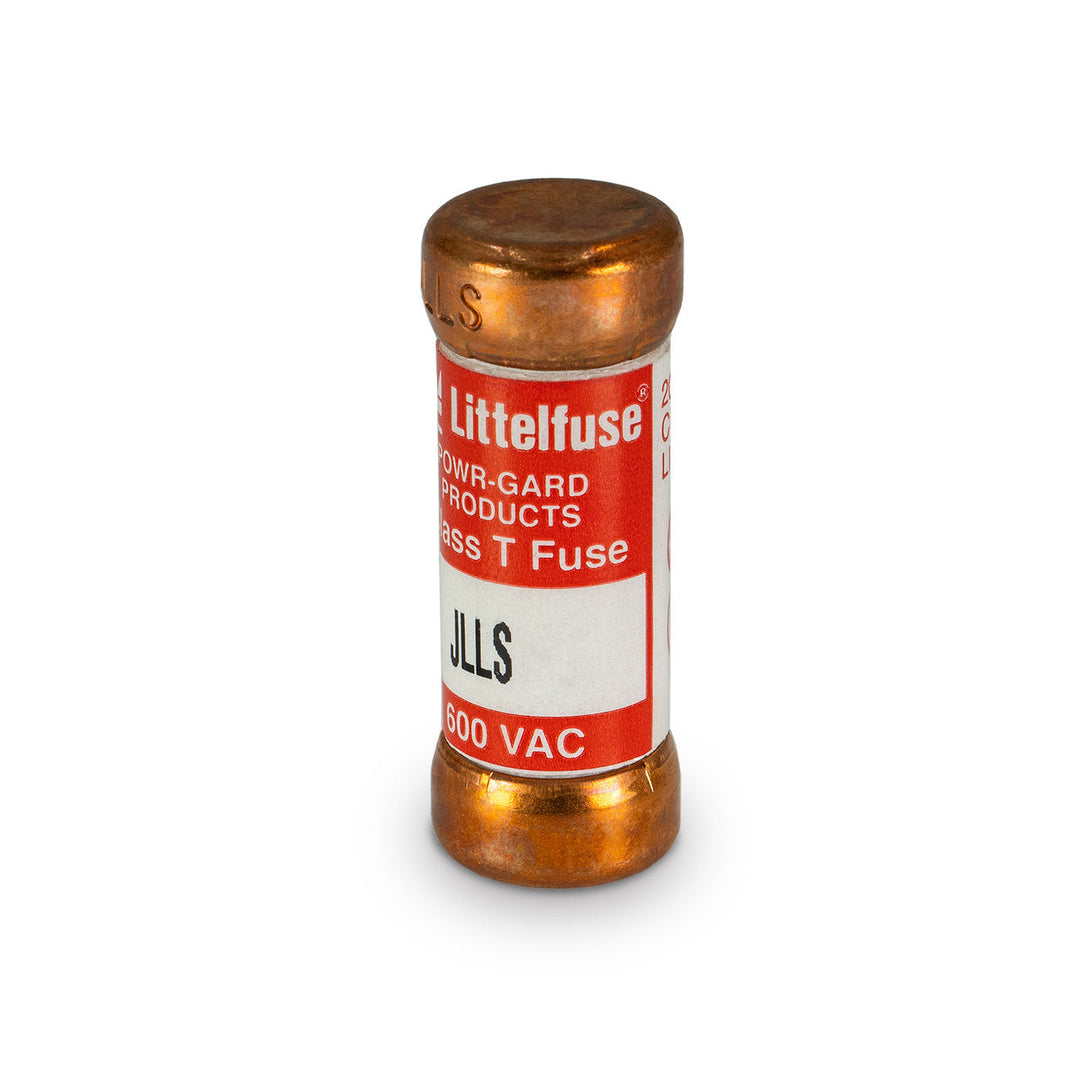

Littelfuse JLLS-015 - Class T Time-Delay Fuse 15A 600V (200kA AIC)

Littelfuse JLLS-015 is a time-delay, low voltage fuse from the Powr-Gard family designed to provide reliable circuit protection against overcurrents and short-circuits in industrial applications. It features a 600V AC voltage rating and a 15A current rating, ensuring compatibility with a wide range of electrical systems. The fuse is constructed with a single-barrel design featuring ferrule connections and a compact 0.28-inch diameter, contributing to a robust physical profile. It complies with industry standards for Class T fuses, recognized for their high interrupting capacity. Typical applications include the protection of motors, transformers, and feeders where high fault current availability is present.

Key Features & Specifications

• Type: JLLS, Time-Delay, Low Voltage Fuse, Single Barrel, Ferrule Connection
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 0.28 in Diameter
• Standards: Class T
• Applications: Motor, Transformer, and Feeder Circuit Protection
• AIC rating: 200kA @ 600V AC
• Weight: 5.19 lb

Product Identification

• UPC: 07945819068
• GTIN: 00079458190687
