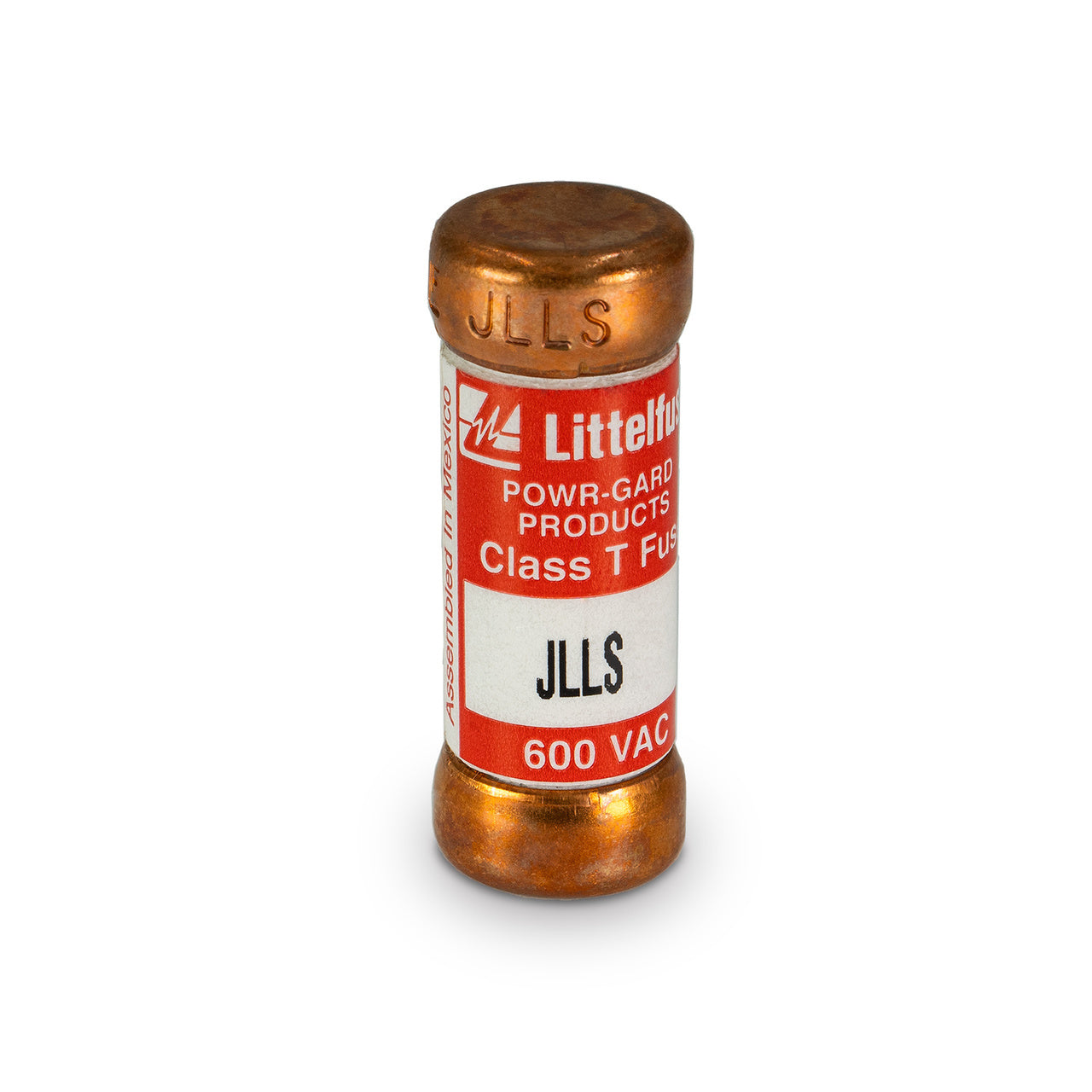

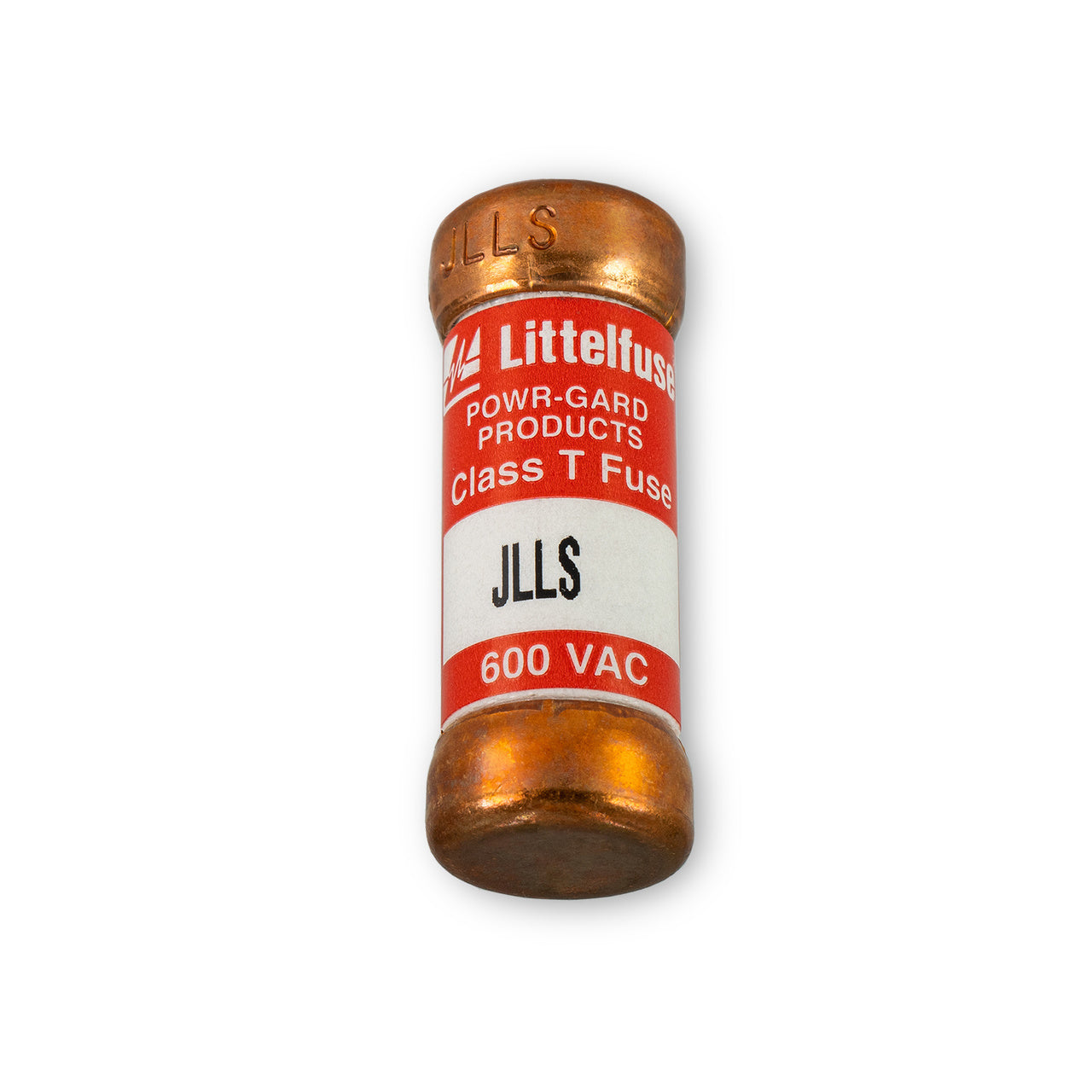

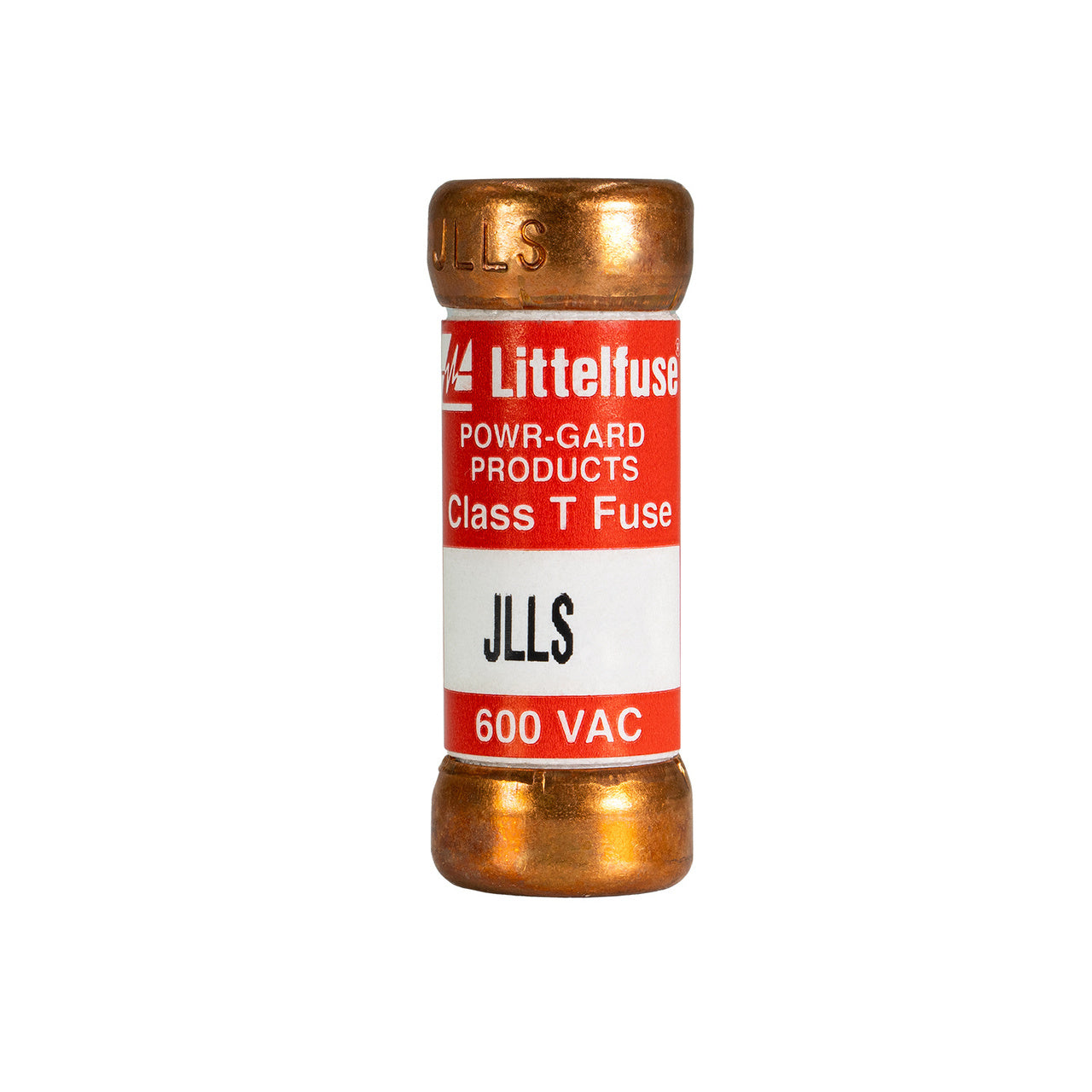

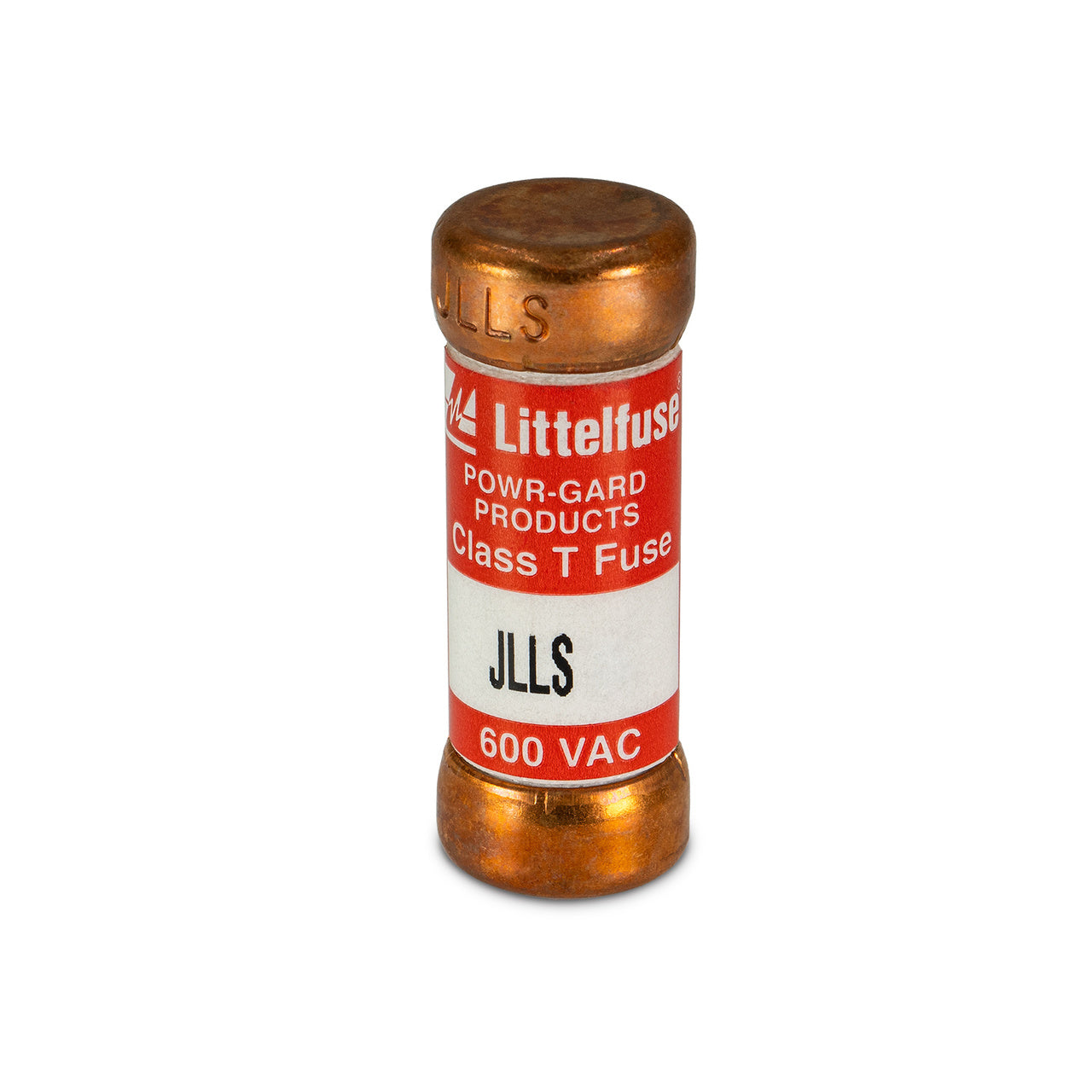

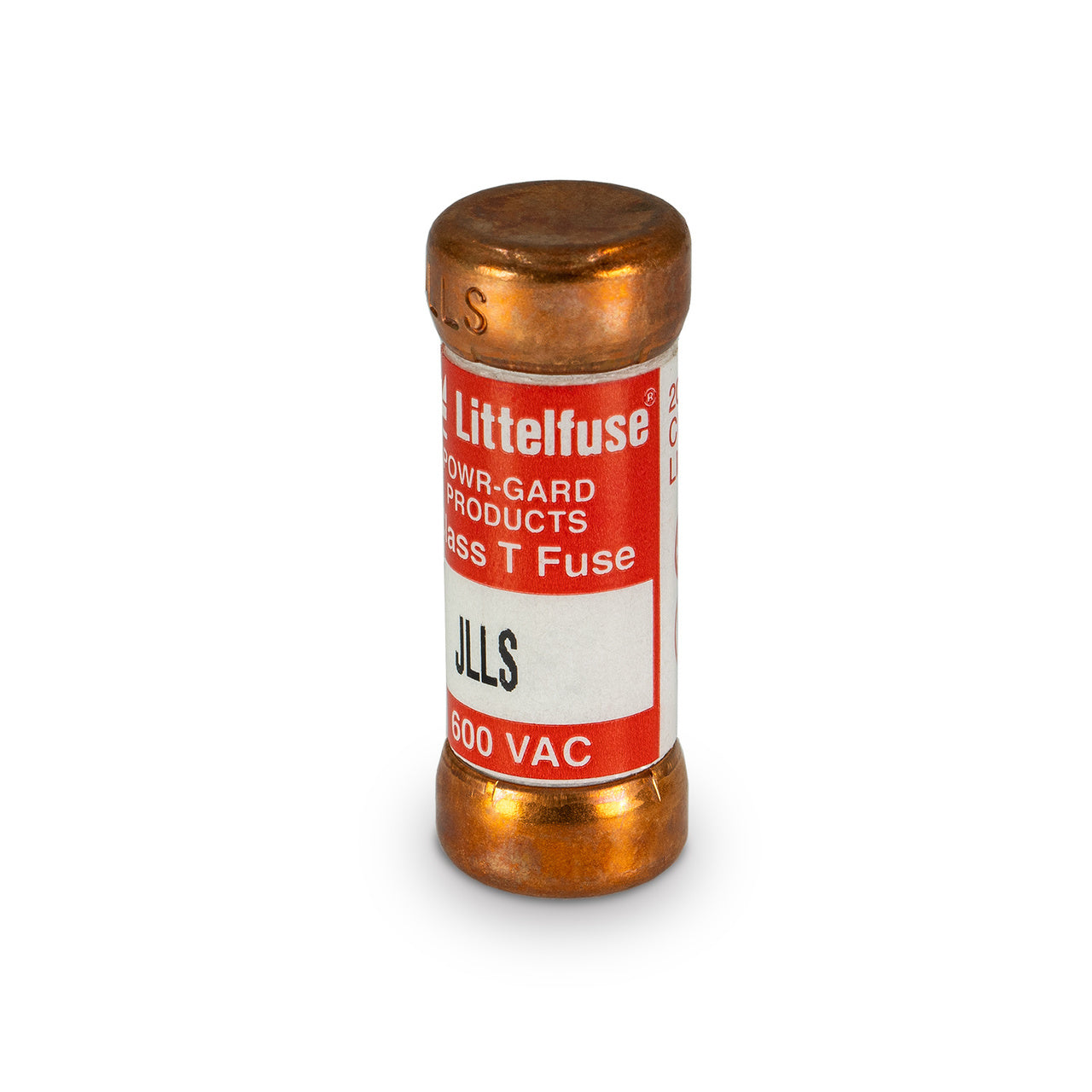

Littelfuse JLLS-010 - T-Class Fuse 10A 600V (200kA AIC)

Littelfuse JLLS-010 is a low voltage current-limiting fuse from the Powr-Gard family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 10A current rating and 600V voltage rating with a high 200kA interrupting capacity at 600V for effective short-circuit protection. The fuse employs a single-barrel ferrule connection design with a compact 0.28-inch diameter and T-class construction for time-delay characteristics. This fuse meets industry standards for current-limiting performance and is UL recognized for safety compliance. Typical applications include motor branch circuits, transformers, and power distribution equipment where coordinated protection is required.

Key Features & Specifications

• Type: JLLS time-delay current-limiting fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 0.28-inch diameter
• Standards: UL recognized, current-limiting design
• Applications: Motor protection, transformer circuits, power distribution systems
• AIC rating: 200kA@600V
• Connection: Ferrule
• Barrels: 1
• Class Rating: T
• Weight: 5.19 lb

Product Identification

• UPC: 07945819065
• GTIN: 00079458190656
