Littelfuse
Price
Save $45.25
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

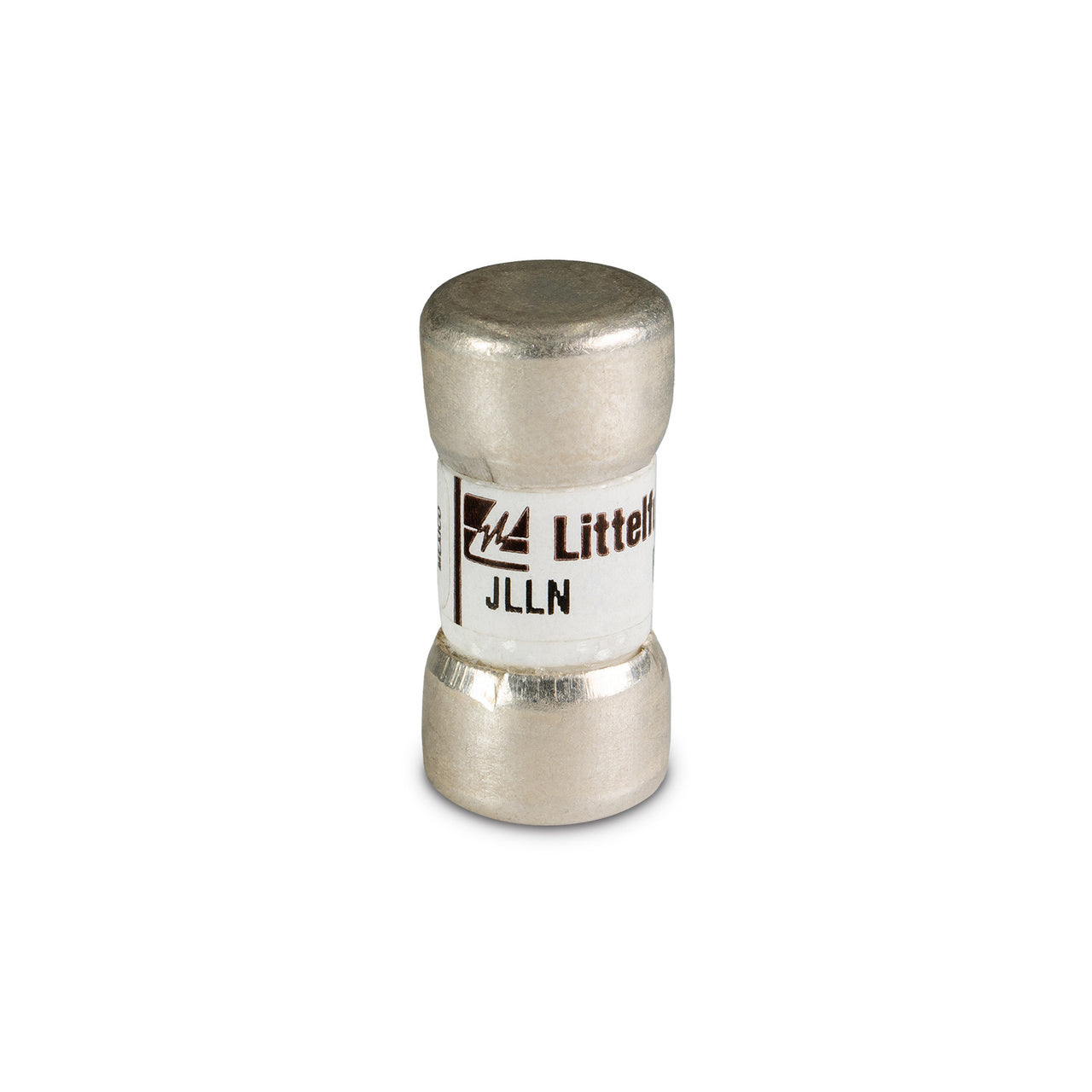

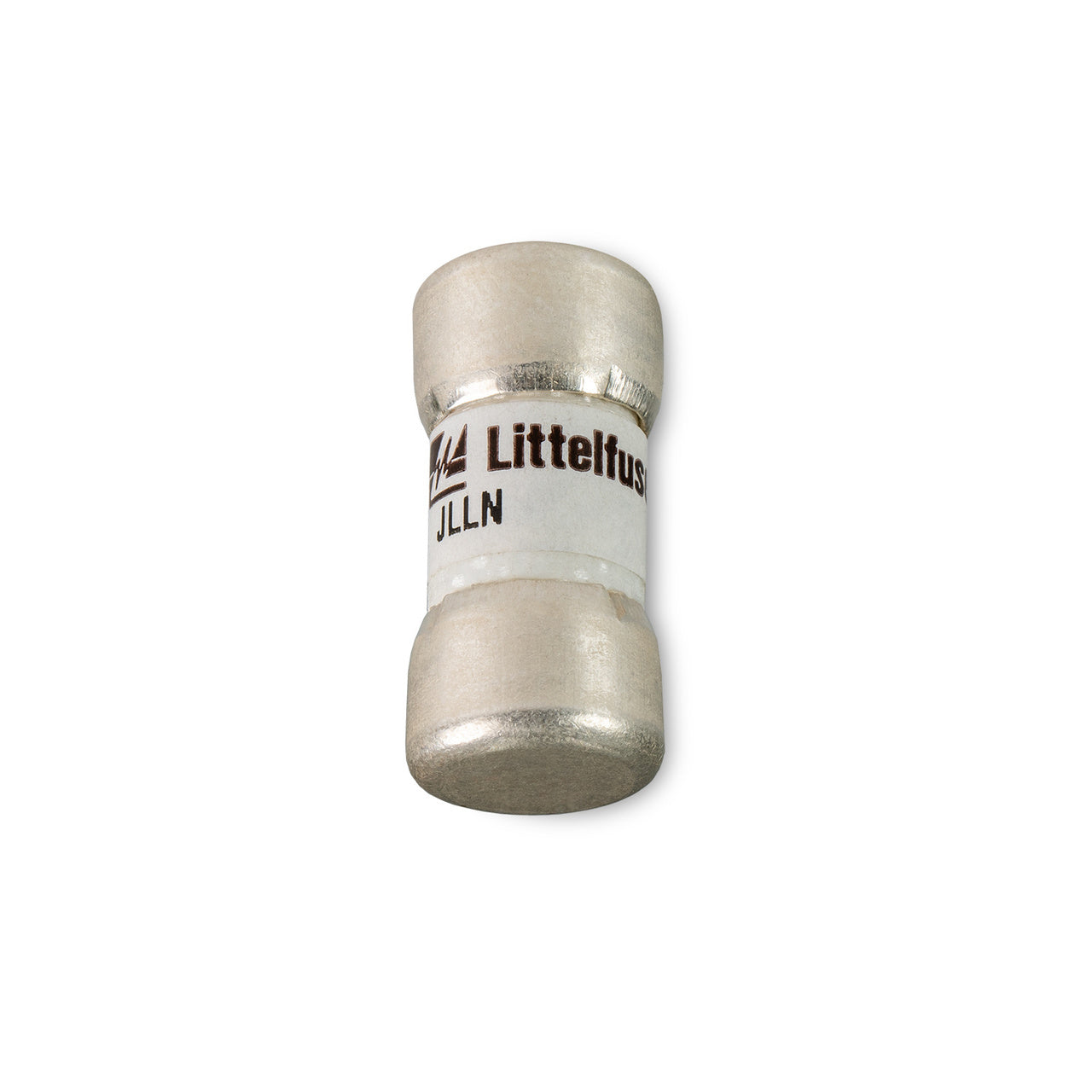

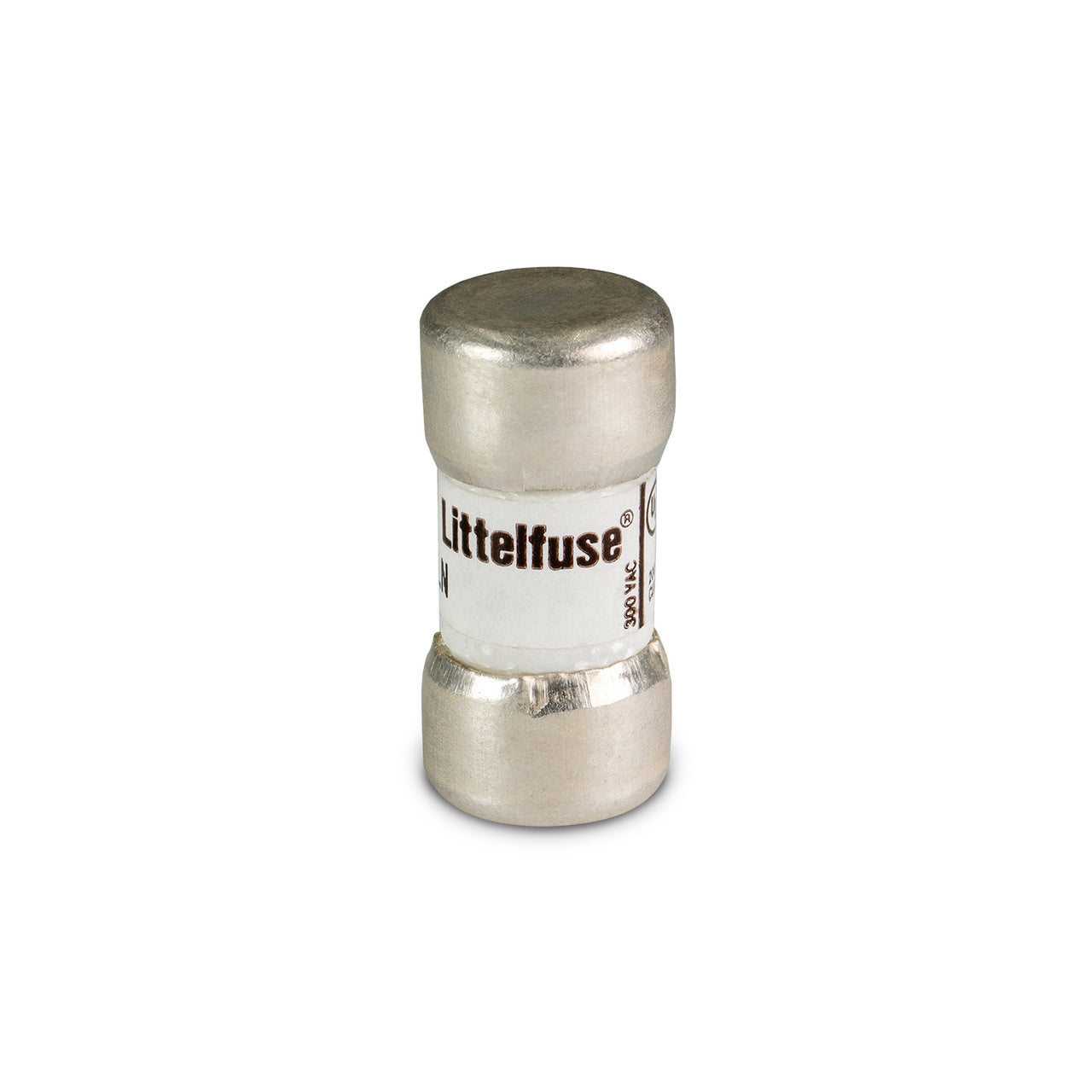

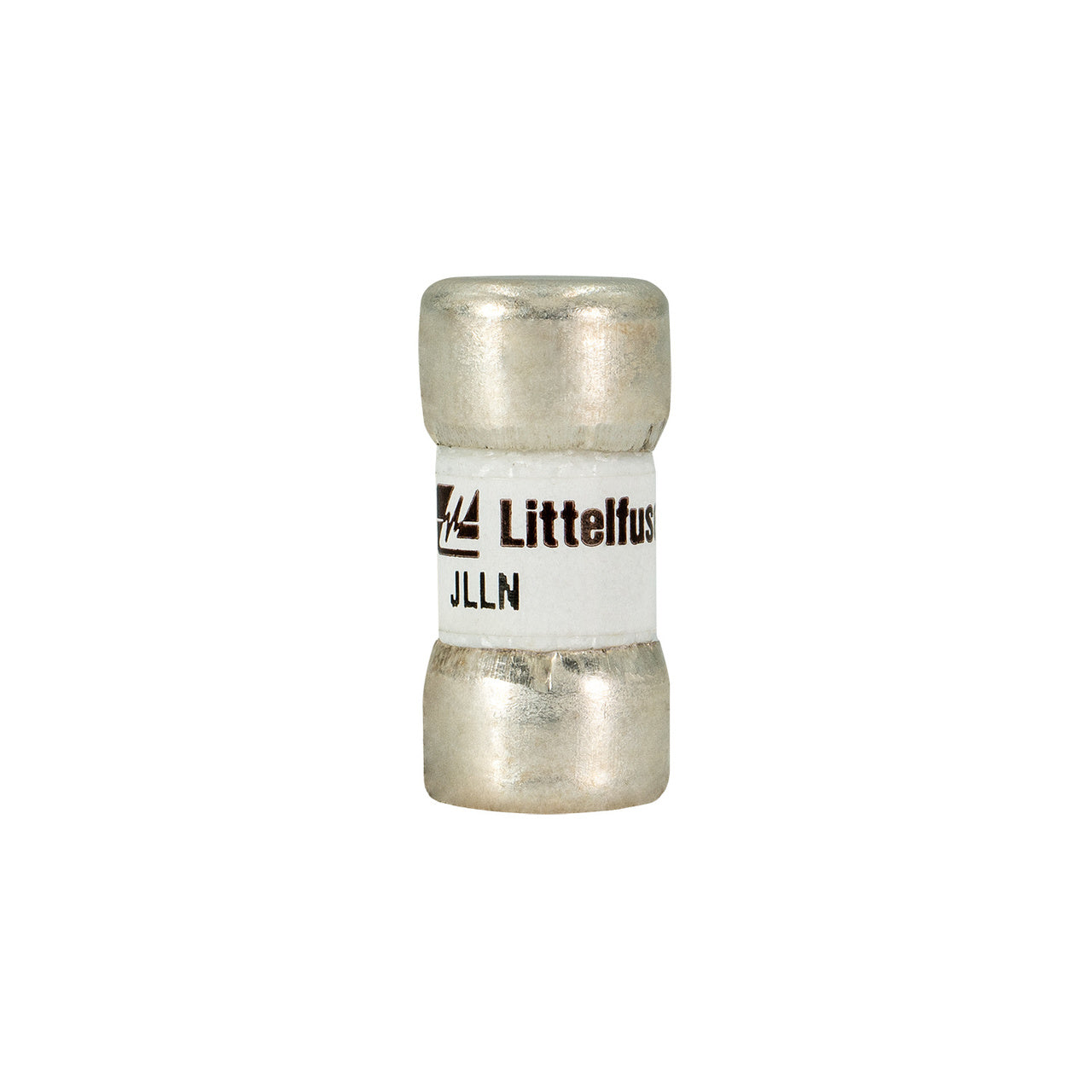

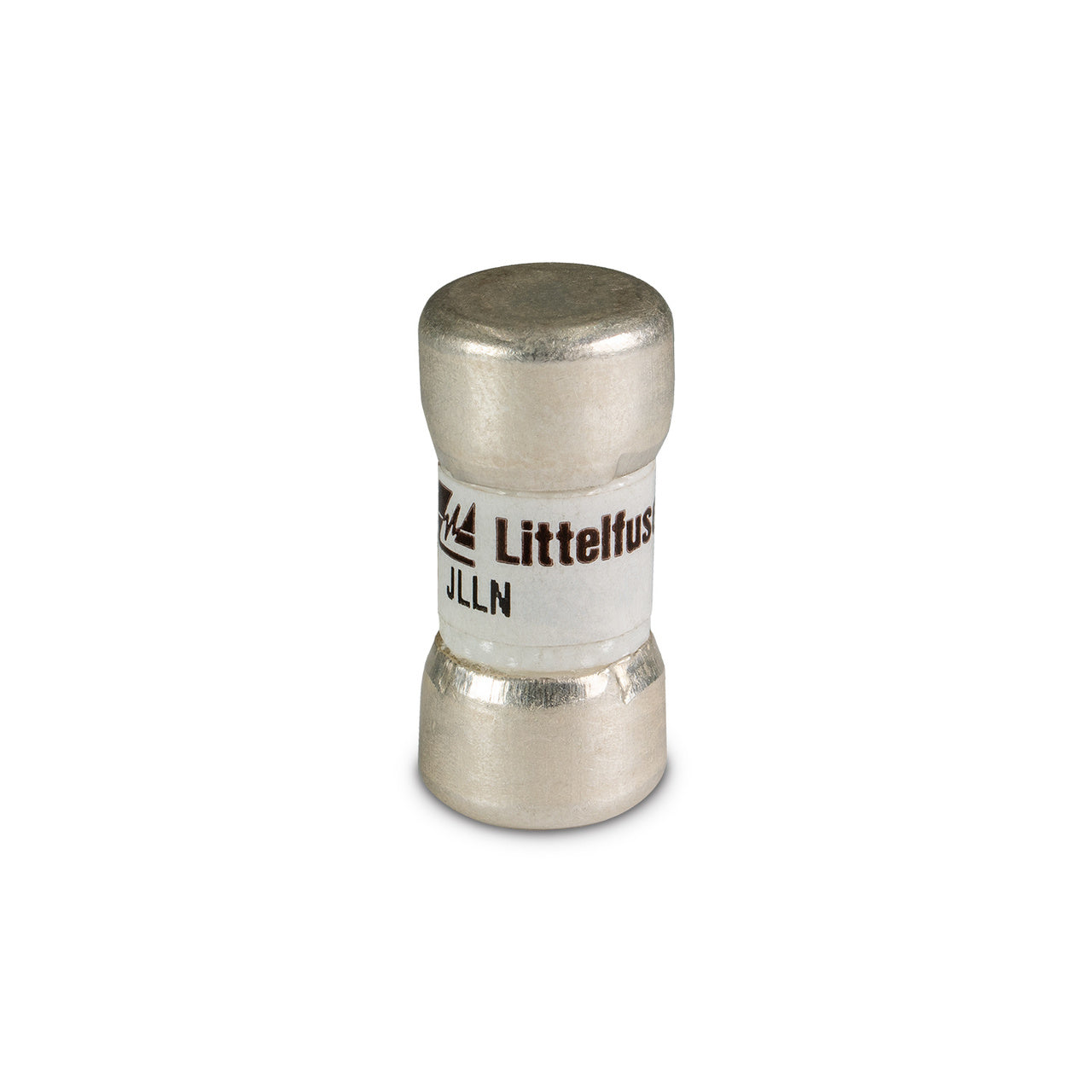

Littelfuse JLLN010 is a Class T low-voltage fuse designed for high-speed circuit protection in demanding electrical applications. It features a 300V AC voltage rating and 10A current rating with a compact ferrule connection design measuring 7/8" in length and 0.4" in diameter. The fast-acting (FA) fuse element provides reliable protection with a 200kA interrupting capacity at 300V AC, housed in a durable single-barrel construction. Certified to UL 248-15 Class T, CSA, CE, and RoHS standards, this fuse is commonly used in industrial control panels, power distribution systems, and equipment requiring high interrupting capacity protection.

Key Features & Specifications
  • Type: JLLN series fast-acting Class T fuse with ferrule terminals
  • Voltage Rating: 300V AC
  • Current Rating: 10A
  • Dimensions: 7/8" length x 0.4" diameter
  • Standards: UL 248-15 Class T, UL Listed, CSA Certified, CE, RoHS
  • Applications: Industrial control panels, power distribution, high-fault current protection
  • Class Rating: T
  • Connection: Ferrule
  • Barrels: 1
  • Velocity: FA (Fast Action)
  • AIC rating: 200kA@300Vac
  • Weight: 0.01 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 079458180657
  • GTIN: 00079458180657
