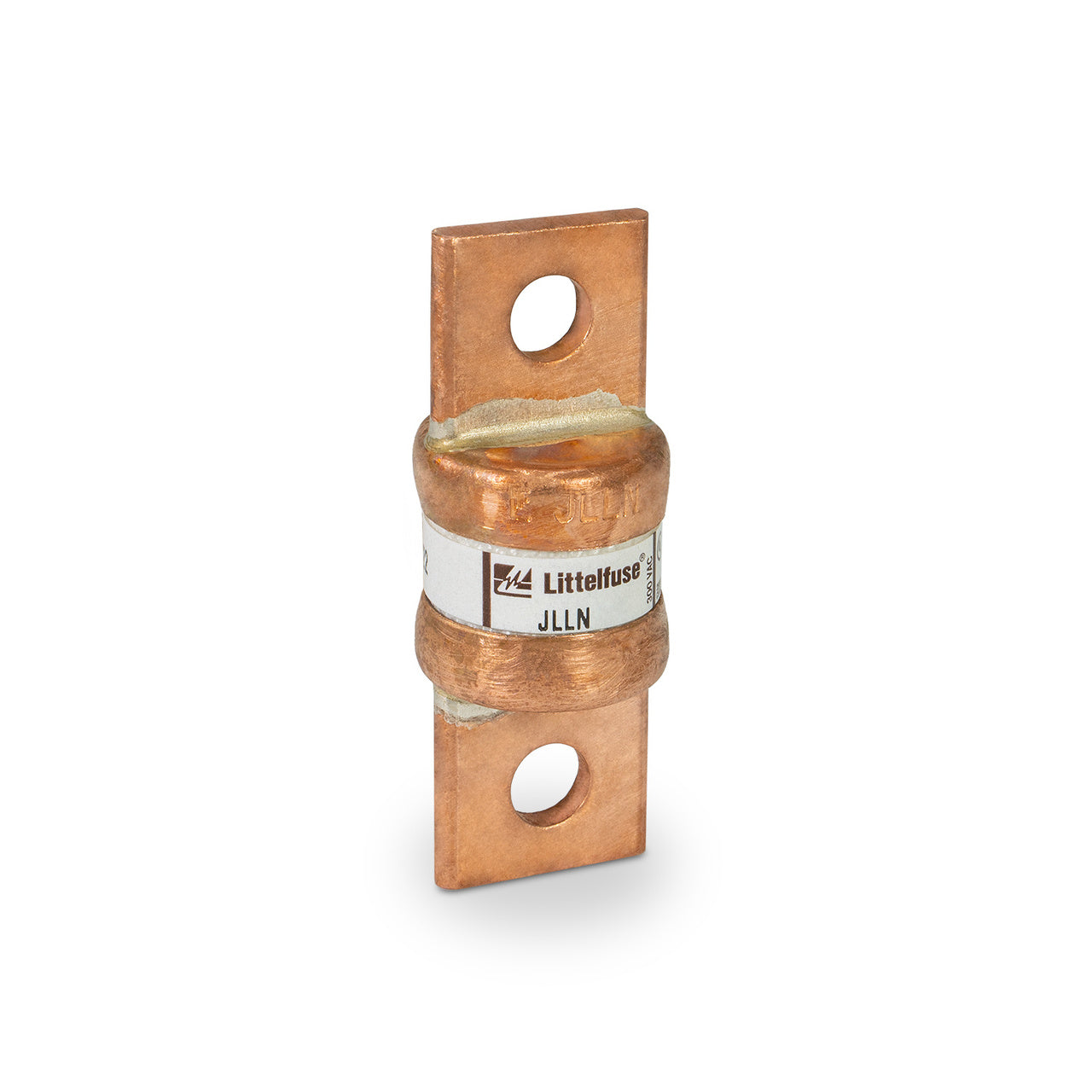

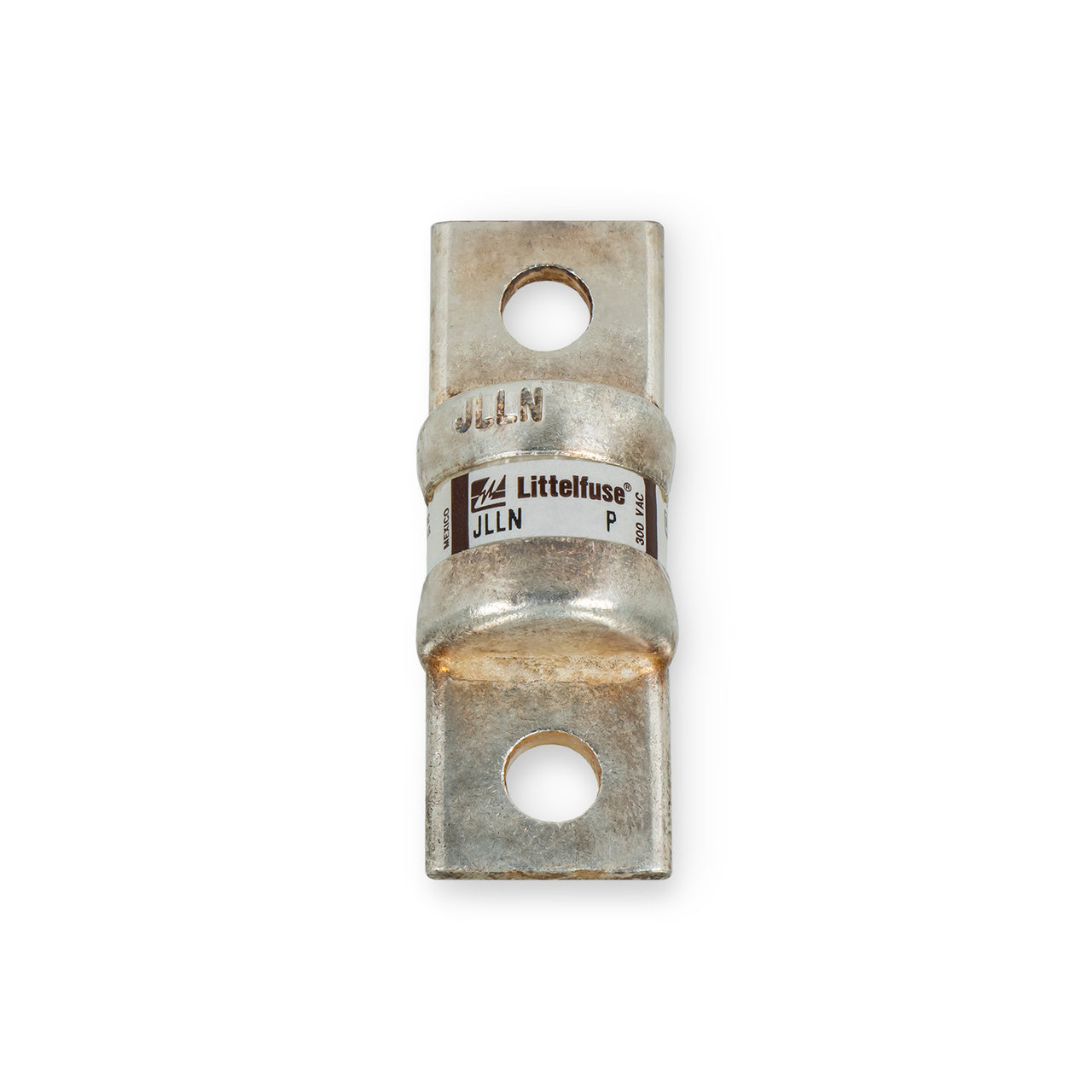

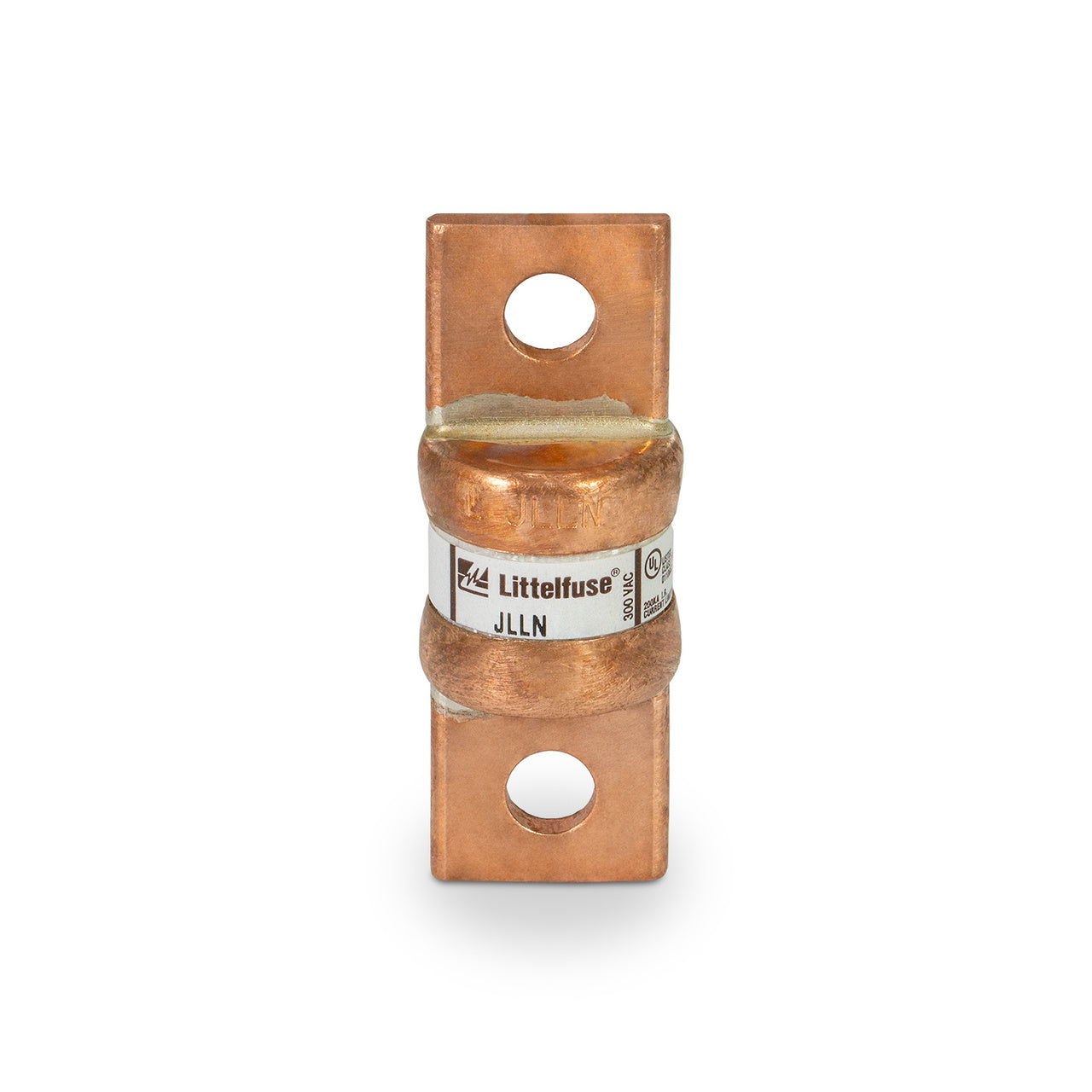

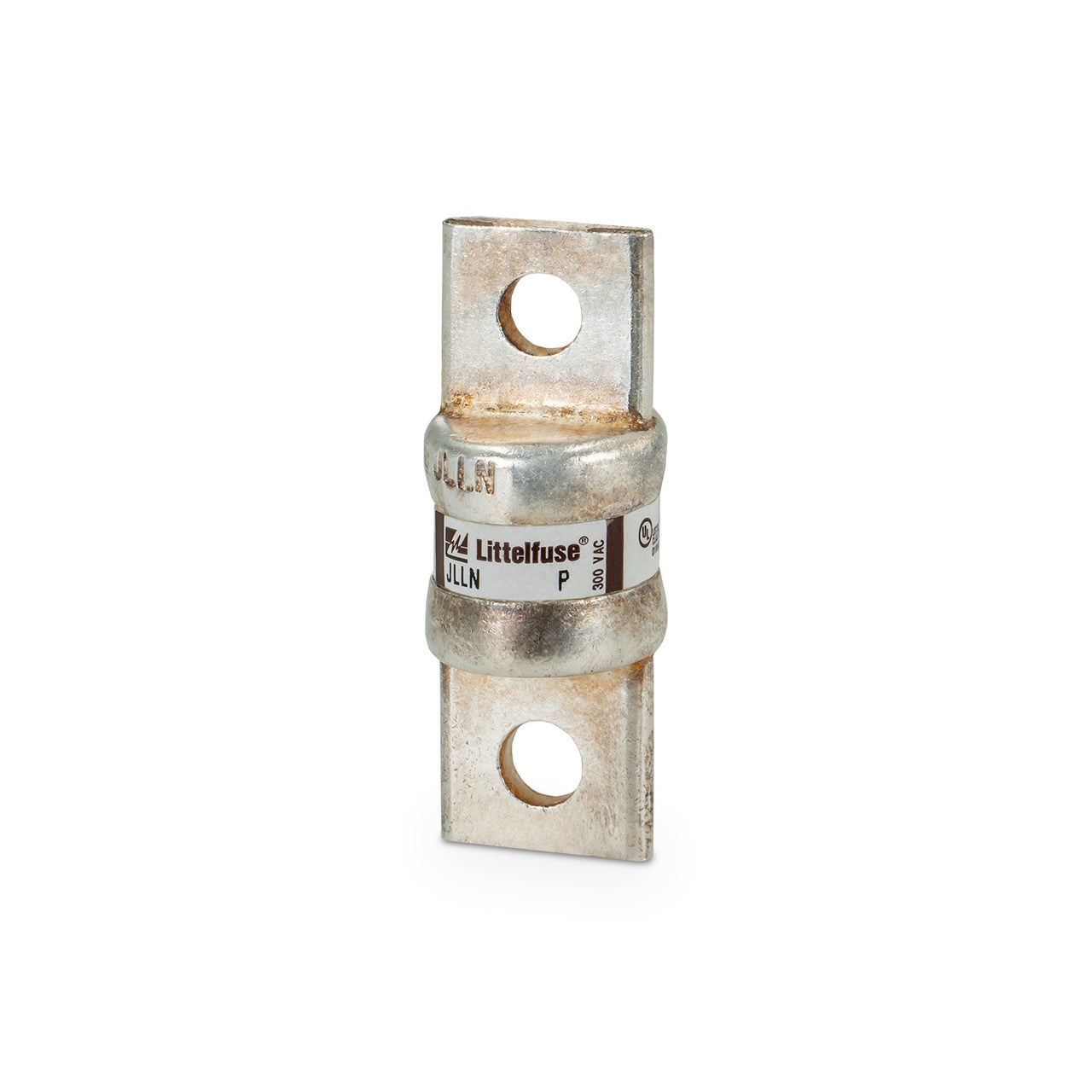

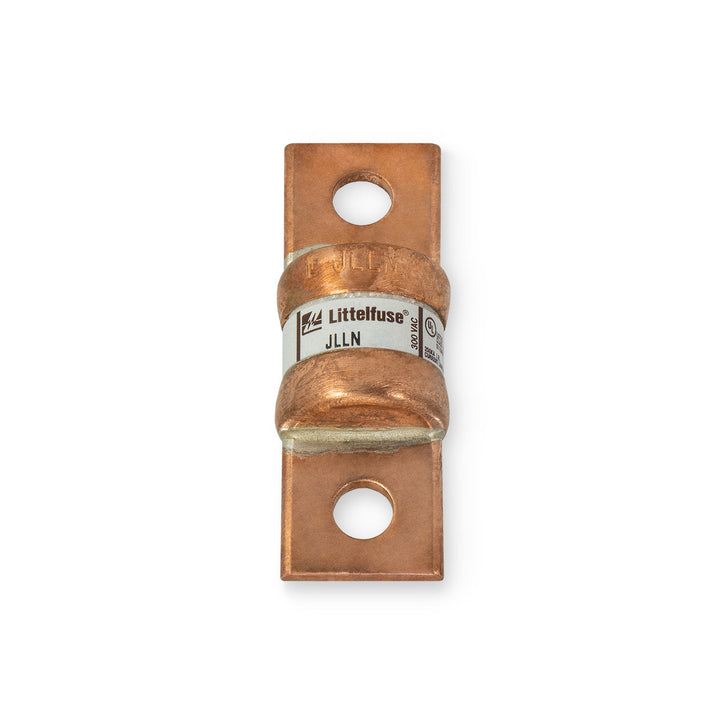

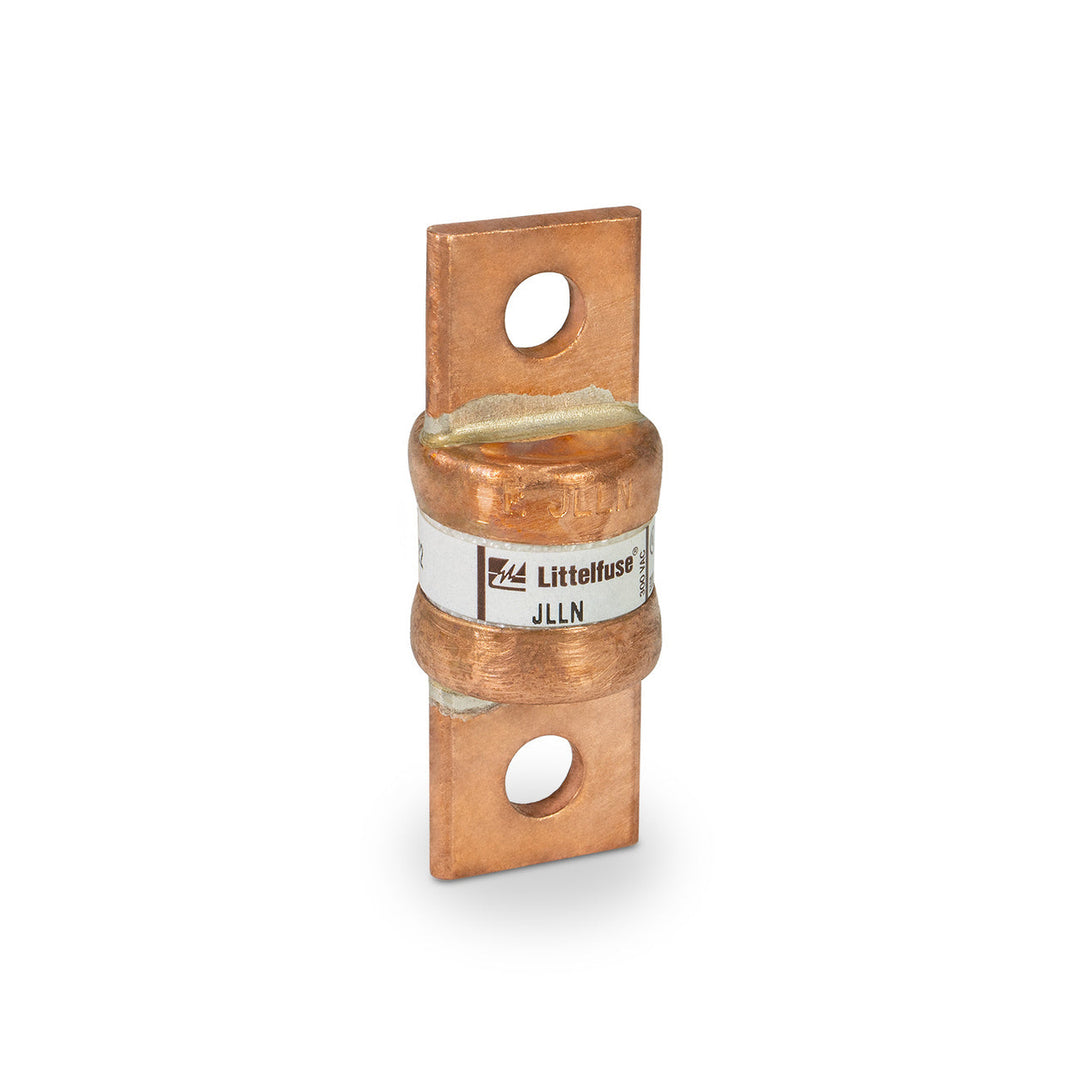

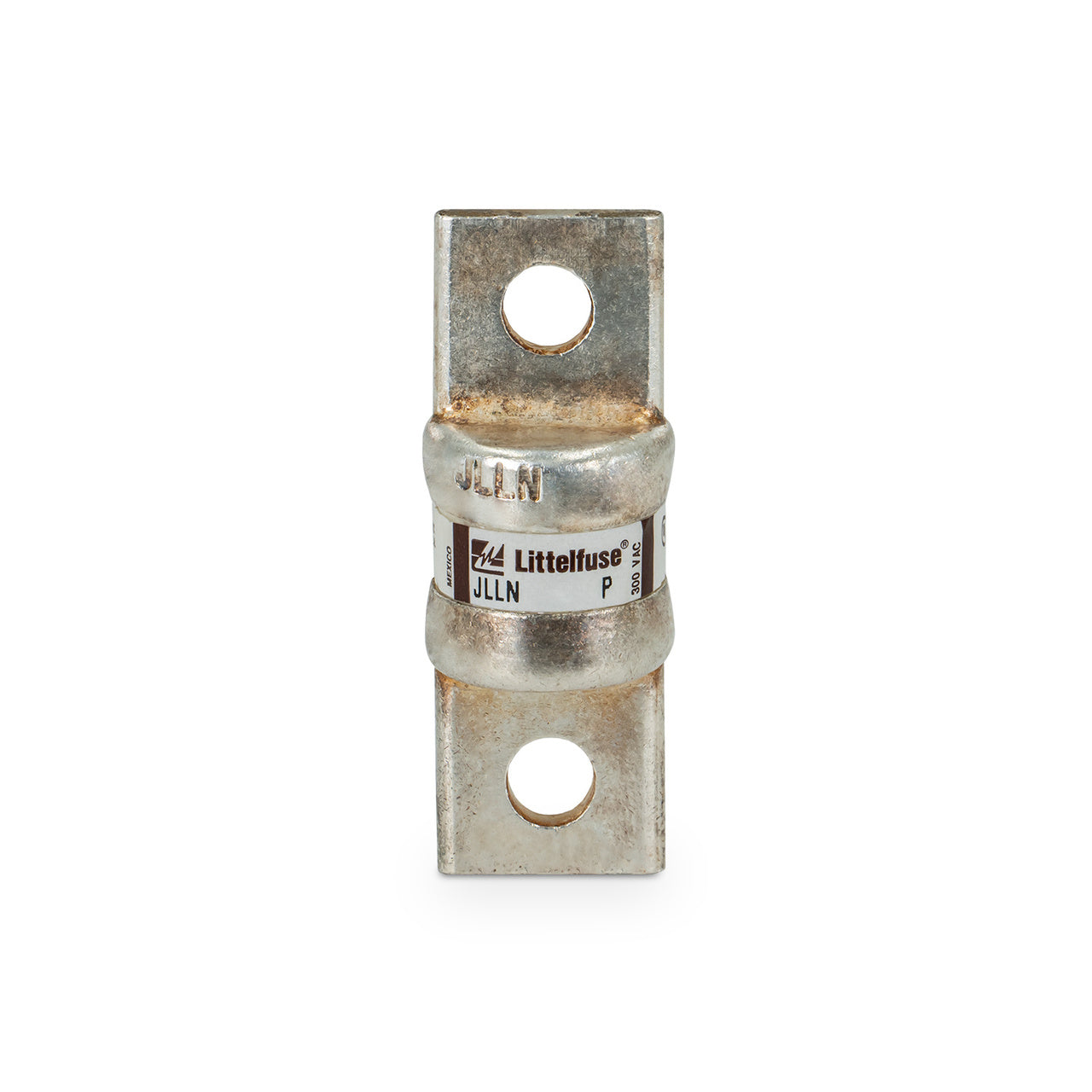

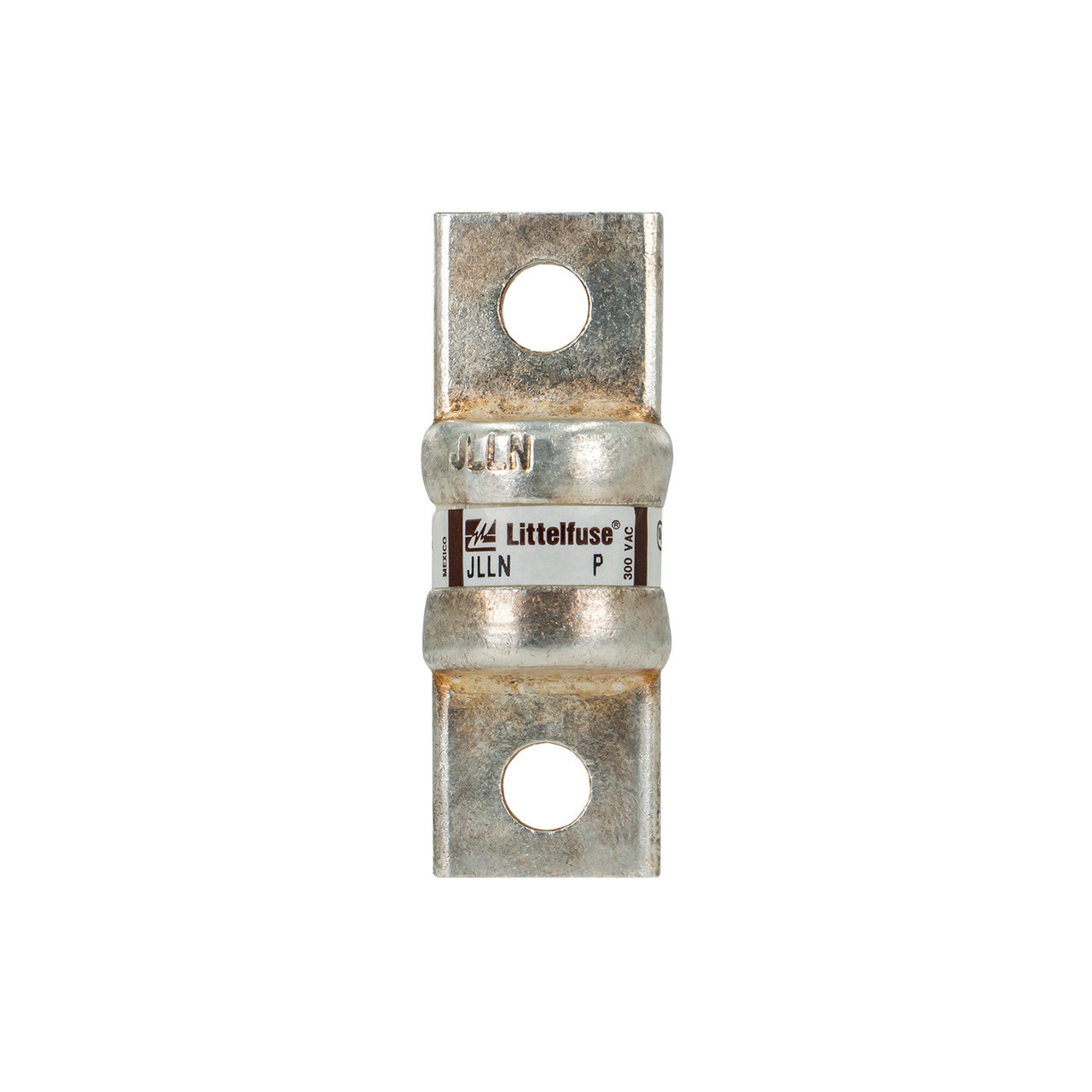

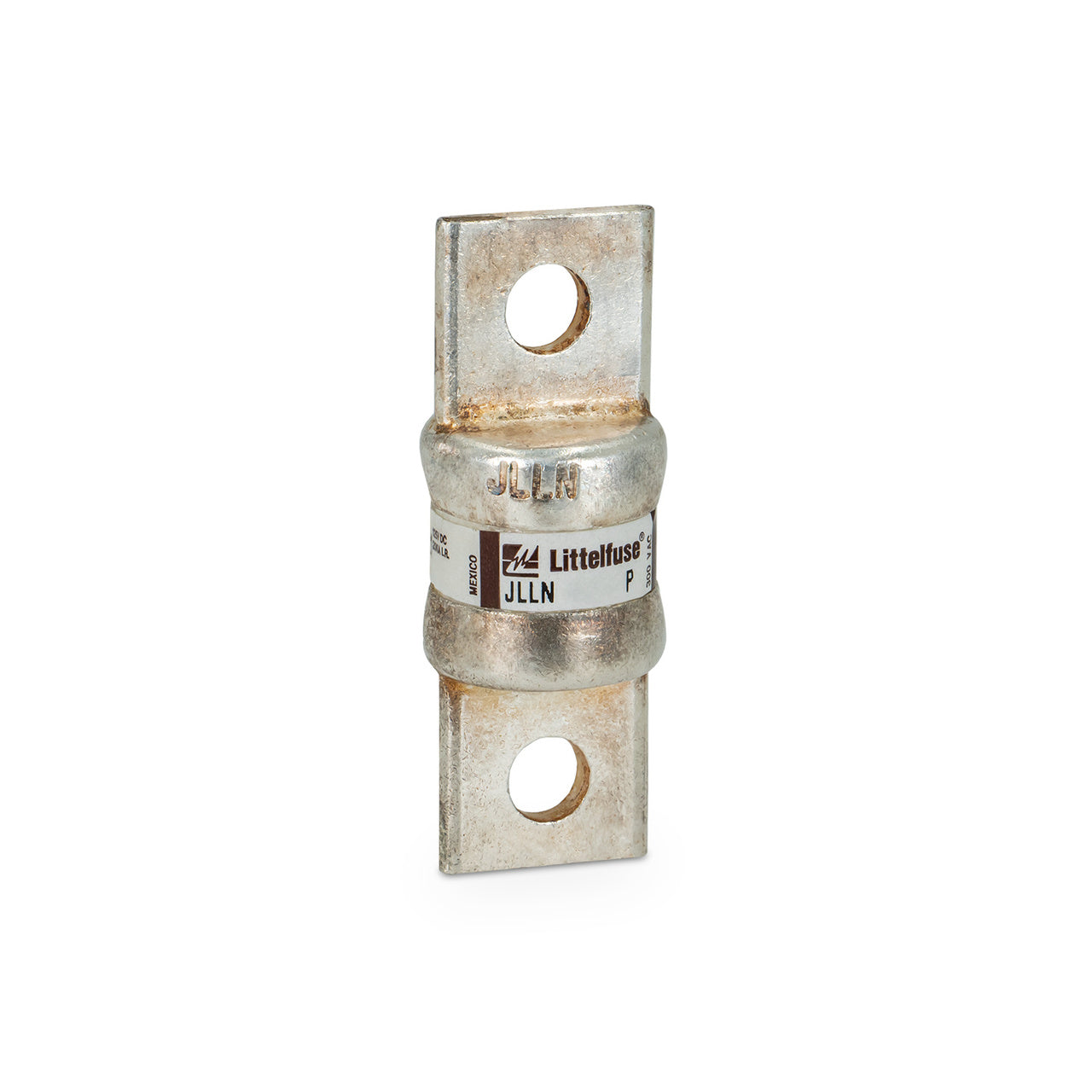

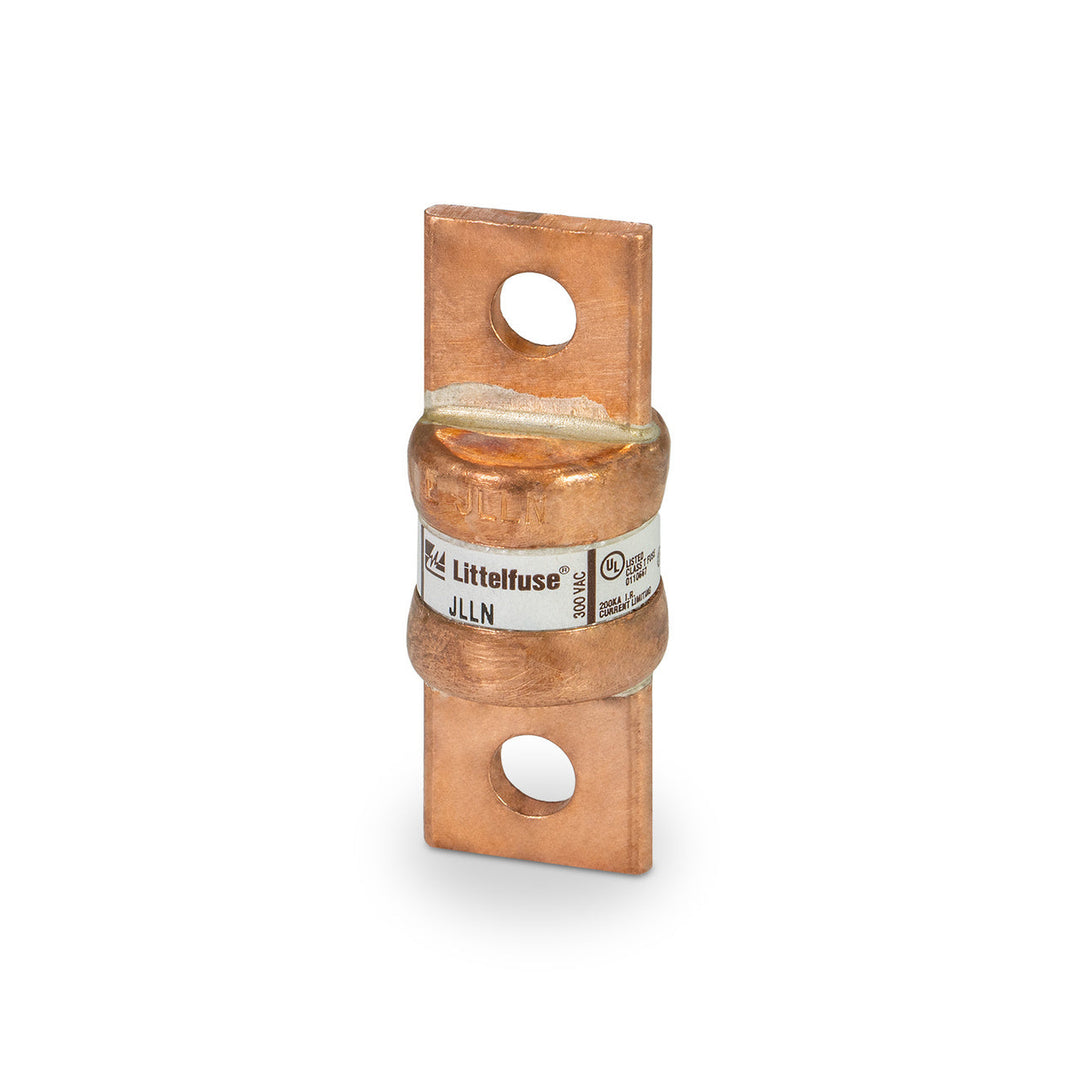

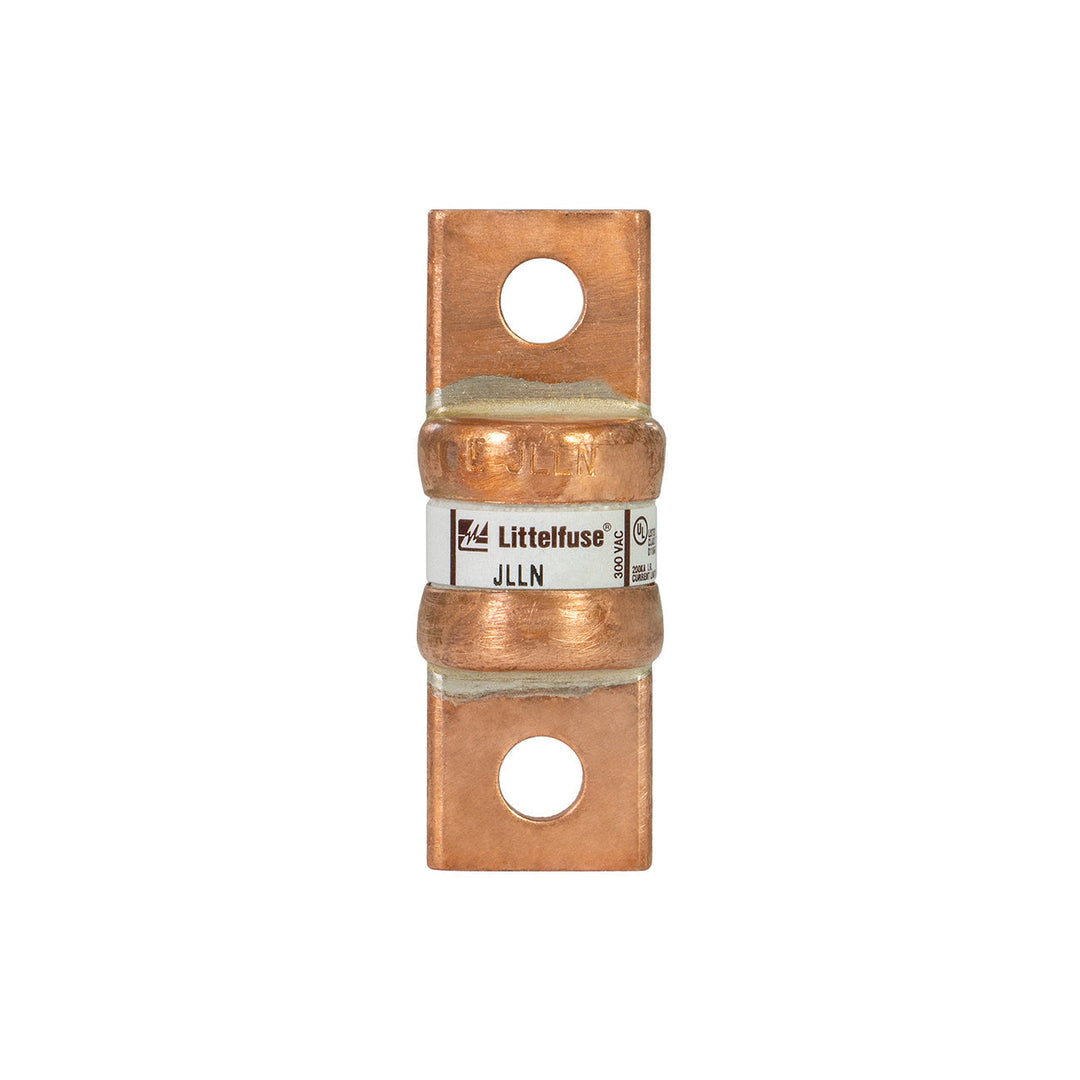

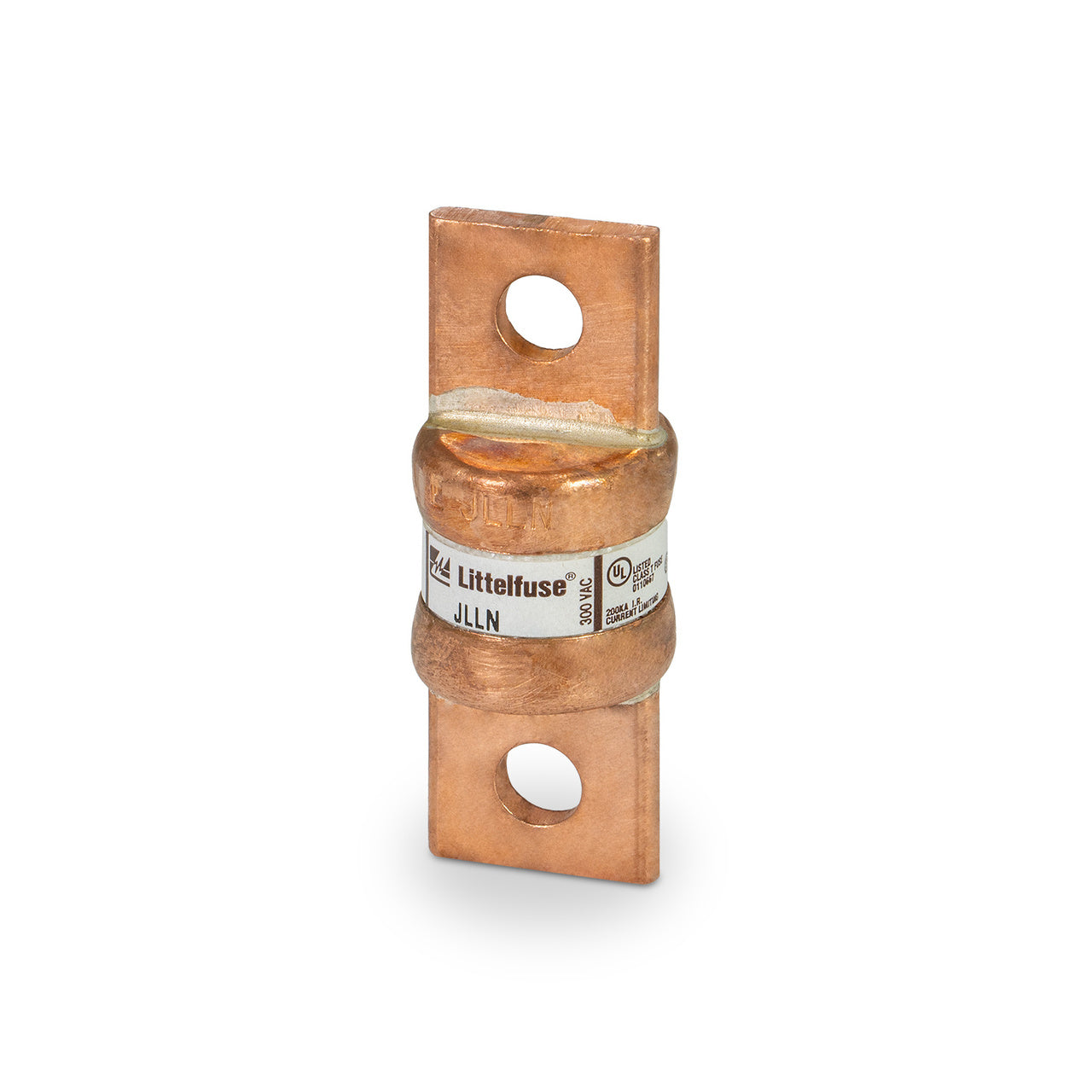

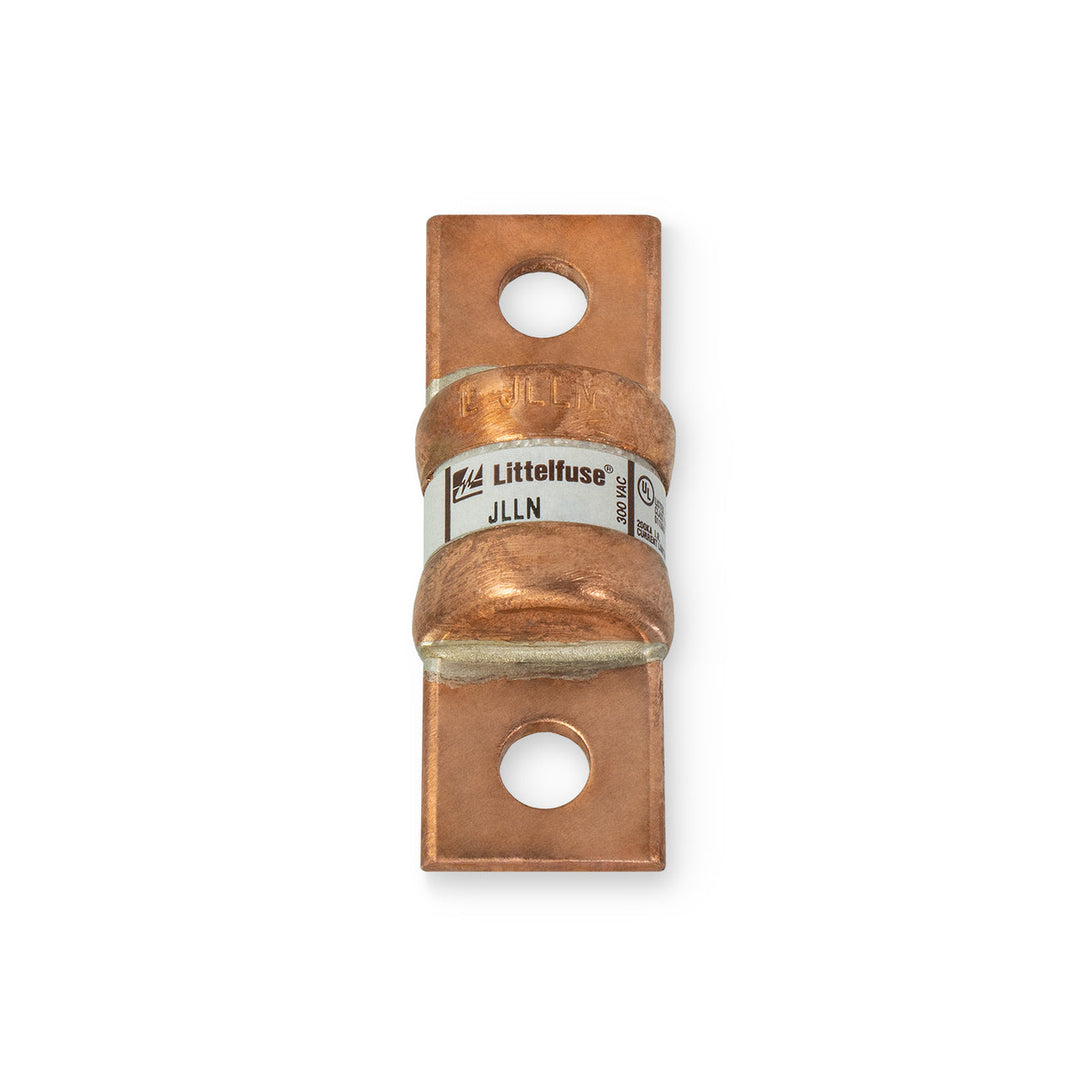

Littelfuse JLLN-090 - Class T Fuse 90A 300V (200kA AIC)

Littelfuse JLLN-090 is a Class T low-voltage fuse from the Powr-Gard family designed to provide high-interrupting capacity protection for electrical circuits. It features a 90A current rating and 300V voltage rating with an impressive 200kA interrupting capacity at 300V AC. The fuse construction utilizes a single-barrel design with a 0.81-inch diameter and weighs 5.19 lb, meeting industry standards for high-performance circuit protection. This fuse complies with relevant safety standards for industrial electrical systems and is typically deployed in applications requiring robust short-circuit protection, including industrial control panels, power distribution equipment, and motor branch circuits where high fault currents may occur.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction
• Voltage Rating: 300V AC
• Current Rating: 90A
• Dimensions: 0.81-inch diameter
• Standards: Meets industry standards for high-interrupting capacity fuses
• Applications: Industrial control panels, power distribution equipment, motor branch circuits
• AIC rating: 200kA@300V
• Class Rating: T
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 07945818081
• GTIN: 00079458180817
