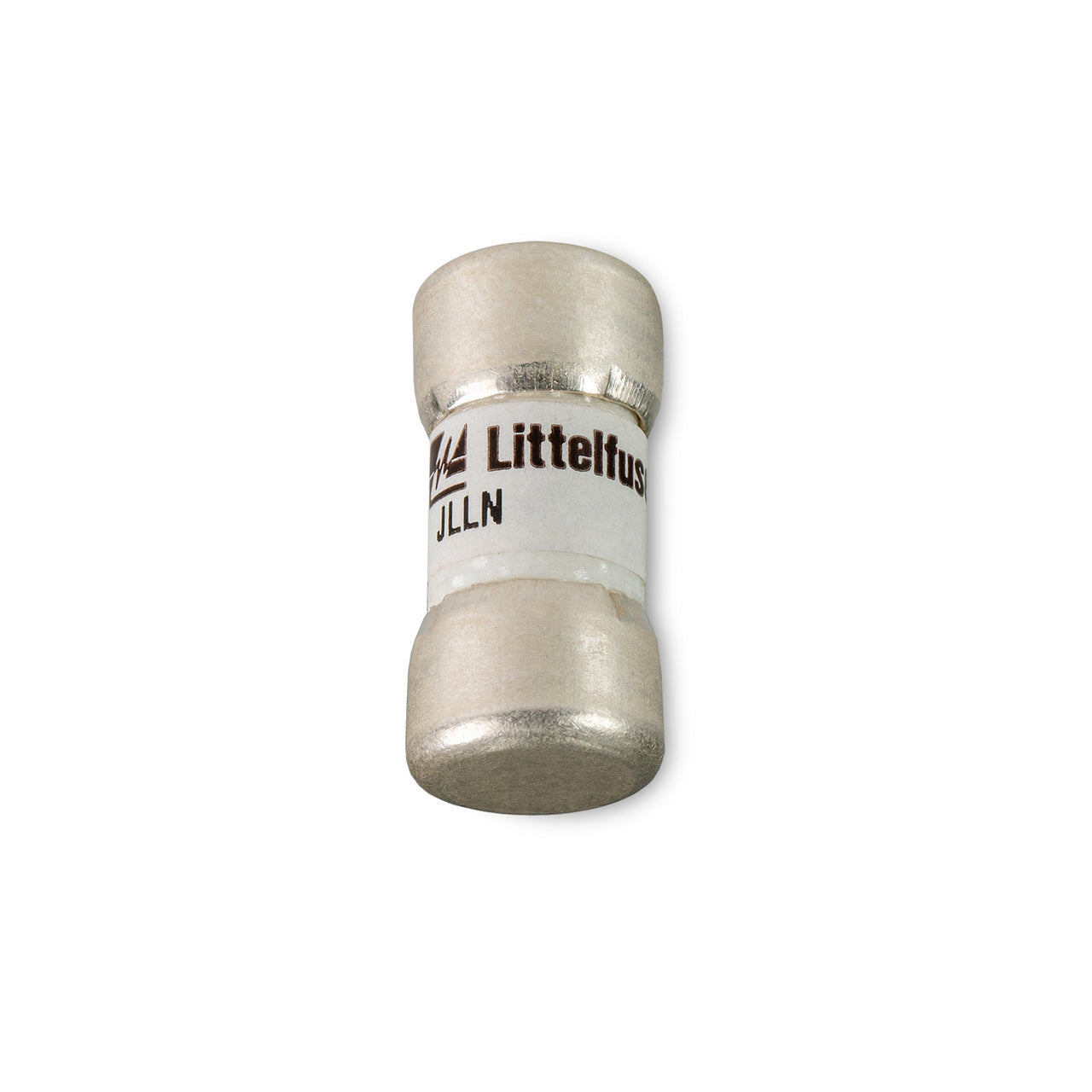

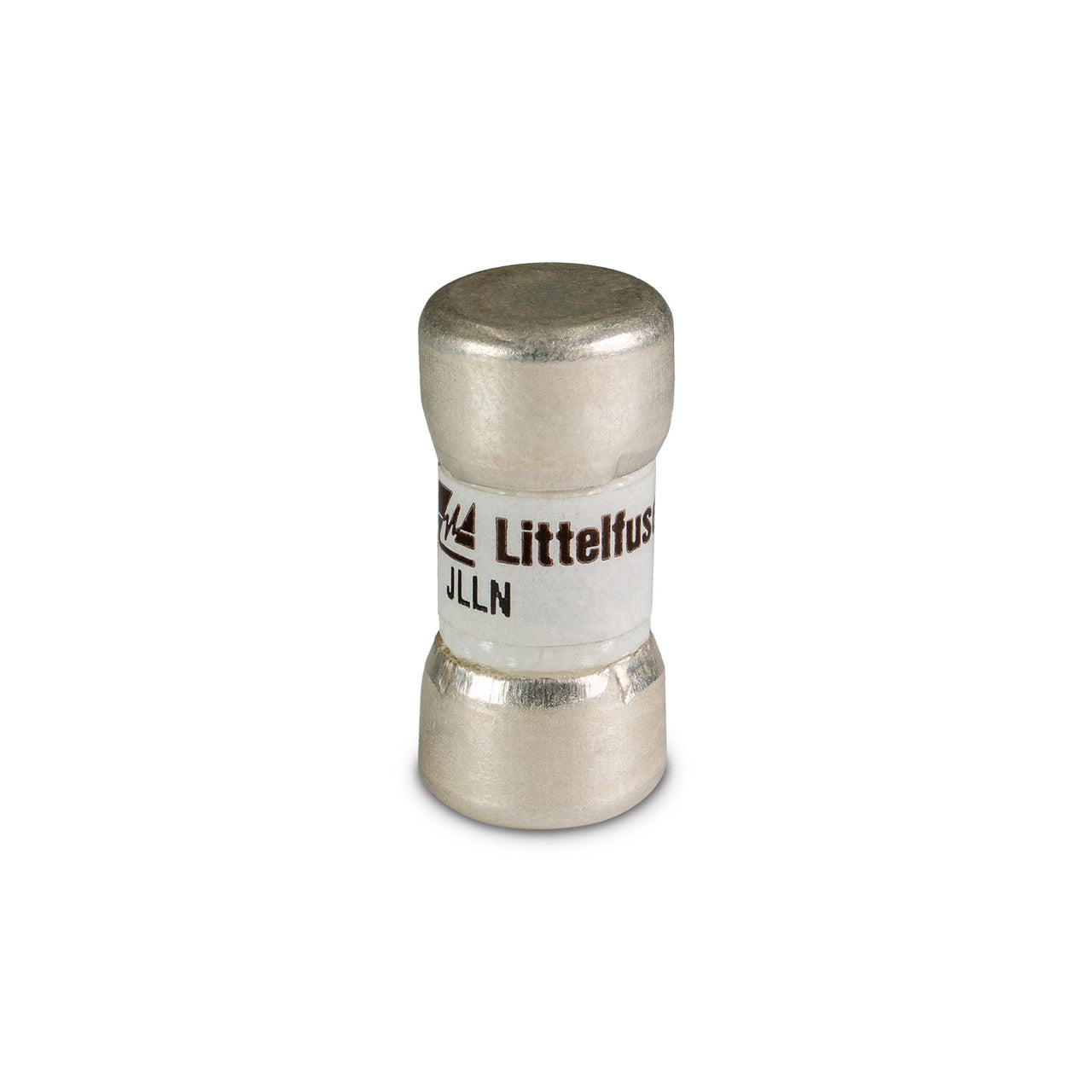

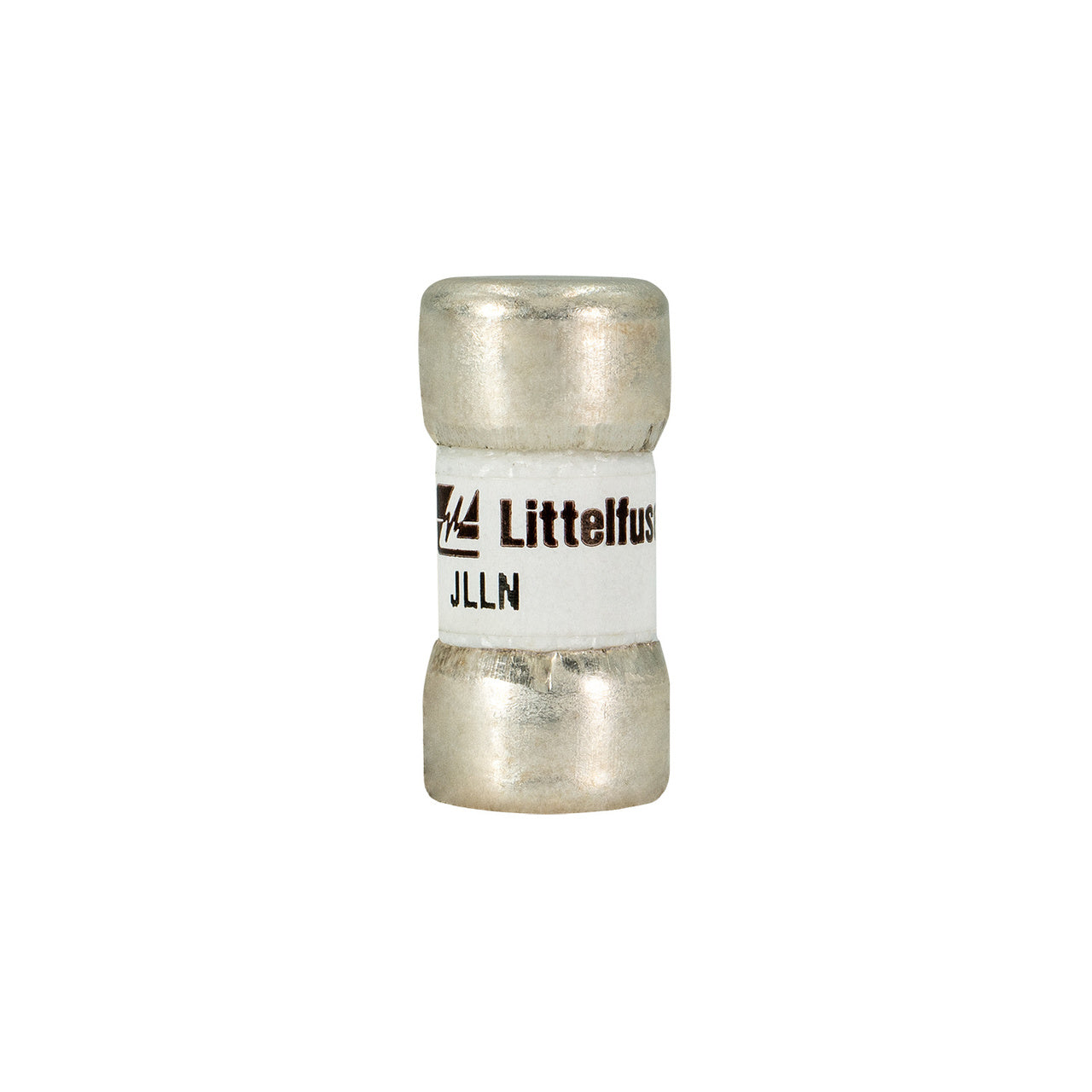

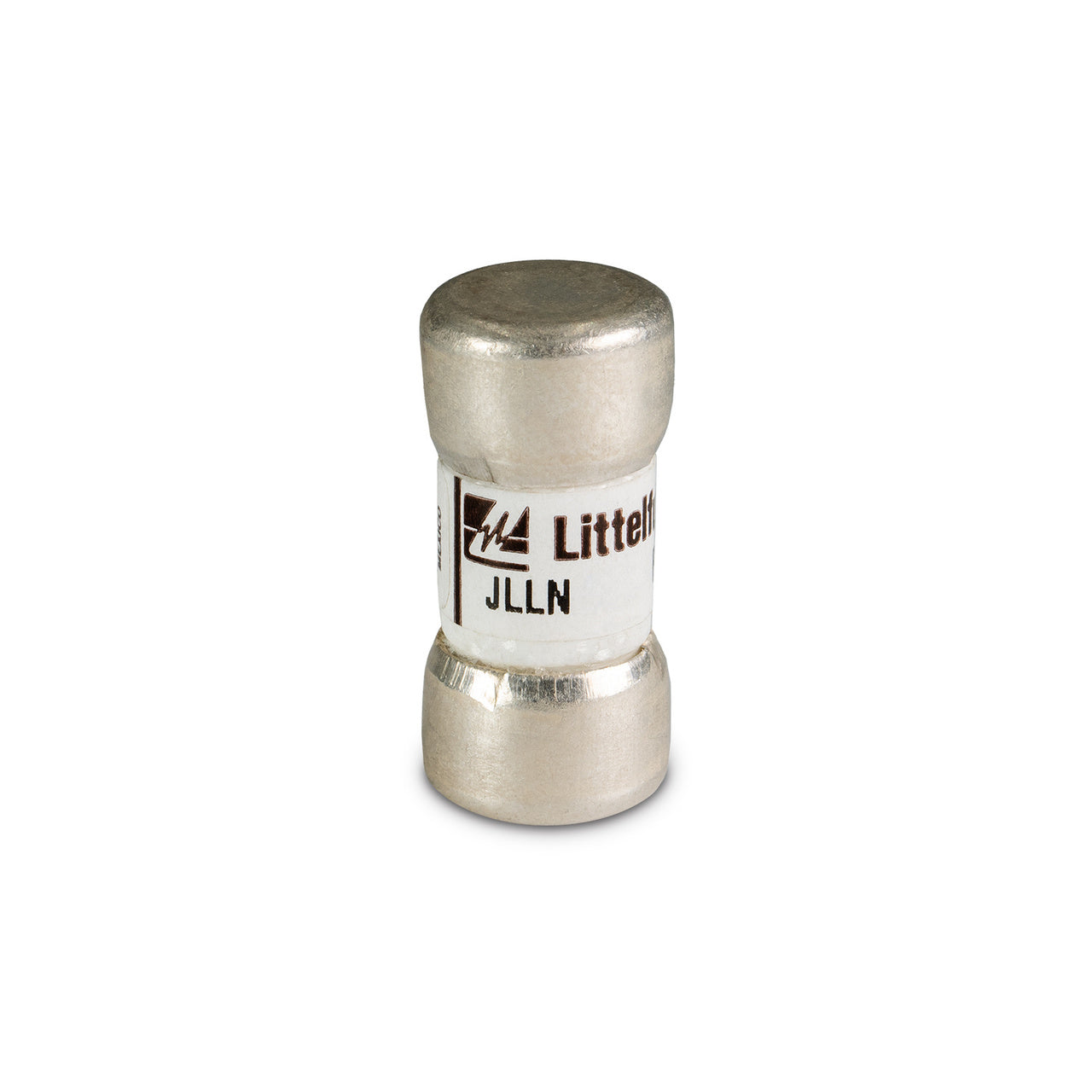

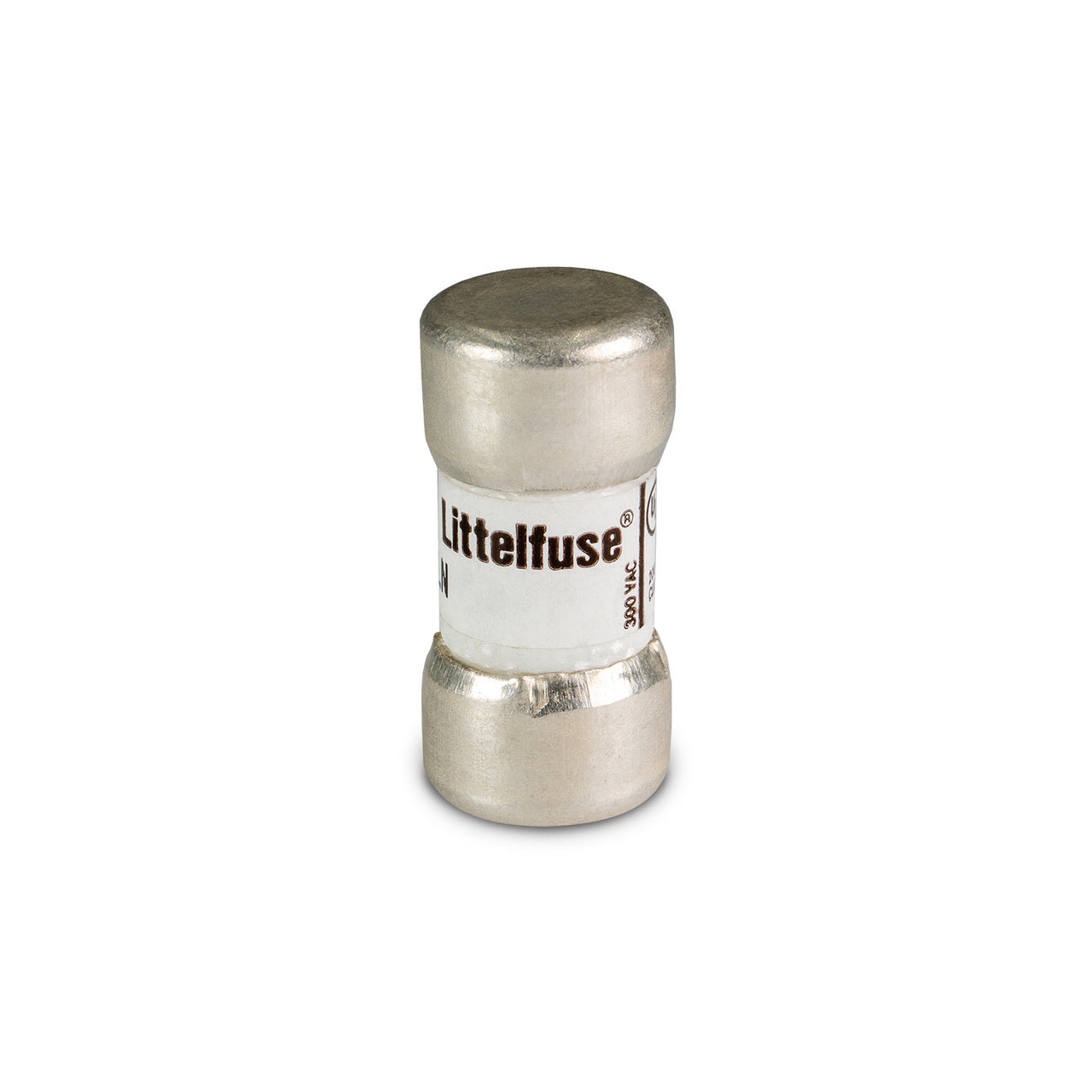

Littelfuse JLLN-015 - Class T Time-Delay Fuse 15A 300V (200kA AIC)

Littelfuse JLLN-015 is a low voltage time-delay fuse from the Powr-Gard family, engineered to provide reliable circuit protection for industrial equipment and control circuits. It features a 15A current rating and a 300V AC voltage rating, with an impressive 200kA interrupting capacity at rated voltage to safely clear high-level faults. The fuse is constructed as a single-barrel, Class T device with a compact 0.41-inch diameter and a robust design weighing 5.19 lb, ensuring durability in demanding environments. It complies with relevant industry standards for safety and performance, making it suitable for a wide range of applications including motor branch circuits, transformers, and feeder circuits where time-delay characteristics and high interrupting ratings are required.

Key Features & Specifications

• Type: JLLN, Low Voltage Time-Delay Fuse, Single Barrel, Class T
• Voltage Rating: 300V AC
• Current Rating: 15A
• Dimensions: 0.41 inch Diameter
• Standards: Industry Standard for Class T Fuses
• Applications: Motor Branch Circuits, Transformers, Feeders, Industrial Control Circuits
• AIC rating: 200kA@300V
• Class Rating: T
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 07945818068
• GTIN: 00079458180688
