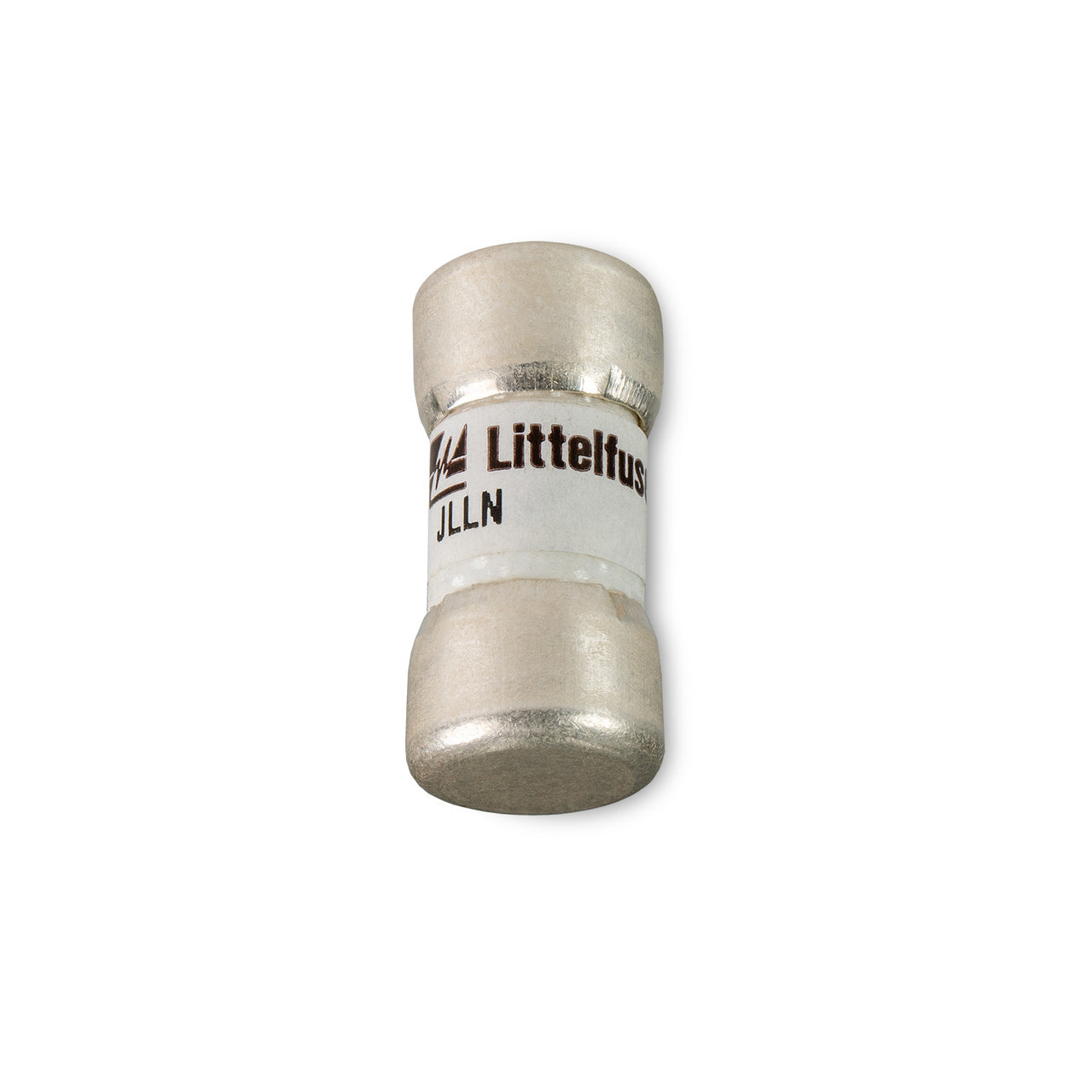

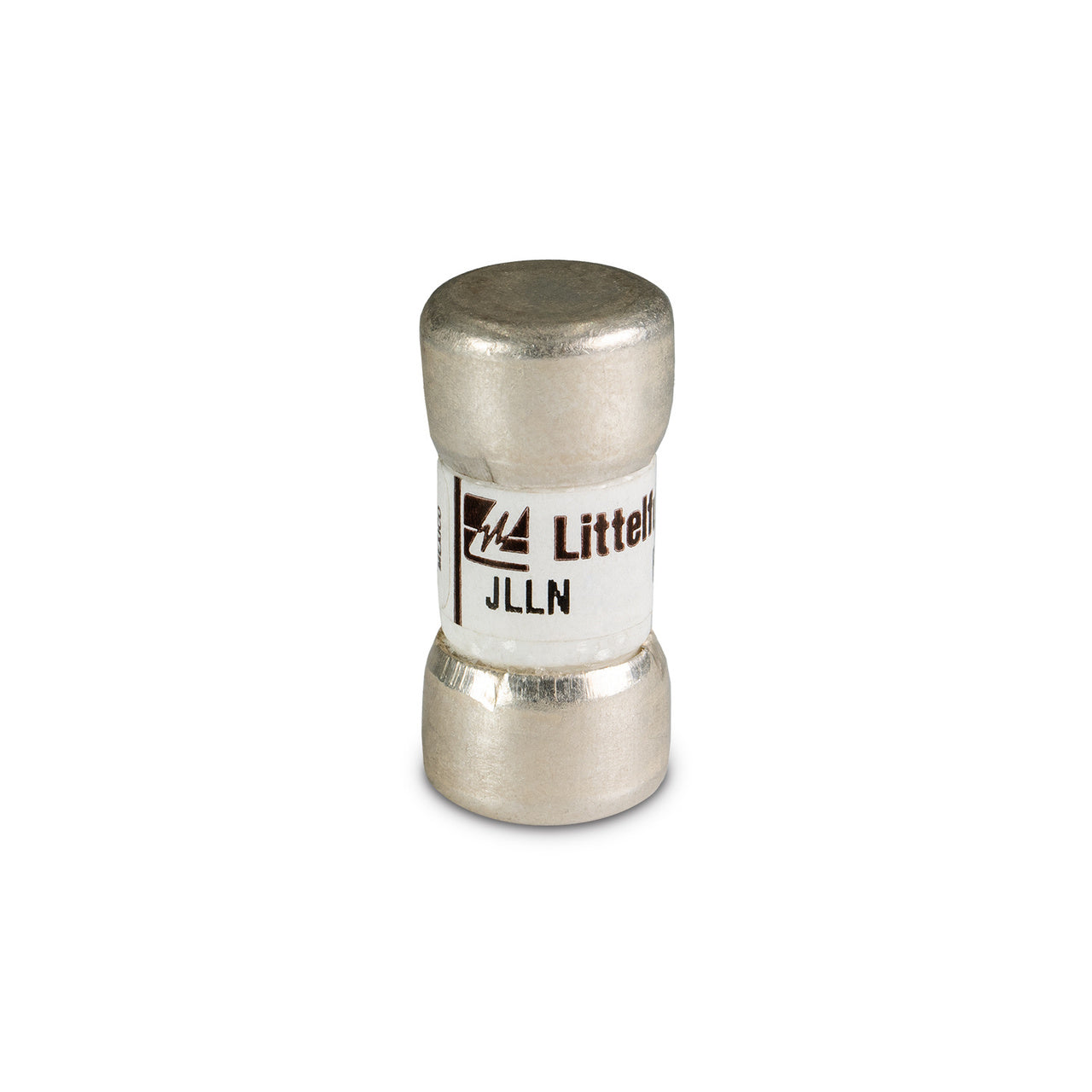

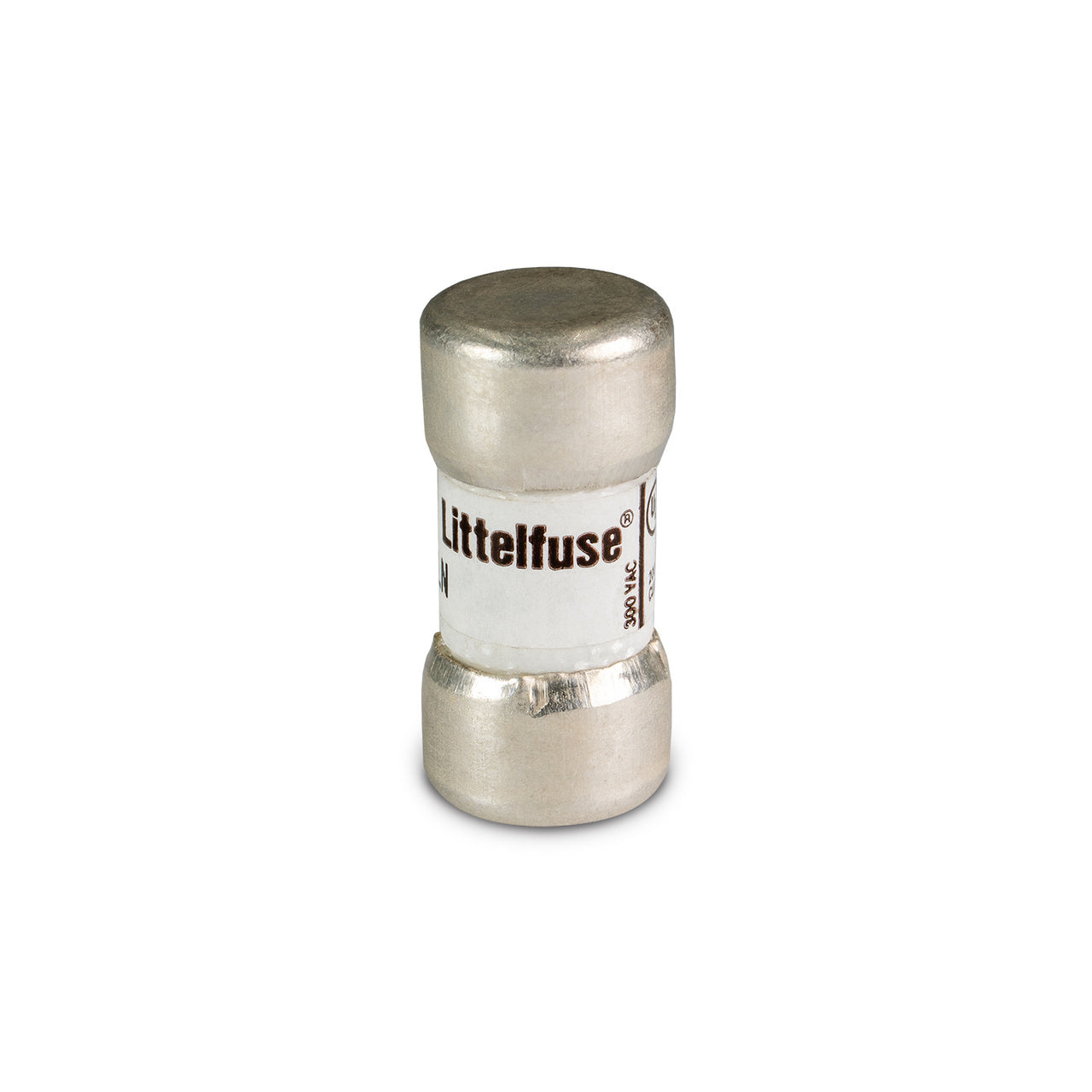

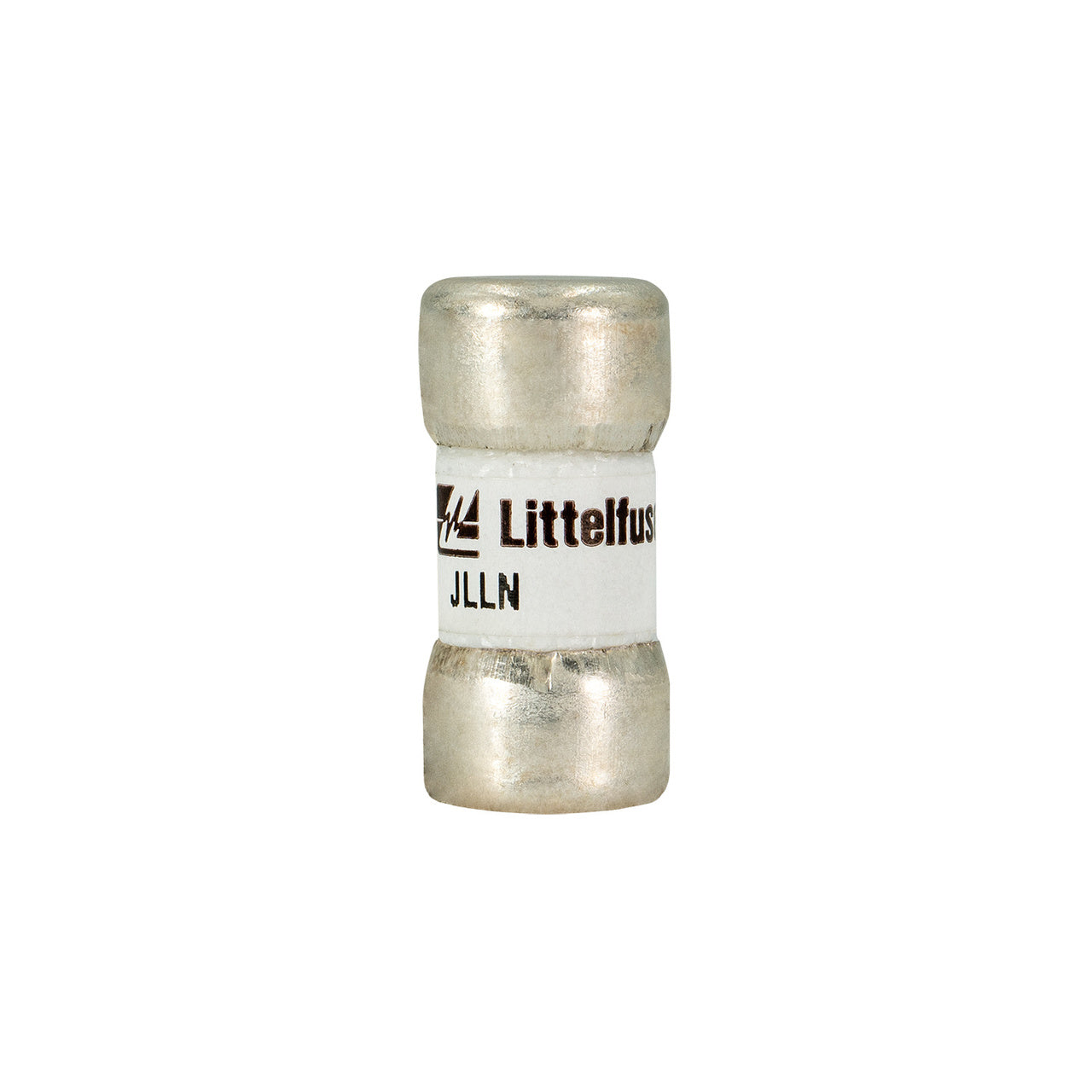

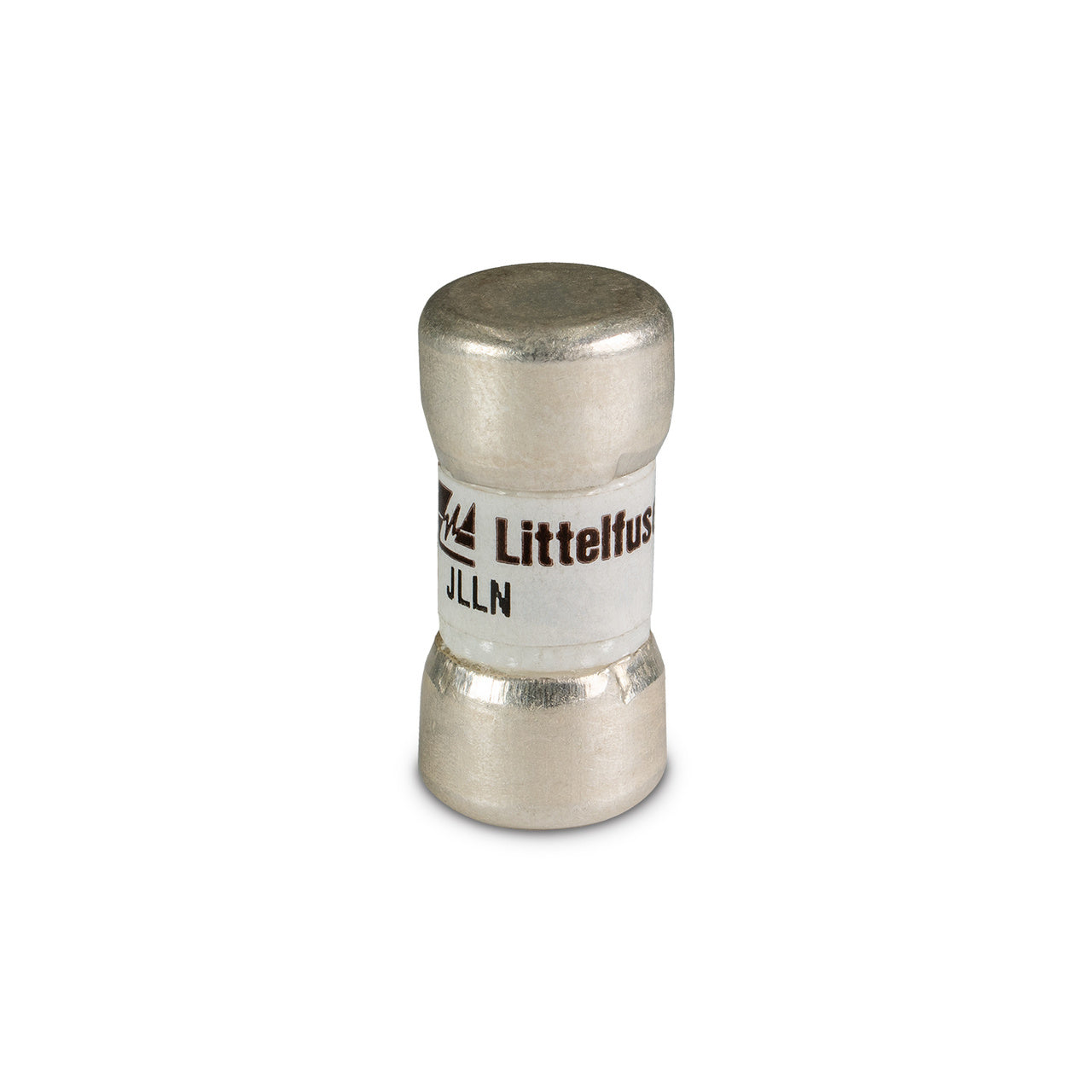

Littelfuse JLLN-010 is a low voltage time-delay fuse from the Powr-Gard family designed to provide reliable circuit protection in demanding industrial applications. It features a 10A current rating and a 300V voltage rating, capable of interrupting up to 200kA of fault current. The fuse is constructed as a single-barrel unit with a compact 0.41-inch diameter and a Class T rating, ensuring a high degree of current limitation and fast-acting performance. It is engineered to meet rigorous industrial standards for safety and performance. Typical applications include protection of motors, transformers, and feeders in industrial control panels and power distribution systems.
Key Features & Specifications
Type: Low Voltage, Time-Delay, Current Limiting, Fast-Acting Fuse, Class T
Voltage Rating: 300V AC
Current Rating: 10A
Dimensions: 0.41 inch Diameter
Standards: UL/CSA
Applications: Industrial Control Panels, Motor Protection, Transformer Protection, Feeder Circuits
AIC rating: 200kA @ 300V
Class Rating: T
Barrels: 1
Weight: 5.19 lb
Product Identification
UPC: 07945818065
GTIN: 00079458180657
