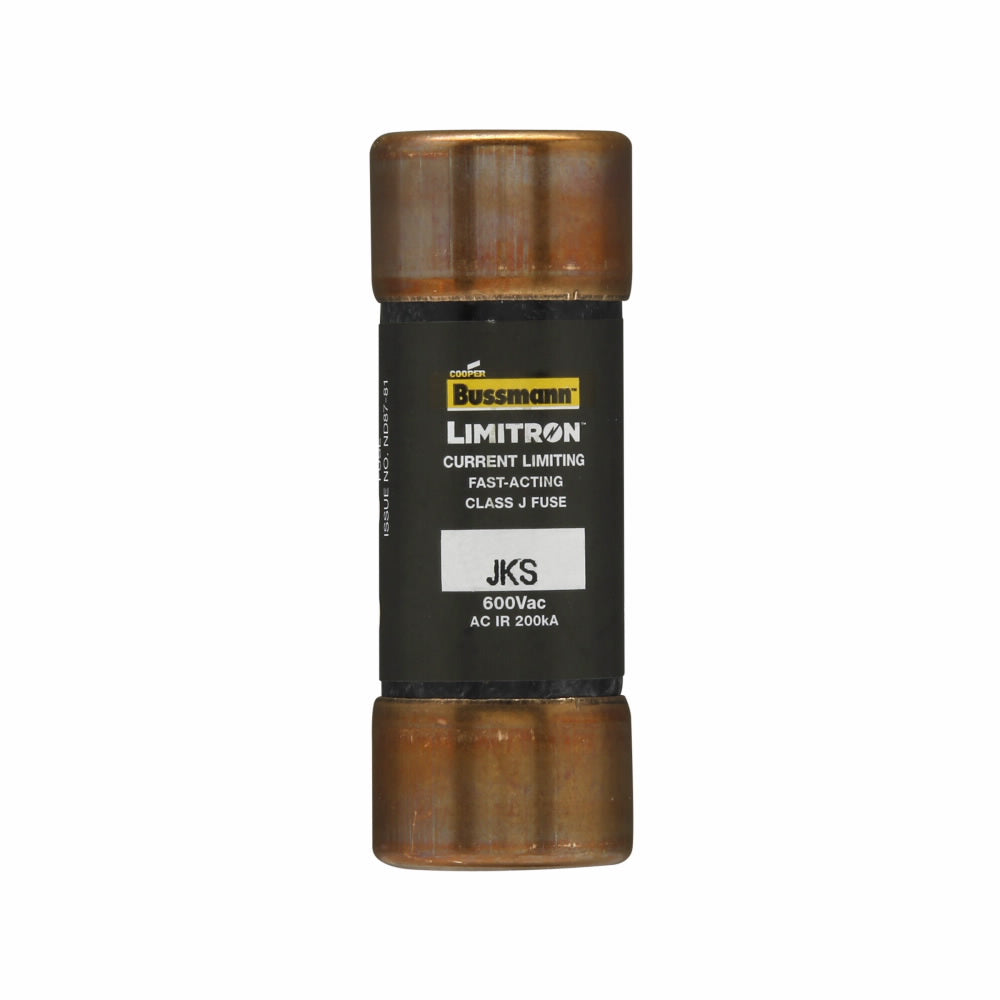

Bussmannn JKS-8 - Class J Fuse 8A 600V (200kA AIC)

Bussmannn JKS-8 is a Class J low-voltage fuse from the LIMITRON family, designed for circuit protection in industrial electrical systems. It features a 600V AC rating with an 8A current capacity and a 200kA interrupting rating at 600V for reliable short-circuit protection. The compact cylindrical design measures 2.25" in length with a 0.81" diameter, constructed with a single barrel configuration weighing 2.15 lb. UL, CSA, and CE certified, this fuse meets stringent safety standards for use in motor control centers, industrial control panels, and power distribution equipment requiring Class J protection.

Key Features & Specifications

• Type: Class J time-delay fuse with current-limiting design
• Voltage Rating: 600V AC
• Current Rating: 8A
• Dimensions: 2.25" L × 0.81" W × 0.81" H (57.15 × 20.57 × 20.57 mm)
• Standards: UL 248-8, CSA C22.2 No. 248.8, CE
• Applications: Motor circuits, transformers, industrial controls
• AIC rating: 200kA @ 600V
• Class Rating: J
• Barrels: 1
• Diameter: 0.81" (20.57 mm)
• Weight: 2.15 lb (0.98 kg)

Product Identification

• UPC: 051712174770
• GTIN: 00051712174770
