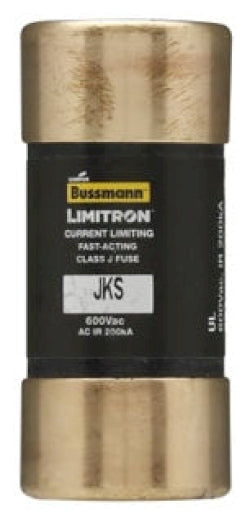

Bussmann JKS-60 - Class J Fuse 60A (200kA AIC @600V)

Bussmann JKS-60 is a Class J low-voltage fuse designed for circuit protection in industrial power distribution systems. It features a 600V AC rating with a 60A current capacity and 200kA interrupting rating, housed in a compact 2-3/8" body with 1.06" diameter. The fuse meets UL 248-8 and CSA 1422-02 standards with CE certification, constructed with a single-barrel design for reliable operation in motor control centers and panelboards. Its Limitron fast-acting protection technology makes it suitable for safeguarding transformers, feeders, and branch circuits in commercial and industrial facilities.

Key Features & Specifications

• Type: Class J time-delay fuse with fast-acting protection
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 2-3/8" length x 1.06" diameter
• Weight: 1.18 lb
• Standards: UL 248-8, CSA 1422-02, CE
• Applications: Motor control centers, panelboards, industrial power distribution
• AIC rating: 200kA@600V
• Class Rating: J
• Barrels: 1
• Certification: CE/UL-248-8 Guide JDDZ/CSA Class 1422-02

Product Identification

• UPC: 051712630603
• GTIN: 00051712630603
