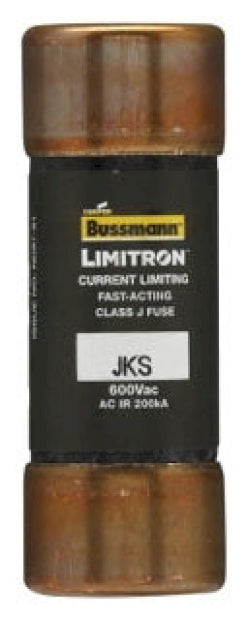

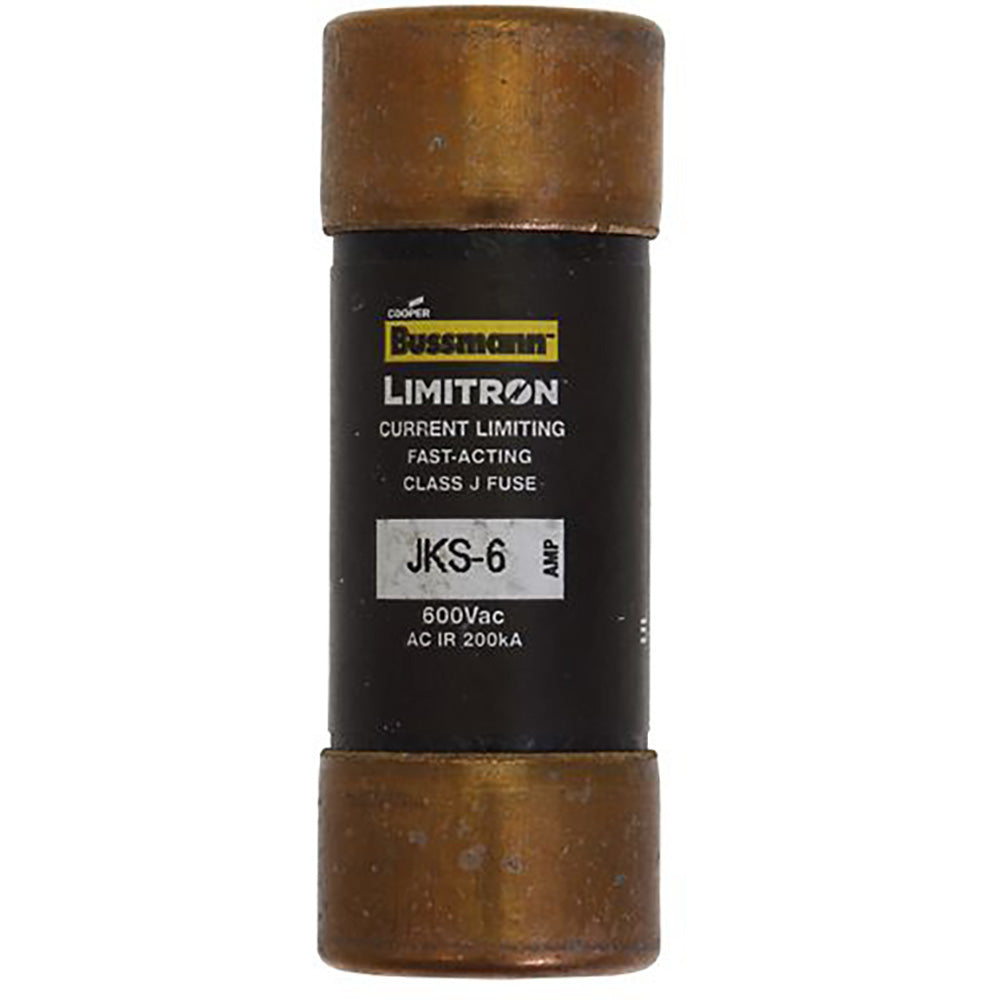

Bussmannn JKS-6 - Class J Fuse 6A 600V (200kA AIC)

Bussmannn JKS-6 is a Class J low-voltage fuse designed for circuit protection in industrial applications, featuring a 6A current rating and 600V voltage rating for reliable overcurrent interruption. Its compact design measures 2-1/4 inches in length with a 0.81-inch diameter, constructed with a single-barrel configuration and a 200kA interrupting capacity at 600V for high-fault protection. The fuse meets CE/UL-248-8 and CSA Class 1422-02 standards, ensuring compliance with rigorous safety requirements. Typical applications include motor control centers, transformers, and power distribution systems where Class J protection is specified.

Key Features & Specifications

• Type: Class J time-delay fuse with Limitron technology
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 2-1/4 in length x 0.81 in diameter
• Standards: CE/UL-248-8, CSA Class 1422-02
• Applications: Industrial power distribution, motor protection
• Class Rating: J
• AIC rating: 200kA@600V
• Barrels: 1
• Weight: 2.15 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712630061
• GTIN: 00051712630061
