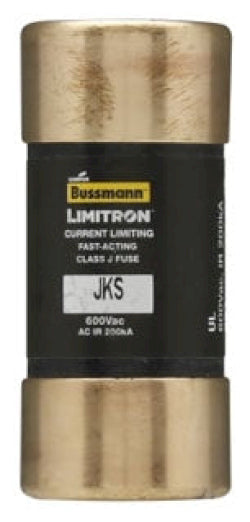

Bussmann JKS-40 - Class J Fuse 40A 600V (200kA AIC)

Bussmann
Price
Save $210.43
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann JKS-40 is a Class J low-voltage current-limiting fuse designed for providing high-interrupting capacity protection in industrial power circuits. It features a 40A current rating and a 600V AC voltage rating, with a compact, single-barrel construction measuring 2.38 inches in length and 1.06 inches in diameter. The fuse is certified to UL 248-8 and CSA C22.2 No. 248.8 standards, offering a 200,000A interrupting rating at 600V AC for reliable protection against short-circuits. Typical applications include the protection of motor circuits, feeders, and branch circuits in industrial control panels and distribution equipment.

Key Features & Specifications
  • Type: Class J, time-delay, current-limiting, low-voltage fuse
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 2.38 in L x 1.06 in D (Diameter)
  • Standards: UL 248-8, CSA C22.2 No. 248.8, CE
  • Applications: Motor protection, feeder and branch circuit protection
  • AIC rating: 200,000A @ 600V AC
  • Class Rating: J
  • Barrels: 1
  • Diameter: 1.06 in
  • Certification: CE/UL-248-8 Guide JDDZ/CSA Class 1422-02


Product Identification
  • UPC: 051712630405
  • GTIN: 00051712630405
