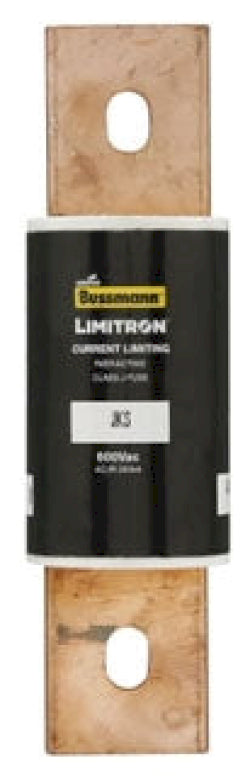

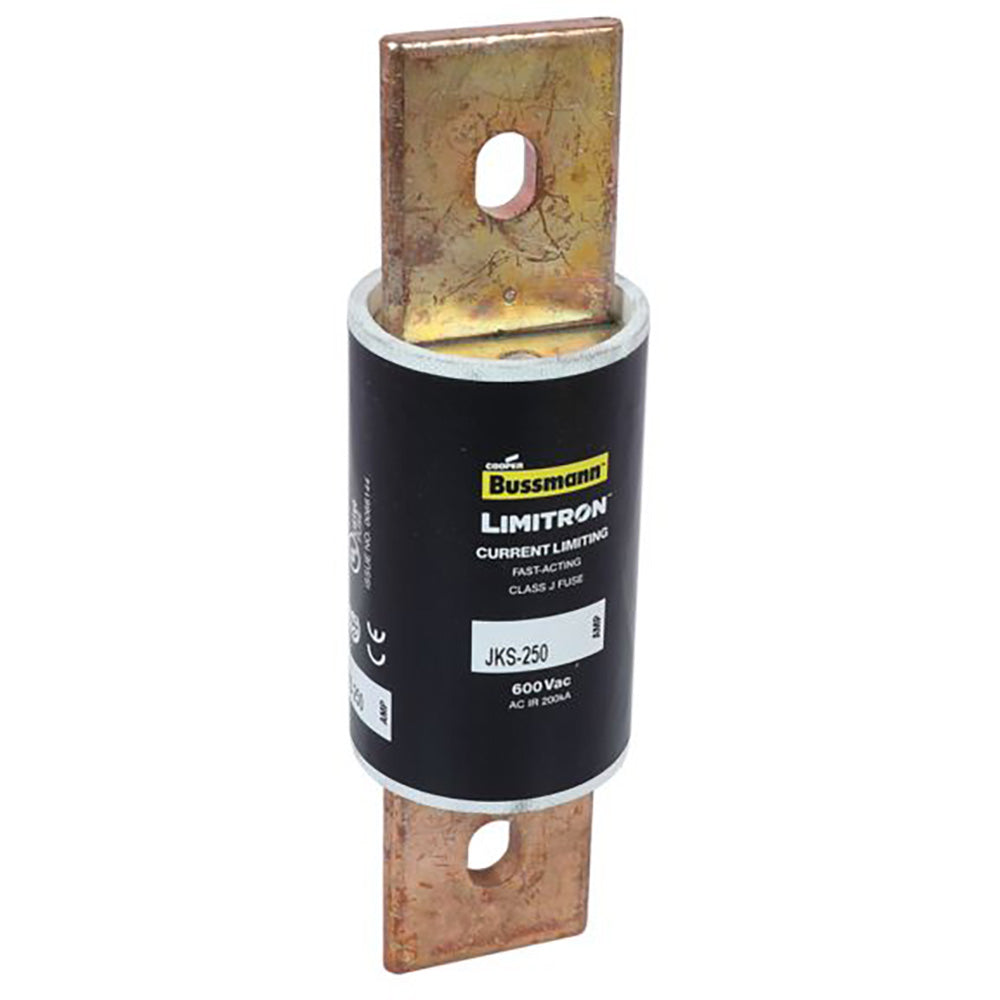

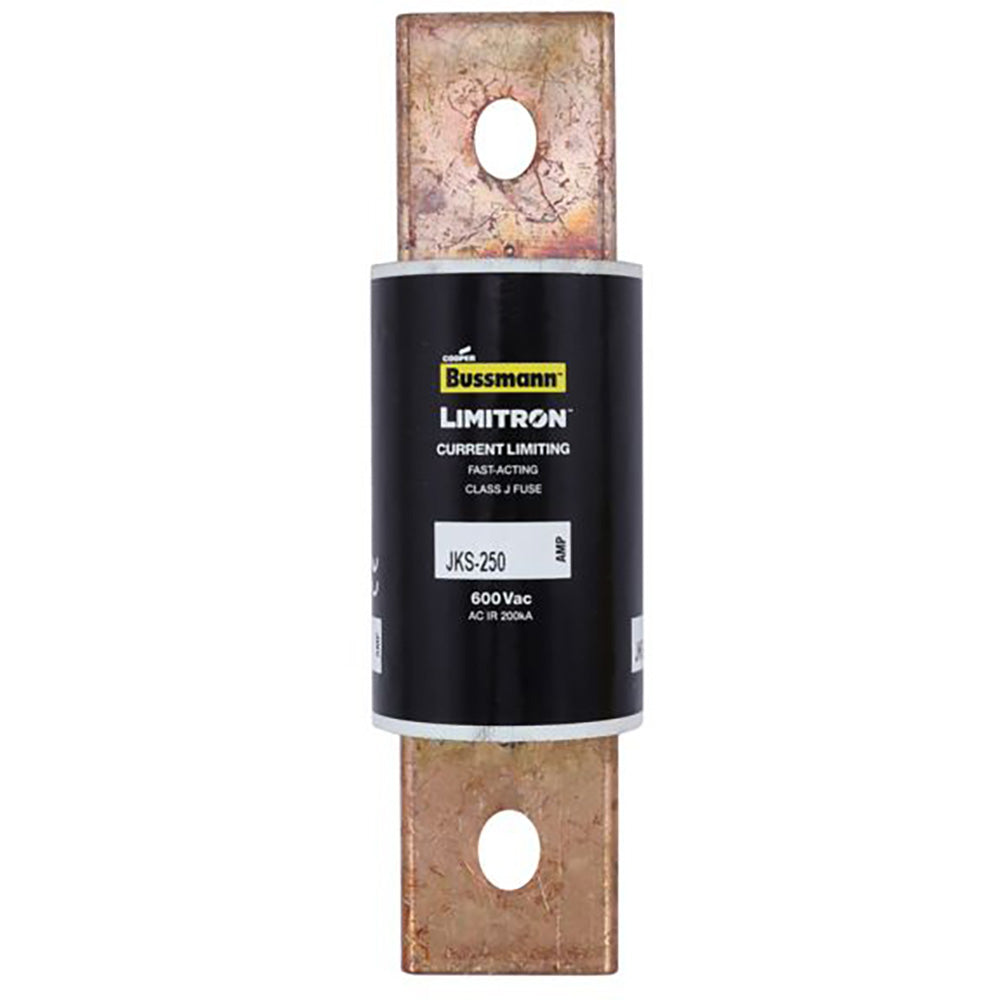

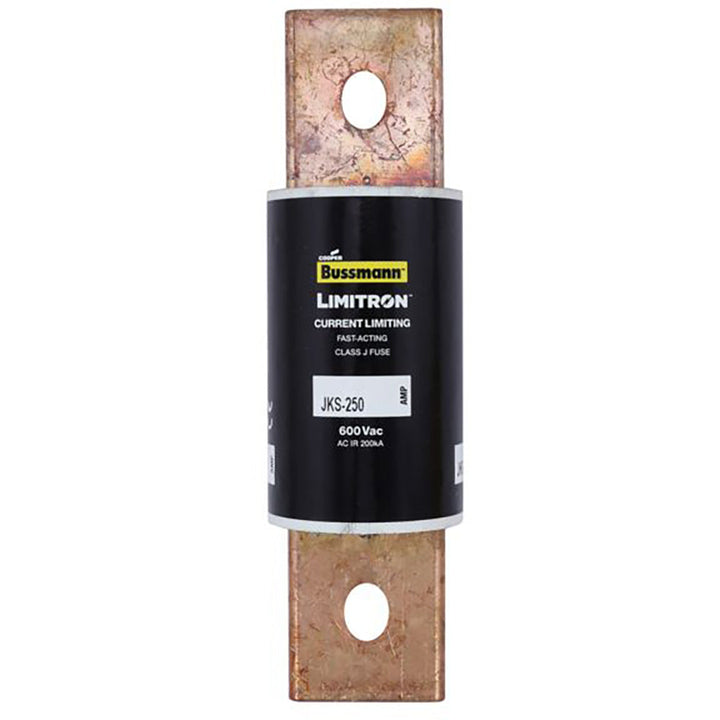

Bussmannn JKS-250 - Class J Fuse 250A (200kA@600V Interrupt Rating)

Bussmannn JKS-250 is a Class J low-voltage fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 600V AC rating with a 250A current capacity and 200kA interrupting rating at 600V for reliable fault current interruption. The fuse measures 7-1/8 inches in length with a 2.11-inch diameter barrel construction, weighing 3 lb for robust mechanical durability. Certified to UL-248-8 and CSA Class 1422-02 standards, this LIMITRON series fuse is manufactured in Mexico for use in motor protection, transformer circuits, and feeder protection systems.

Key Features & Specifications

• Type: Class J time-delay fuse with single barrel design
• Voltage Rating: 600V AC
• Current Rating: 250A
• Dimensions: 7-1/8" length x 2.11" diameter
• Standards: CE/UL-248-8, CSA Class 1422-02
• Applications: Motor circuits, transformers, feeder protection
• Class Rating: J
• AIC rating: 200kA@600V
• Weight: 3 lb
• Barrels: 1

Product Identification

• UPC: 051712632508
• GTIN: 00051712632508
