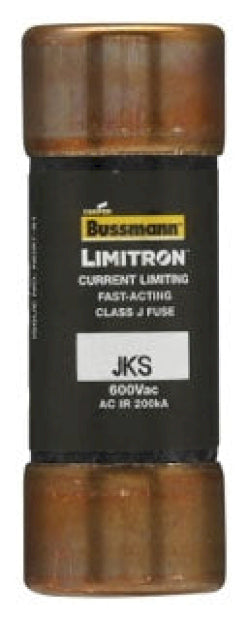

Bussmann JKS-25 - Class J Time-Delay Fuse 25A 600V (200kA AIC)

Bussmann
Price
Save $1,964.49
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann JKS-25 is a Class J time-delay fuse from the Limitron family, designed to provide reliable branch circuit protection for industrial power distribution systems. It is rated for 600V AC/DC systems with a 25A current rating and a high 200kA interrupting capacity at 600V. The fuse features a robust, single-barrel construction with dimensions of 2.25 in x 0.81 in x 0.81 in and a weight of 1.15 lb, ensuring durability in demanding environments. It complies with key industry standards, including UL 248-8 and CSA C22.2 No. 248-8, and is certified for CE marking. Typical applications include protecting motor circuits, transformers, and feeders where high fault current availability and time-delay characteristics are required.

Key Features & Specifications
  • Type: Class J, time-delay, low-voltage power fuse, single barrel
  • Voltage Rating: 600V AC/DC
  • Current Rating: 25A
  • Dimensions: 2.25 in (L) x 0.81 in (H) x 0.81 in (W)
  • Standards: CE, UL 248-8 (Guide JDDZ), CSA C22.2 No. 248-8 (Class 1422-02)
  • Applications: Motor protection, transformer protection, feeder protection
  • AIC rating: 200kA @ 600V
  • Class Rating: J
  • Diameter: 0.81 in
  • Weight: 1.15 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712630252
  • GTIN: 00051712630252
