Eaton Bussmann JKS-2 - Class J Fuse 2A 600V (200kA AIC)

Bussmann
Price
Save $58.31
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

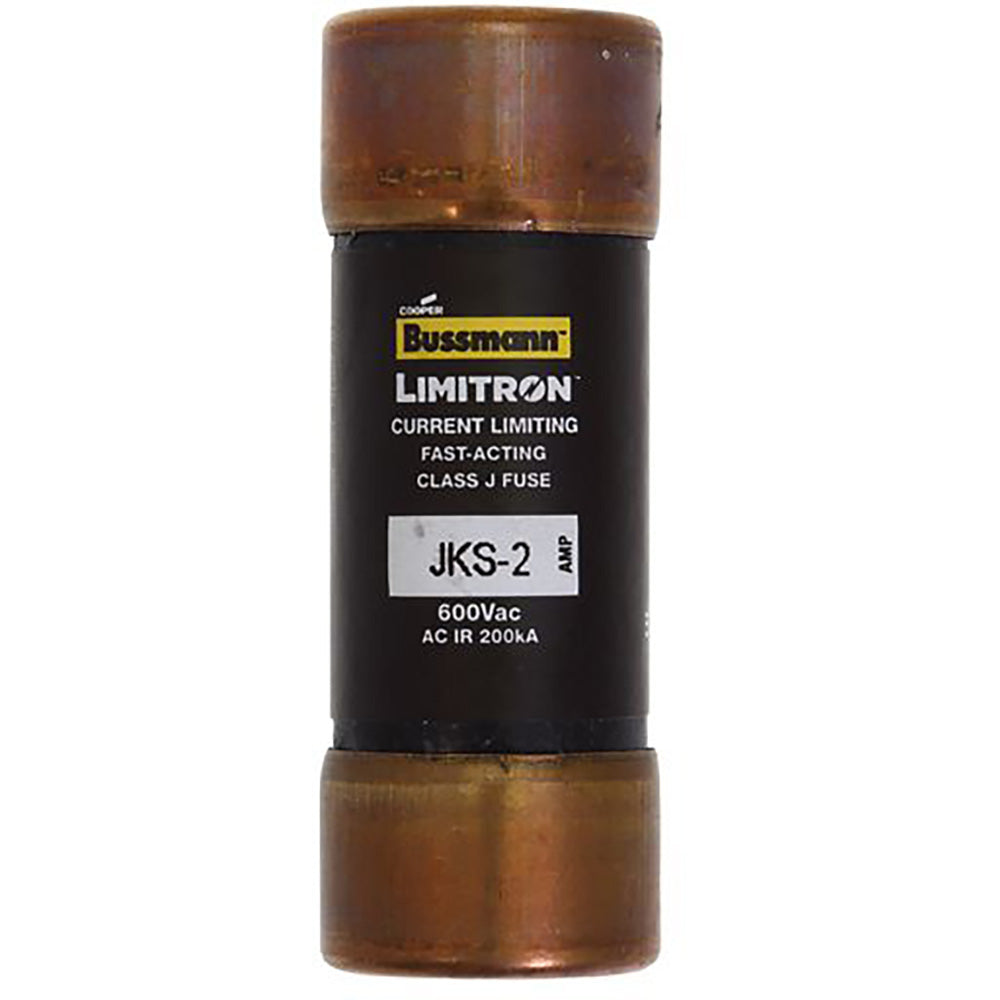

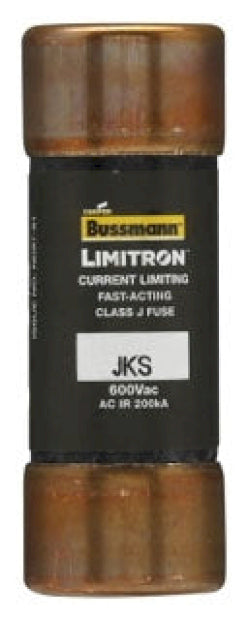

Eaton Bussmann JKS-2 is a low-voltage current-limiting fuse designed for branch circuit and feeder protection in industrial electrical systems. It provides a 2A current rating and a 600V AC voltage rating for reliable overcurrent protection. The fuse features a compact, single-barrel construction with dimensions of 0.81 in x 2.25 in x 0.81 in and a Class J time-delay characteristic. It is certified to UL, CSA, and CE standards and offers a high 200kA interrupting rating at 600V AC. Typical applications include the protection of motors, transformers, and conductors in panelboards and switchgear.

Key Features & Specifications
  • Type: JKS, Low Voltage, Current-Limiting, Time-Delay, Single Barrel
  • Voltage Rating: 600V AC
  • Current Rating: 2A
  • Dimensions: 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
  • Weight: 1.15 lb
  • Diameter: 0.81 in
  • Class Rating: J
  • Barrels: 1
  • Certification: UL, CSA, CE
  • AIC Rating: 200kA @ 600V AC
  • Family: LIMITRON


Product Identification
  • UPC: 051712630023
  • GTIN: 00051712630023
