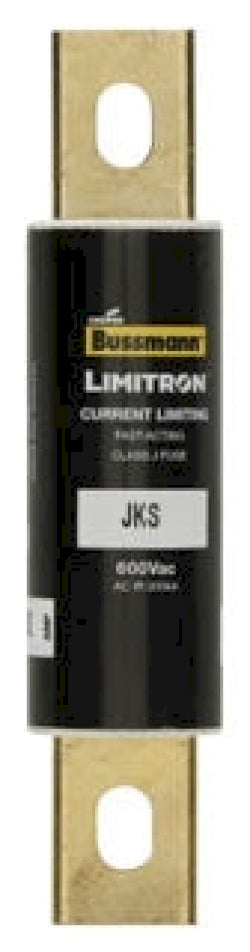

Bussmann JKS-150 - Class J Time-Delay Fuse 150A (200kA AIC @ 600V)

Bussmann JKS-150 is a Class J time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and 150A current rating, providing reliable overcurrent protection with high interrupting capacity. The fuse construction includes a single-barrel design with 1.5-inch diameter and 5-3/4-inch length, weighing 1 lb for robust physical characteristics. It meets UL 248-8, CSA Class 1422-02, and CE standards for safety and performance compliance. Typical applications include motor branch circuits, transformers, and industrial control panels where time-delay characteristics prevent nuisance tripping during temporary overload conditions.

Key Features & Specifications

• Type: Class J time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 150A
• Dimensions: 5-3/4 inch length, 1.5 inch diameter
• Standards: UL 248-8, CSA Class 1422-02, CE certified
• Applications: Motor circuits, transformers, industrial control panels
• AIC rating: 200kA @ 600V
• Class Rating: J
• Barrels: 1
• Weight: 1 lb
• Family: LIMITRON
• Country of Origin: China

Product Identification

• UPC: 051712631501
• GTIN: 00051712631501
