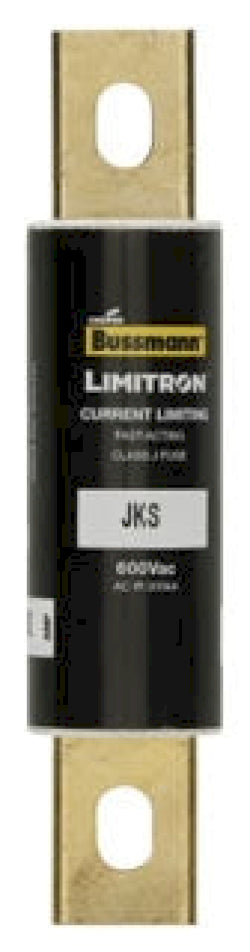

Bussmannn JKS-125 - Class J Fuse 125A (200kA@600V Interrupt Rating)

Bussmannn JKS-125 is a Class J low-voltage fuse designed for circuit protection in industrial power distribution systems. It features a 600V AC rating with a 125A current capacity and a high interrupting rating of 200kA at 600V for reliable fault protection. The fuse measures 5-3/4 inches in length with a 1.5-inch diameter barrel construction, weighing 1 lb, and meets CE/UL-248-8 and CSA Class 1422-02 safety standards. Its LIMITRON fast-acting design provides precise overload protection for motor circuits, transformers, and feeder applications in commercial and industrial environments.

Key Features & Specifications

• Type: Class J fast-acting LIMITRON fuse with single barrel design
• Voltage Rating: 600V AC
• Current Rating: 125A
• Dimensions: 5-3/4 in length x 1.5 in diameter
• Standards: CE/UL-248-8, CSA Class 1422-02
• Applications: Motor circuits, transformers, industrial feeders
• Class Rating: J
• AIC rating: 200kA@600V
• Weight: 1 lb
• Country of Origin: China

Product Identification

• UPC: 051712631259
• GTIN: 00051712631259
