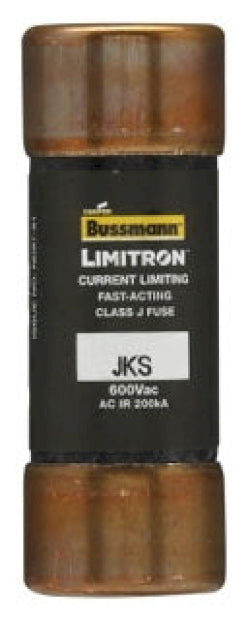

Bussmann JKS-1 - Class J Time-Delay Fuse 1A 600V (200kA AIC Rating)

Bussmann JKS-1 is a Class J low-voltage fuse from the LIMITRON family designed to provide reliable circuit protection in industrial applications. It features a 600V AC voltage rating with a 1A current rating and offers high interrupting capacity of 200kA at 600V. The fuse construction includes a single barrel design with 0.81-inch diameter and 2-1/4 inch length, weighing 2.15 lb, manufactured in Mexico to ensure consistent quality. It meets CE, UL-248-8 Guide JDDZ, and CSA Class 1422-02 standards for safety and performance compliance. Typical applications include motor branch circuit protection, industrial control panels, and power distribution systems where precise overcurrent protection is required.

Key Features & Specifications

• Type: Class J time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 2-1/4 inch length, 0.81 inch diameter
• Standards: CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
• Applications: Motor branch circuits, industrial control panels, power distribution systems
• AIC rating: 200kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 2.15 lb
• Family: LIMITRON
• Country of Origin: Mexico

Product Identification

• UPC: 051712630016
• GTIN: 00051712630016
