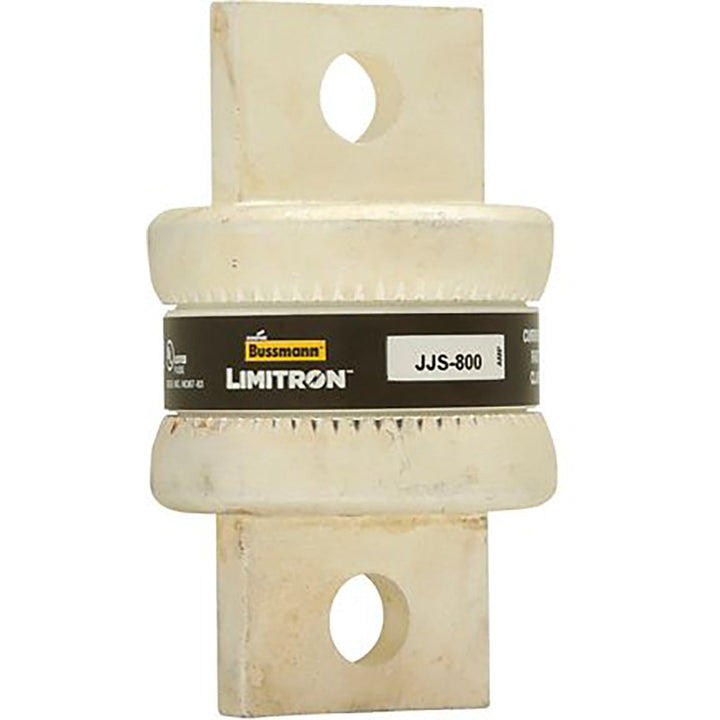

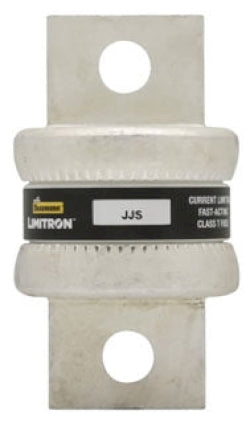

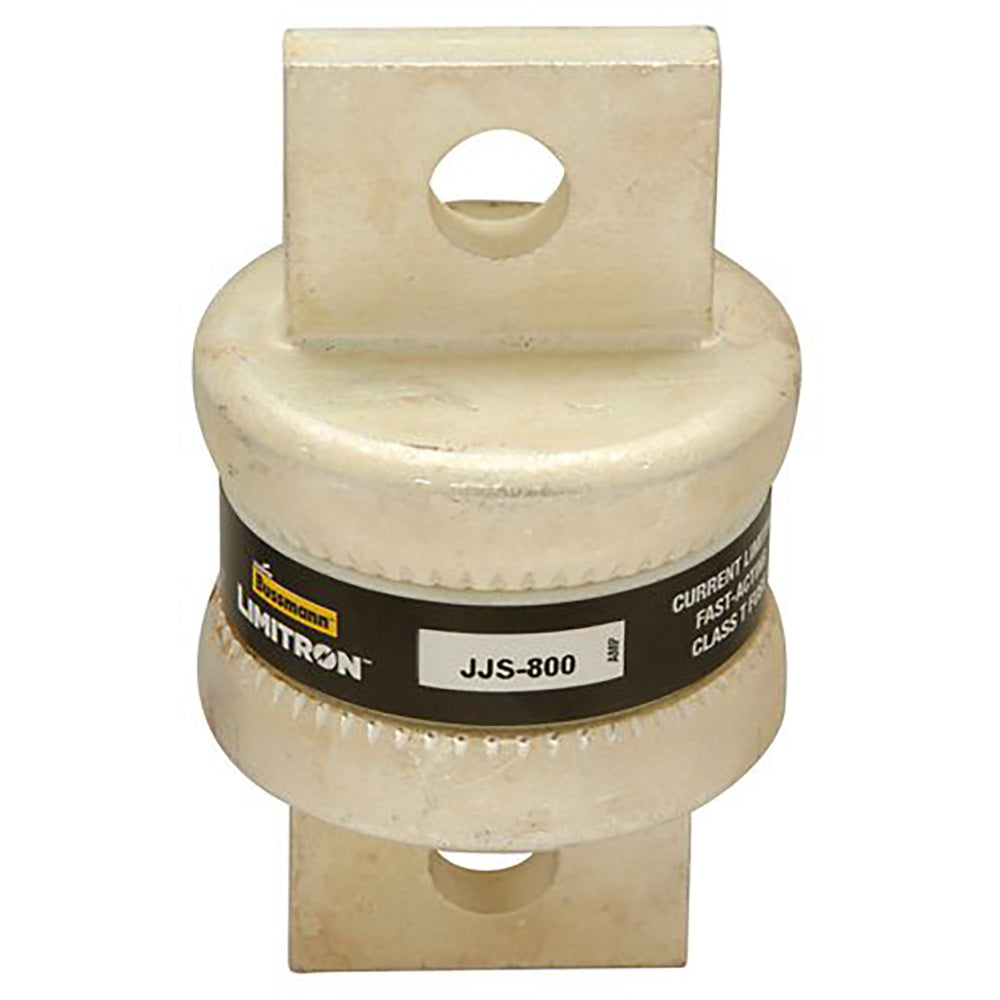

Bussmannn JJS-800 - Class T Fuse 800A (200kA@600V Interrupt Rating)

Bussmannn JJS-800 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 600V AC rating with an 800A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The fuse measures 3-3/8 inches in length with a 1.75-inch diameter, constructed with a single-barrel design and weighing 4 lb for robust performance. Certified to UL-248-15 and CSA Class 1422-02 standards, this T-Tron series fuse is engineered for demanding environments including motor control centers and power distribution systems.

Key Features & Specifications

• Type: Class T time-delay fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 800A
• Dimensions: 3-3/8 in length x 1.75 in diameter
• Standards: CE/UL-248-15 Guide JDDZ, CSA Class 1422-02
• Applications: Industrial power distribution, motor protection
• Class Rating: T
• AIC rating: 200kA@600V
• Weight: 4 lb
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 051712628181
• GTIN: 00051712628181
