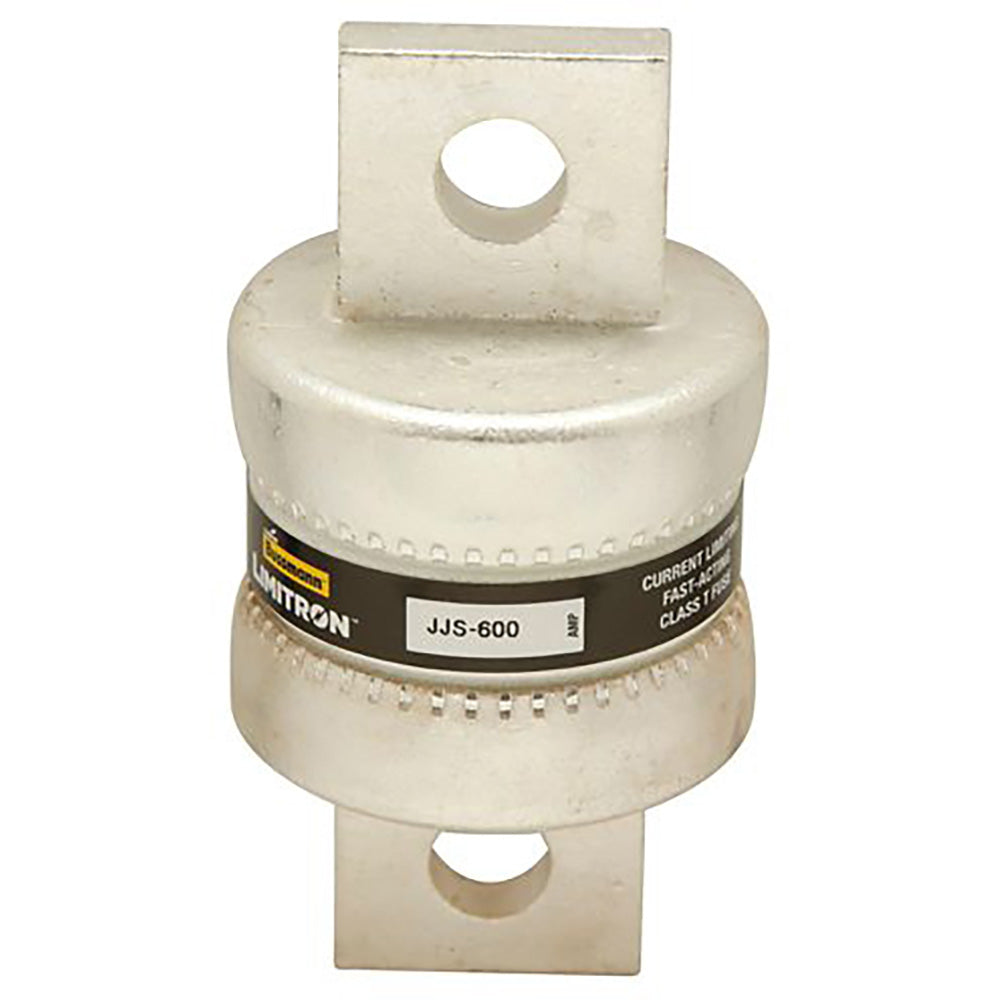

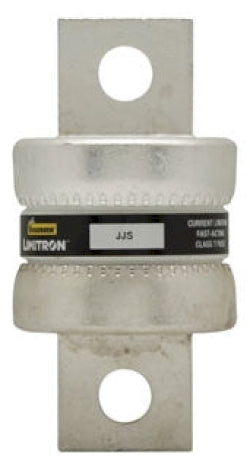

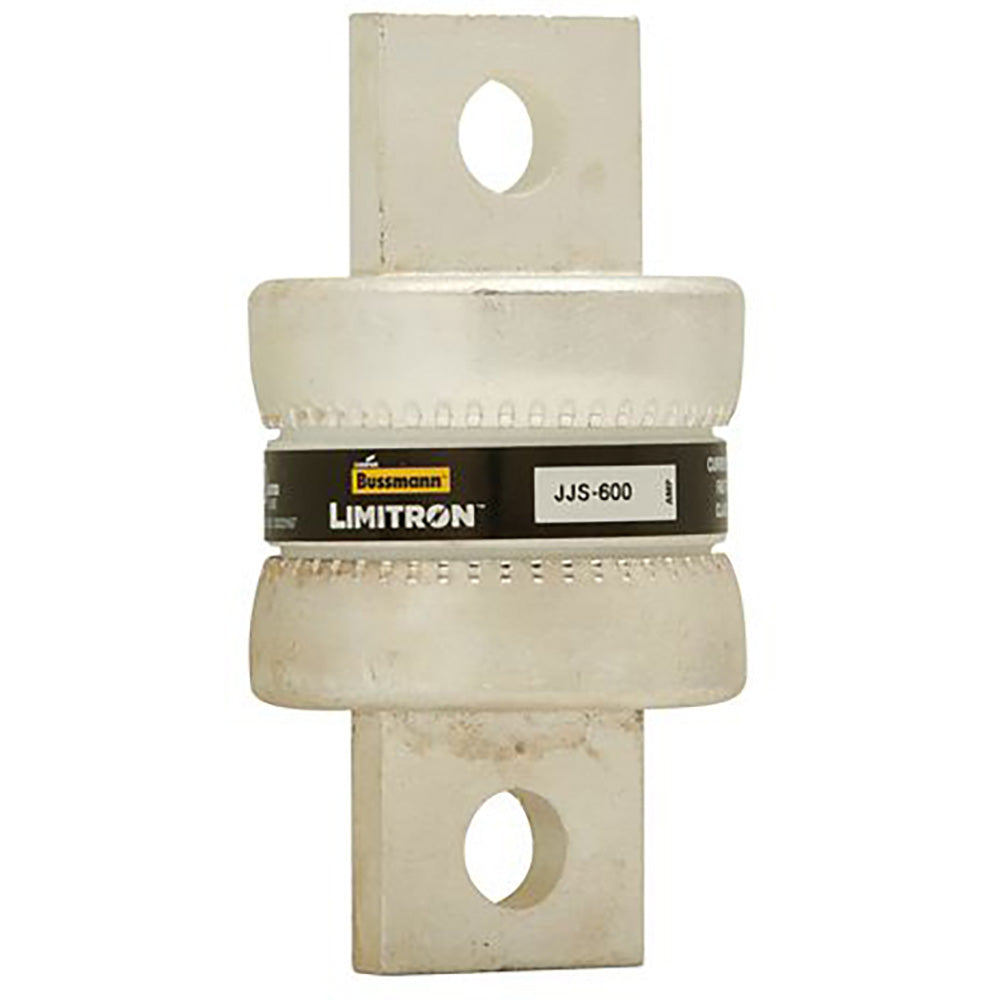

Bussmann JJS-600 - Class T Fuse 600A (200kA AIC @600V)

Bussmann JJS-600 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial power systems. It features a 600V AC voltage rating and 600A current rating with exceptional 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse construction includes a single-barrel design with 1.25-inch diameter and 3-1/16-inch length, weighing 3 lb for robust physical characteristics. It complies with UL 248-15, CSA Class 1422-02, and CE standards for industrial safety requirements. Typical applications include main service entrances, feeder circuits, and branch circuit protection in commercial and industrial facilities.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 3-1/16 inch length, 1.25 inch diameter
• Weight: 3 lb
• Standards: UL 248-15, CSA Class 1422-02, CE certified
• Applications: Industrial power systems, service entrances, feeder circuits
• AIC rating: 200kA@600V
• Class Rating: T
• Barrels: 1
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712628051
• GTIN: 00051712628051
