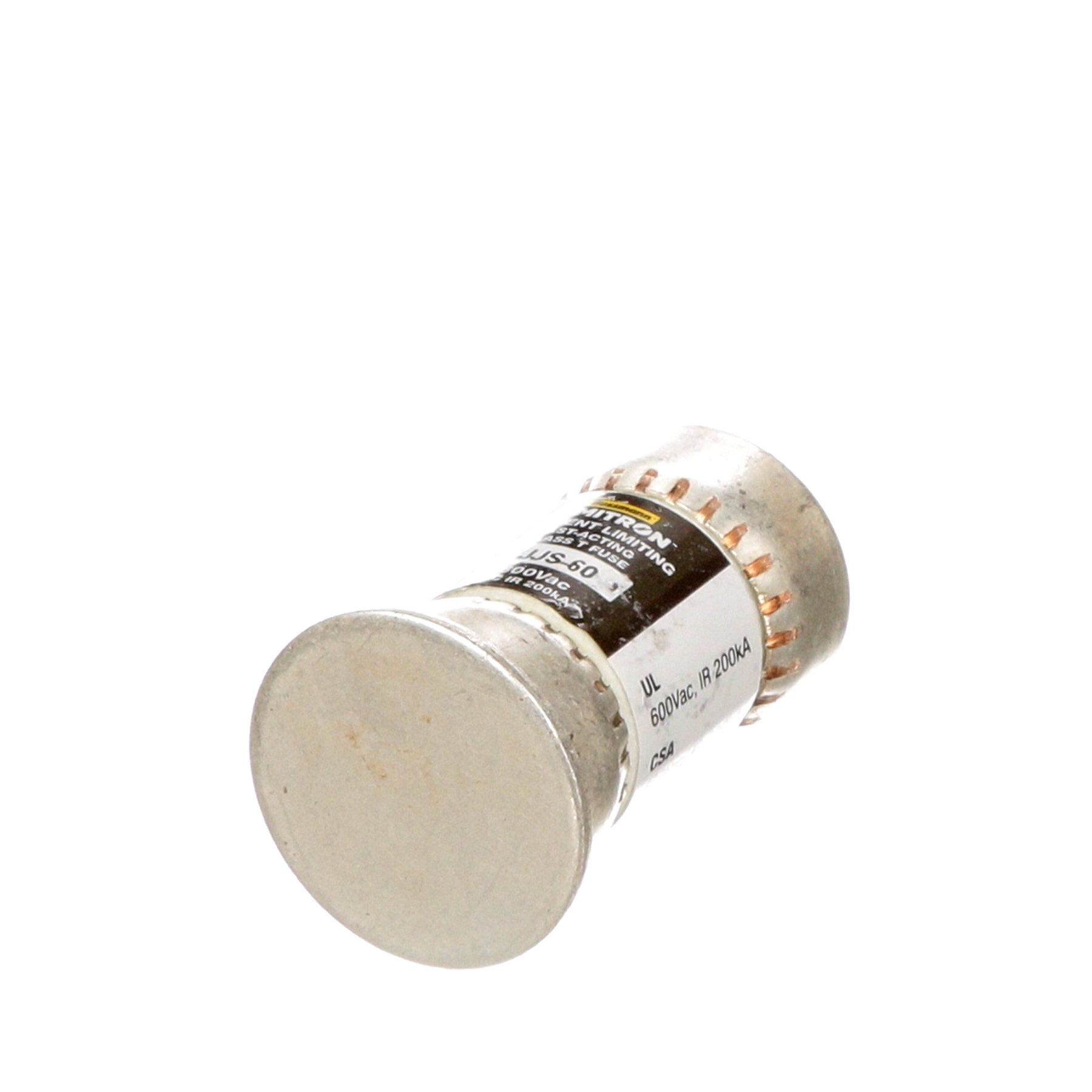

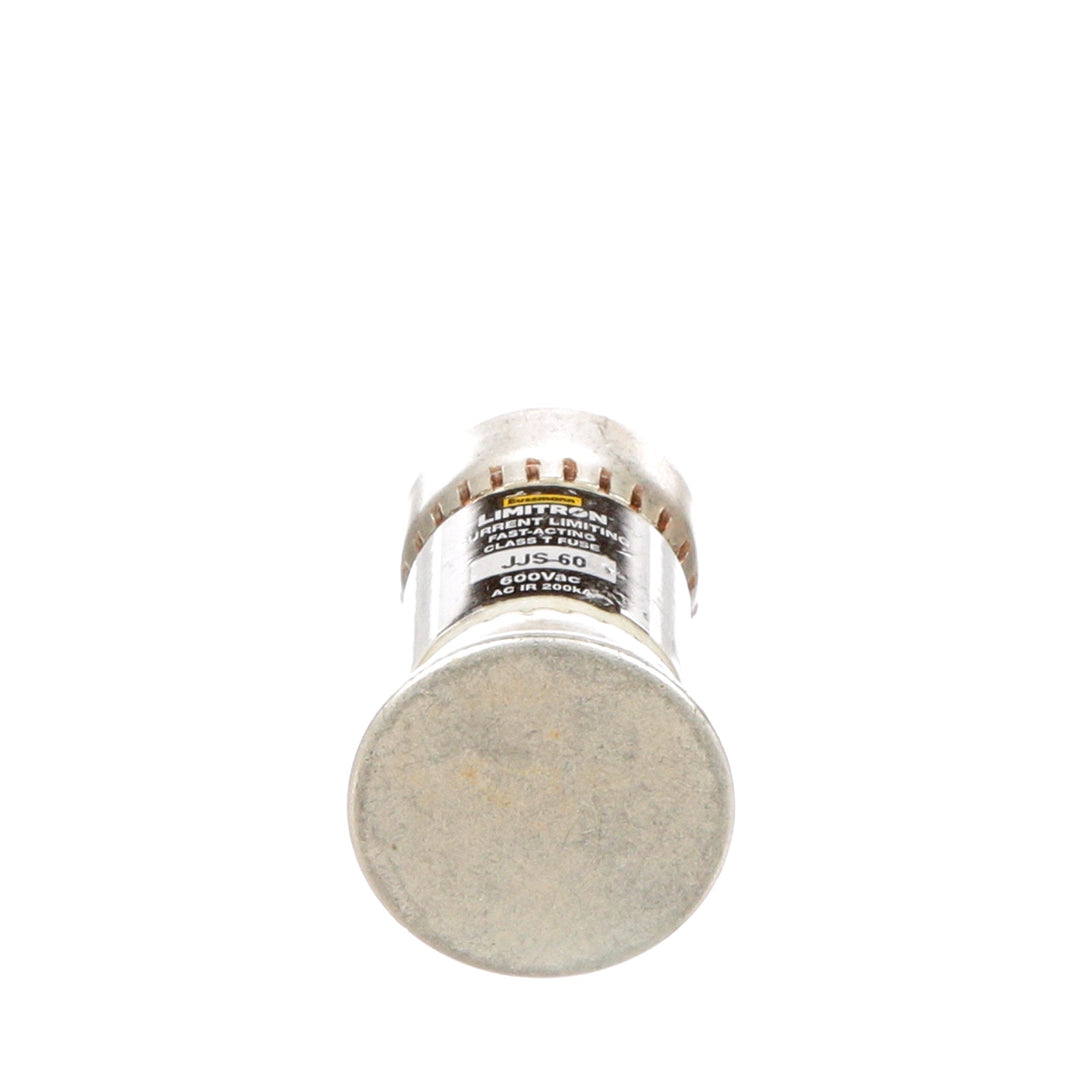

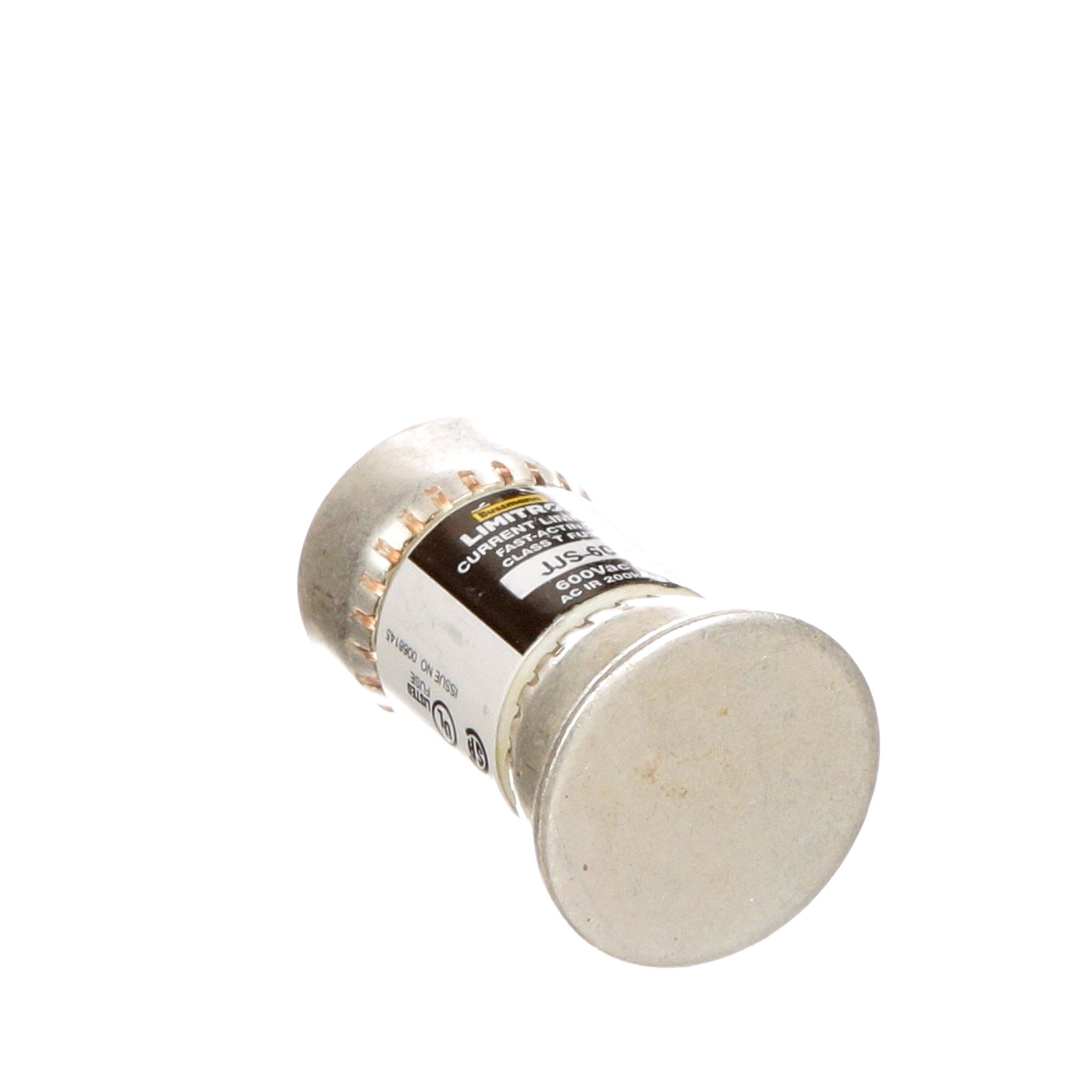

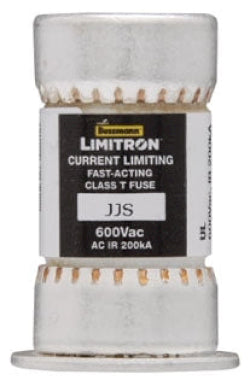

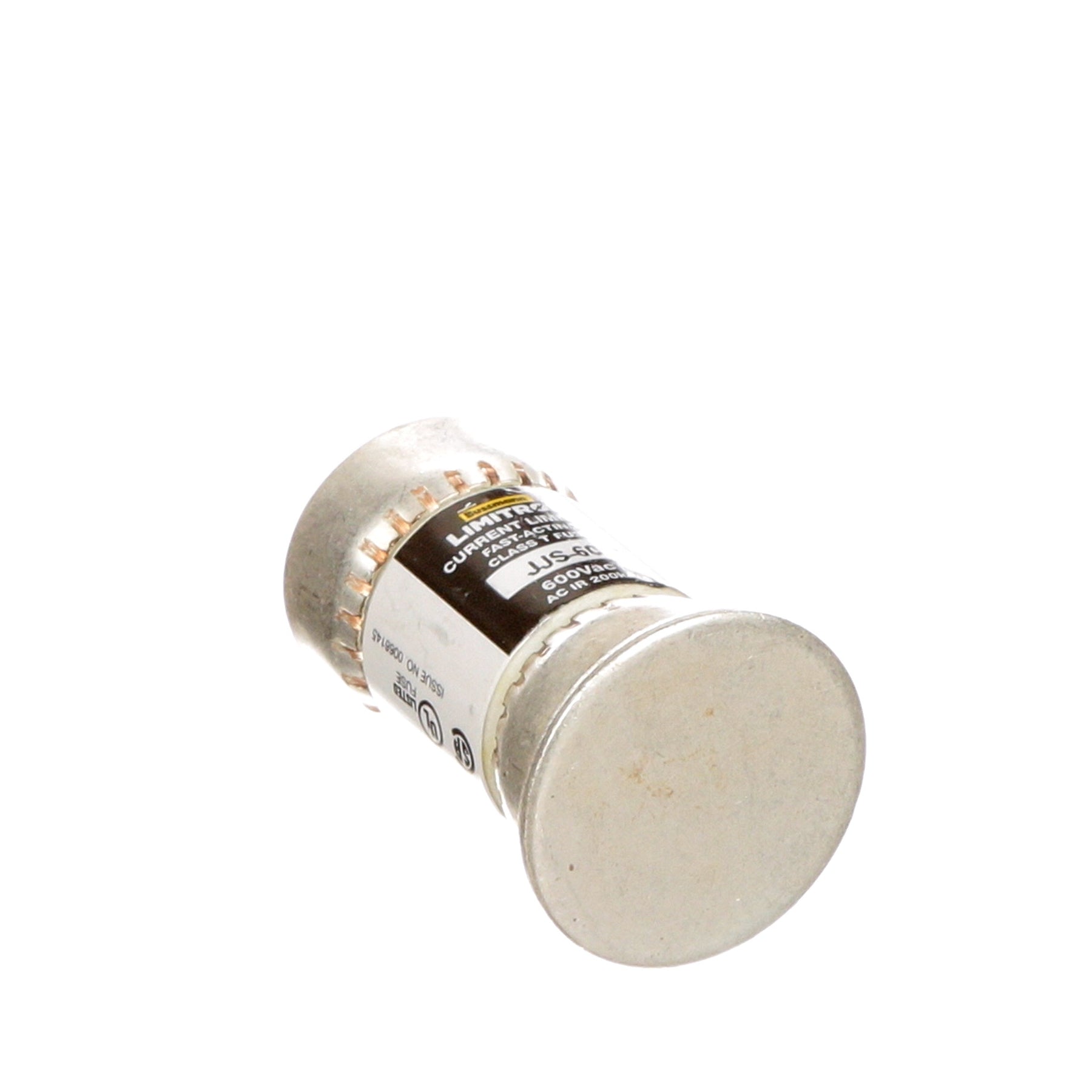

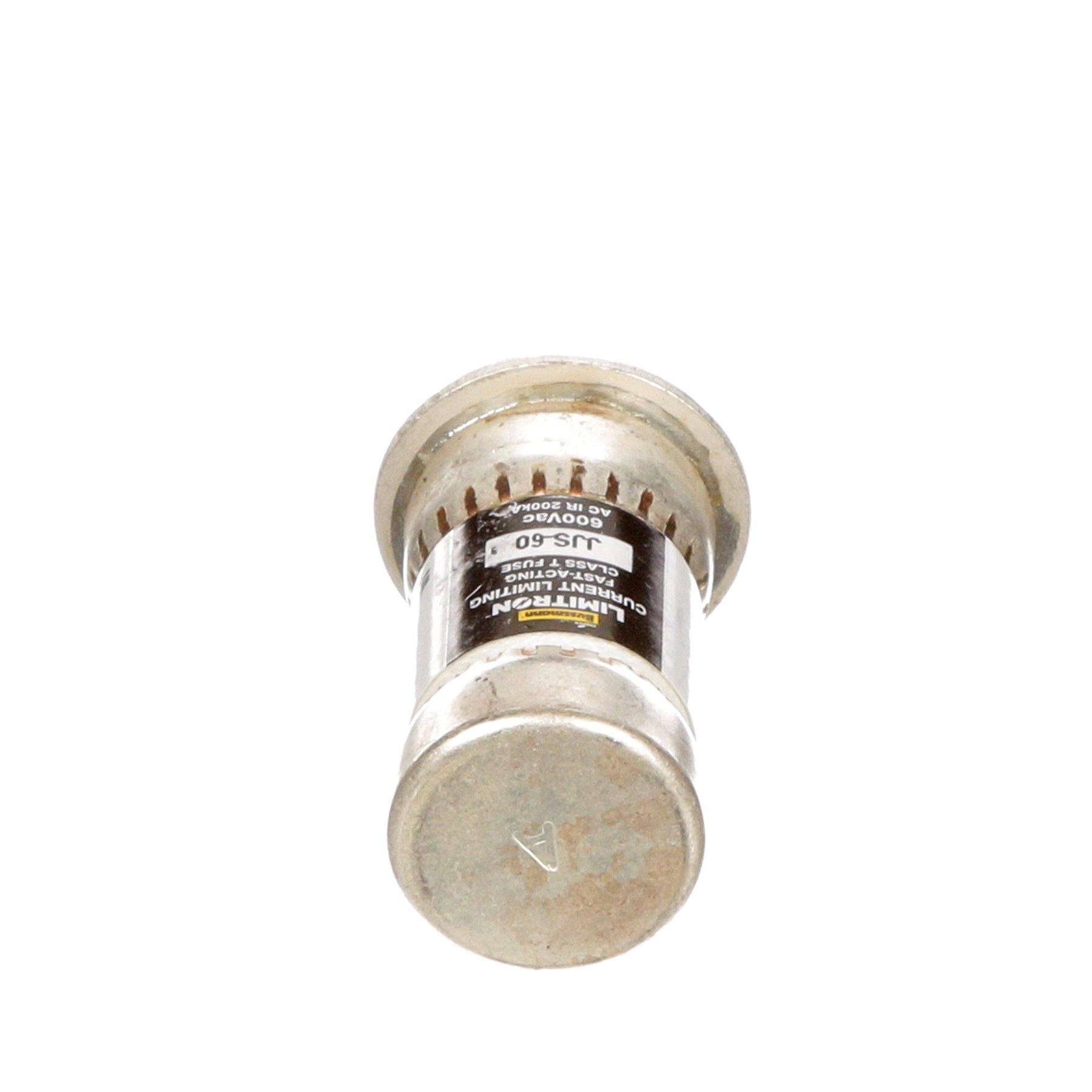

Bussmann JJS-60 - T-Class Time-Delay Fuse 60A (200kA AIC @ 600V)

Bussmann JJS-60 is a low-voltage time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This 60A rated fuse operates at 600V AC with a high 200kA interrupting capacity, providing reliable overload and short-circuit protection. The single-barrel construction features a compact design measuring 1-9/16 inches in length with a 0.81-inch diameter, manufactured to exacting standards for consistent performance. Certified to UL 248-15 and CSA Class 1422-02 requirements, this T-class fuse meets rigorous industry safety standards. Typical applications include motor branch circuits, transformer protection, and industrial control panels where time-delay characteristics prevent nuisance tripping during temporary overload conditions.

Key Features & Specifications

• Type: JJS time-delay fuse, low-voltage protection
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 1-9/16 inches length, 0.81 inches diameter
• Standards: UL 248-15, CSA Class 1422-02, CE certified
• Applications: Motor circuits, transformer protection, industrial controls
• AIC rating: 200kA@600V
• Class Rating: T
• Barrels: 1
• Weight: 1 lb
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712628013
• GTIN: 00051712628013
