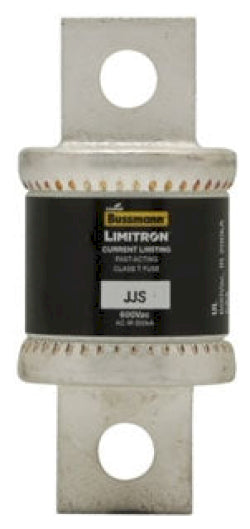

Bussmann JJS-350 - Class T Fuse 350A (200kA AIC @600V)

The Bussmann JJS-350 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 600V AC voltage rating with a 350A current rating, providing reliable overcurrent protection. The fuse construction includes a single-barrel design measuring 1 inch in diameter and 3-5/8 inches in length, with a weight of 1 lb. It meets CE, UL-248-15 Guide JDDZ, and CSA Class 1422-02 standards, ensuring compliance with industry requirements. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high fault current interruption up to 200kA at 600V is necessary.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 350A
• Dimensions: 1" diameter x 3-5/8" length
• Standards: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 200kA@600V
• Class Rating: T
• Barrels: 1
• Weight: 1 lb
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712628136
• GTIN: 00051712628136
