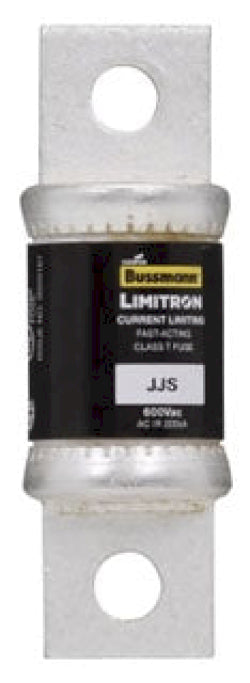

Bussmann JJS-200 - Class T Fuse 200A 600V (200kA AIC Rating)

Bussmann JJS-200 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 200A current rating and 600V voltage rating with a 200kA interrupting rating at 600V for reliable short-circuit protection. The fuse construction includes a single-barrel design with 0.88-inch diameter and 3-1/4 inch length, weighing 1 lb for robust performance. It complies with CE, UL-248-15 Guide JDDZ, and CSA Class 1422-02 standards for safety and reliability. Typical applications include industrial power distribution systems, motor circuits, and equipment protection where high fault current interruption is required.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 3-1/4 inch length, 0.88 inch diameter
• Standards: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
• Applications: Industrial power distribution, motor protection, equipment circuits
• AIC rating: 200kA@600V
• Class Rating: T
• Barrels: 1
• Weight: 1 lb
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712628037
• GTIN: 00051712628037
