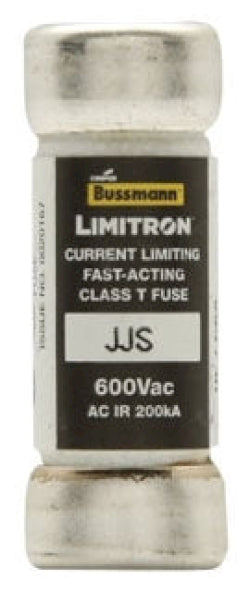

Bussmann JJS-10 - Class T Fast-Acting Fuse 10A 600V (200kA AIC Rating)

The Bussmann JJS-10 is a Class T low-voltage fast-acting fuse designed to provide reliable circuit protection in industrial power distribution systems. It features a 10A current rating and 600V voltage rating with a high 200kA interrupting capacity at 600VAC for effective short-circuit protection. The fuse construction includes a single-barrel design with 0.56-inch diameter and 1-1/2-inch length, weighing 1 lb for robust performance. It complies with UL 248-15 and CSA Class 1422-02 standards through CE/UL certification. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where fast-acting protection is required.

Key Features & Specifications

• Type: Class T fast-acting low-voltage fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 1-1/2 inch length, 0.56 inch diameter
• Standards: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
• Applications: Industrial power distribution, motor circuits, feeder protection
• AIC rating: 200kA@600V
• Class Rating: T
• Barrels: 1
• Weight: 1 lb
• Certification: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712628105
• GTIN: 00051712628105
