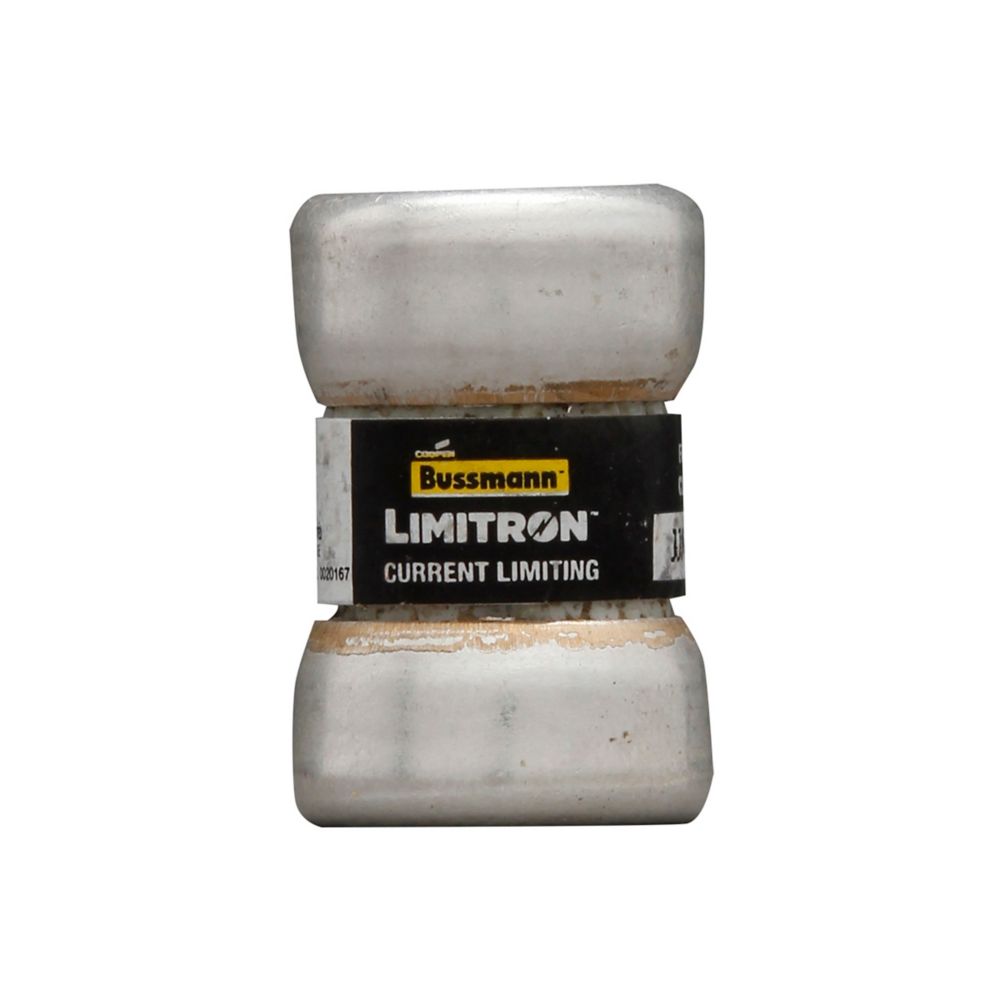

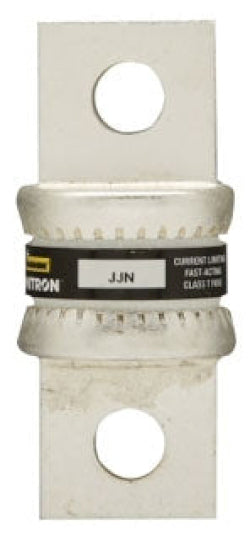

Bussmann JJN-60 - Class T Fuse 60A 300V (200kA AIC Rating)

Bussmann JJN-60 is a Class T low-voltage fuse designed for high-interrupting capacity circuit protection in industrial applications. It features a 60A current rating and 300V voltage rating with an impressive 200kA interrupting capacity at rated voltage for reliable fault protection. The fuse construction utilizes a single-barrel design with 0.56-inch diameter and compact dimensions, manufactured to meet CE, UL-248-15 Guide JDDZ, and CSA Class 1422-02 standards. This Eaton T-Tron series fuse provides robust protection for power distribution systems, motor circuits, and industrial control equipment where high fault current interruption is critical.

Key Features & Specifications

• Type: Class T low-voltage fuse, single-barrel construction
• Voltage Rating: 300V AC
• Current Rating: 60A
• Dimensions: 0.56" diameter x 7/8" length
• Standards: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02
• Applications: Industrial power distribution, motor protection, control circuits
• AIC rating: 200kA@300V
• Class Rating: T
• Barrels: 1
• Weight: 1 lb
• Family: T-Tron
• Country of Origin: Mexico

Product Identification

• UPC: 051712627016
• GTIN: 00051712627016
