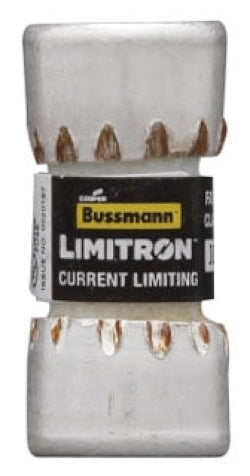

Eaton Bussmann JJN-2 - Class T Fuse 2A 300V (200kA Interrupting Rating)

Eaton Bussmann JJN-2 is a Class T low-voltage fuse designed for providing high-interrupting capacity circuit protection in industrial electrical systems. It features a 300V AC voltage rating and a 2A current rating, engineered to safely interrupt fault currents up to 200kA. The fuse is constructed as a compact, single-barrel component with dimensions of 0.88 inches in length and 0.41 inches in diameter, contributing to a robust and space-efficient design. It complies with industry standards for Class T fuses, ensuring reliable performance in demanding applications such as panelboards, switchboards, and industrial control circuits where high fault current protection is critical.

Key Features & Specifications

• Type: Class T, Low Voltage, Fast-Acting, Single Barrel Fuse
• Voltage Rating: 300V AC
• Current Rating: 2A
• Dimensions: 0.88" L x 0.41" W x 0.41" H (22.35mm x 10.41mm x 10.41mm)
• Diameter: 0.41 inches (10.41mm)
• Weight: 1 lb
• Standards: Class T
• Applications: Industrial panelboards, switchboards, control circuits
• AIC Rating: 200kA @ 300V AC
• Barrels: 1
• Family: T-Tron
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712627146
• GTIN: 00051712627146
