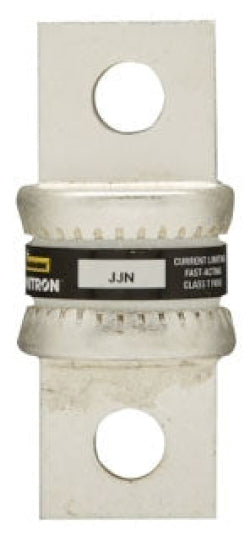

Bussmann JJN-100 - Class T Fuse 100A (200kA AIC @300V)

Bussmann
Price
Save $609.59
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann JJN-100 is a low voltage fuse designed for providing reliable circuit protection in industrial power distribution systems. This Class T fuse features a 100A current rating and 300V voltage rating with a high 200kA interrupting capacity at 300V for superior short-circuit protection. The single-barrel construction measures 2-5/32 inches in length with a 0.75-inch diameter and weighs 1 lb, built to withstand demanding industrial environments. It complies with CE/UL-248-15 Guide JDDZ and CSA Class 1422-02 standards, ensuring safe operation in various industrial applications including motor control centers, panelboards, and switchboards where high-interrupting capacity protection is required.

Key Features & Specifications
  • Type: Class T low voltage fuse, single barrel construction
  • Voltage Rating: 300V AC
  • Current Rating: 100A
  • Dimensions: 2-5/32 inch length, 0.75 inch diameter
  • Standards: CE/UL-248-15 Guide JDDZ, CSA Class 1422-02
  • Applications: Industrial power distribution, motor control centers, panelboards
  • AIC rating: 200kA@300V
  • Class Rating: T
  • Barrels: 1
  • Weight: 1 lb
  • Family: T-Tron
  • Certification: CE/UL-248-15 Guide JDDZ/CSA Class 1422-02


Product Identification
  • UPC: 051712627023
  • GTIN: 00051712627023
