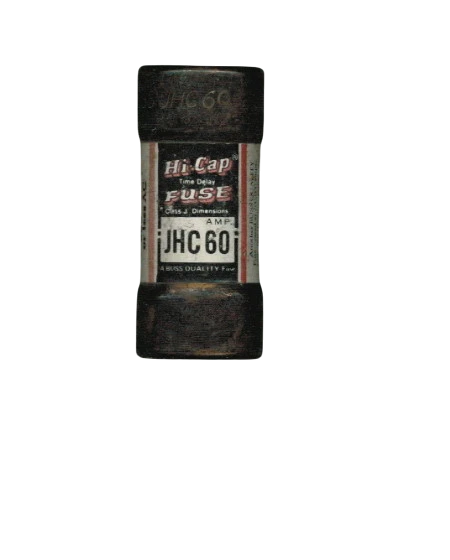

Bussmann JHC60 - Class J Time-Delay Fuse 60A (200kA AIC @600V)

The Bussmann JHC60 is a Class J time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with a 60A current rating, providing reliable overload and short-circuit protection. Constructed as a single-barrel fuse with bolt-in connection terminals, this 5.19 lb device offers high interrupting capacity up to 200kA at 600V. The fuse complies with industry standards for Class J fuses, ensuring proper coordination with protective devices. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high fault current interruption is required.

Key Features & Specifications

• Type: Class J time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: Standard Class J fuse dimensions
• Standards: UL/CSA Class J fuse standards
• Applications: Industrial power distribution, motor circuits, feeder protection
• AIC rating: 200kA@600V
• Connection: Bolt-In
• Barrels: 1
• Class Rating: J
• Weight: 5.19 lb
• Family: Hi Cap
• Item Subcategory: Low Voltage
