Square D JGL36250SA - Molded Case 250A 600V 3-Pole Breaker
Square D JGL36250SA - Molded Case 250A 600V 3-Pole Breaker

Square D JGL36250SA - Molded Case 250A 600V 3-Pole Breaker

Square D
Price
Save $1,976.22
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

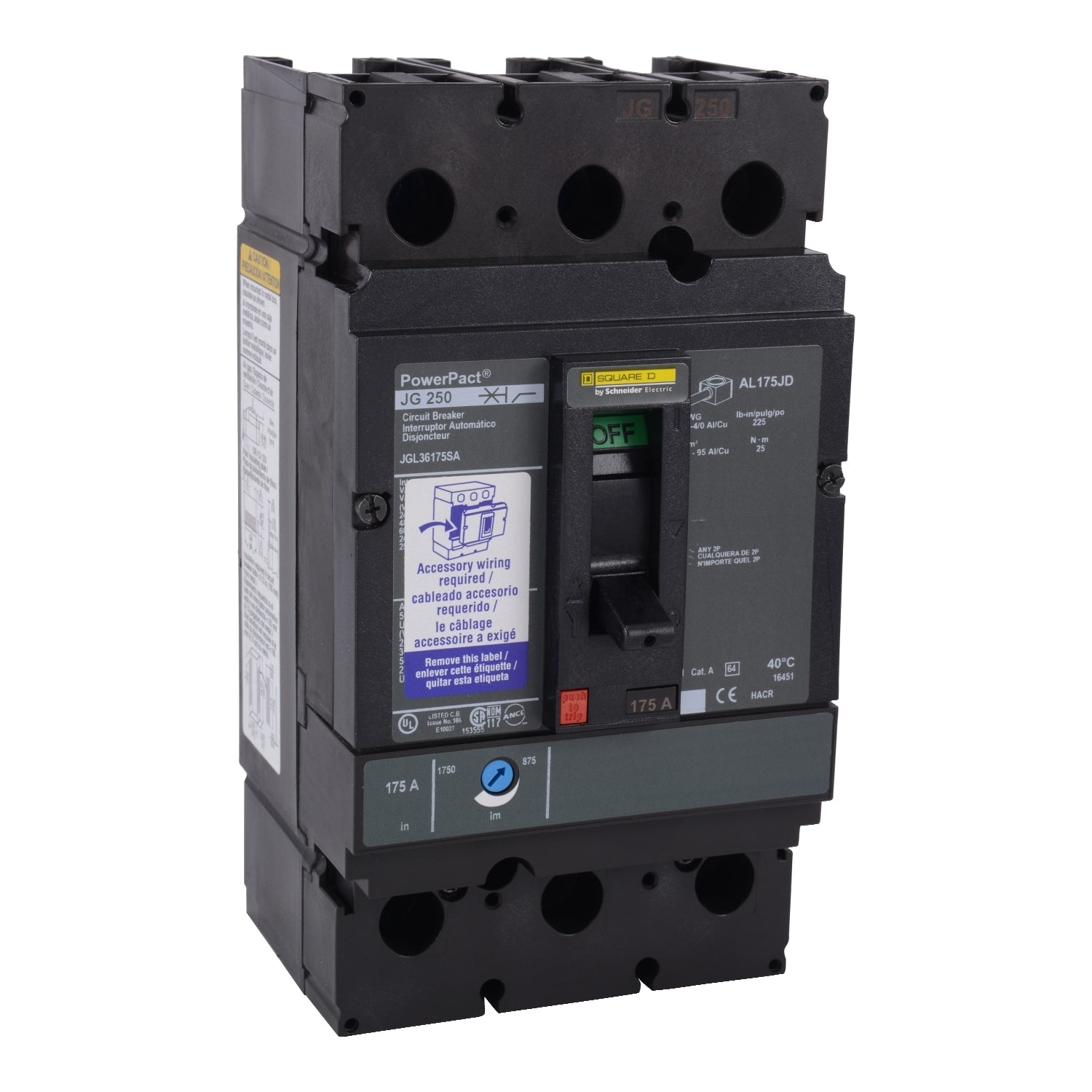

The Square D JGL36250SA is a 3-pole molded case circuit breaker from the Powerpact family, designed to provide thermal-magnetic protection for electrical distribution systems. It is rated for 250A at 600V AC, with an AIC rating of 35kA at 480V, and features LI (Long-Time and Instantaneous Trip) functions for precise overcurrent protection. This feed-thru connection breaker measures 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) and weighs 5 lb, with wire size compatibility of AWG 3/0 to 350 kcmil for aluminum or copper terminals. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, operating within a temperature range of -13°F to 158°F (-25°C to 70°C). Typical industrial applications include motor control centers, panelboards, and switchboards requiring reliable branch circuit protection in three-phase systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic, 3-Pole
  • Voltage Rating: 600V AC
  • Current Rating: 250A
  • Dimensions: 7.5 in (191 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Motor control centers, panelboards, switchboards
  • Switch Type: Molded Case
  • Configuration: 3-Phase
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: Not specified
  • Phase: 3
  • Voltage: 600V
  • Amperage: 250A
  • AIC rating: 35kA@480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: Not specified
  • Trip Type: Thermal Magnetic
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: 350 kcmil
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not specified
  • Class Rating: Not specified
  • Diameter: Not specified
  • Velocity: Not specified
  • Clip Center: Not specified
  • Clas: Not specified
  • Mounting: Not specified
  • Hz: Not specified
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not specified
  • Bucket Style: Not specified
  • Bucket Type: Not specified
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not specified
  • Coil Voltage Minimum: Not applicable
  • Wire: AWG 3/0...350 kcmil
  • Amperage Maximum: 250A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not specified
  • Wire Size: AWG 3/0...350 kcmil
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Not specified
  • Terminal Connection: Feed-Thru
  • Frequency Rating: Not specified
  • Phase Connection: 3-Phase
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: Not specified
  • Installation Type: Not specified
  • Item QTY: Not specified
  • Nema Starter Size: Not specified
  • Breaker Frame: Not specified
  • Current Rating: 250A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 7.85902E+11
