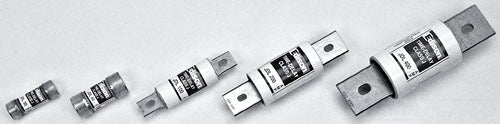

Edison Fuses JDL7 - Class J Time-Delay 7A 600V Fuse
Edison Fuses JDL7 - Class J Time-Delay 7A 600V Fuse

Edison Fuses JDL7 - Class J Time-Delay 7A 600V Fuse

Edison Fuses
Price
Save $-30.07
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Edison Fuses JDL7 is a 7 amp, 600 volt Class J time-delay current-limiting fuse designed for reliable circuit protection in industrial and commercial systems. It features a dual-element construction providing a minimum 10-second time-delay at 500% overload to minimize nuisance openings from temporary surges, with a high interrupting rating of 200kA RMS symmetrical. The fuse measures 4.63 inches in length by 1.13 inches in height and width, weighs 1 lb, and utilizes a cartridge mounting style with a 13/32 inch ferrule diameter. It complies with UL 248-8, CSA C22.2 No. 248.8, CE, and RoHS standards, making it suitable for backup motor protection and other high-performance fusing applications.

Key Features & Specifications
  • Amperage: 7A
  • Voltage Rating: 600 VAC
  • Fuse Type: Class J, Dual-Element, Time-Delay
  • Interrupt Rating: 200kA RMS Symmetrical
  • Dimensions: 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
  • Weight: 1 lb
  • Mounting Type: Cartridge
  • Certifications: UL, CSA, CE, RoHS compliant
  • Non-indicating fuse
  • Current Limiting
  • Suitable for backup motor protection


Product Identification
  • UPC: 78433700232
  • GTIN: 00782634630104
