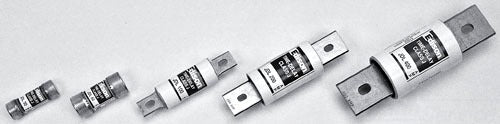

Eaton JDL1.25 - Low Voltage Fuse 1.25A (600V AC/250V DC)

Eaton JDL1.25 is a low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/250V DC voltage rating with a 1.25A current capacity, providing reliable overcurrent protection in compact applications. The fuse is constructed with durable ceramic body and brass end caps, measuring 10.3mm diameter x 38.1mm length, and complies with UL/CSA standards for safety. Its fast-acting characteristics make it suitable for protecting control circuits, transformers, and small motors in harsh industrial environments.

Key Features & Specifications

• Type: Fast-acting ceramic body fuse with brass end caps
• Voltage Rating: 600V AC/250V DC
• Current Rating: 1.25A
• Dimensions: 10.3mm diameter x 38.1mm length
• Standards: UL/CSA listed
• Applications: Control circuits, transformers, small motor protection
• Weight: 0.3 lb
• Fuse Class: JDL
• Interrupt Rating: 100kA at 600V AC

Product Identification

• UPC: 78263463001
• GTIN: 00782634630012
