Bussmann JCQ-1/2E - Medium Voltage Fuse 1A 5500V (80kA AIC Rating)
Bussmann JCQ-1/2E - Medium Voltage Fuse 1A 5500V (80kA AIC Rating)
Bussmann JCQ-1/2E - Medium Voltage Fuse 1A 5500V (80kA AIC Rating)
Bussmann JCQ-1/2E - Medium Voltage Fuse 1A 5500V (80kA AIC Rating)

Bussmann JCQ-1/2E - Medium Voltage Fuse 1A 5500V (80kA AIC Rating)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

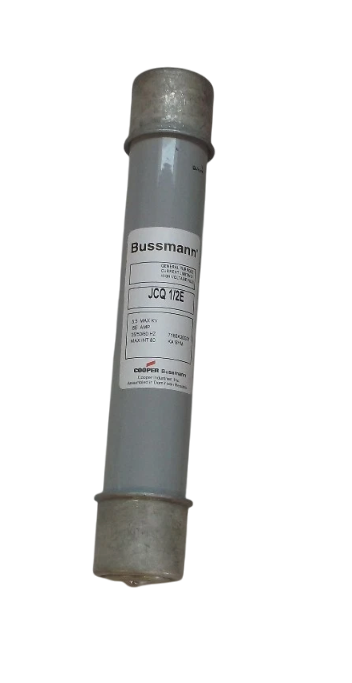

Bussmann JCQ-1/2E is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It features a 5500V AC voltage rating and 1A current rating with an 80kA interrupting capacity at 5.5kV for reliable circuit protection. The fuse construction includes a single-barrel design with ferrule connections, measuring 1.62 inches in diameter with 8.12-inch clip centers for standardized mounting. This Class E rated fuse complies with industry standards for medium voltage applications and is typically used in motor control centers, transformers, and feeder circuits where high-performance protection is required.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, single barrel, ferrule connection
  • Voltage Rating: 5500V AC
  • Current Rating: 1A
  • Dimensions: 1.62" diameter, 8.12" clip center spacing
  • Standards: Class E rated
  • Applications: Industrial power distribution, motor control centers, transformers
  • AIC rating: [email protected]
  • Connection: Ferrule
  • Barrels: 1
  • Class Rating: E
  • Diameter: 1.62 inches
  • Clip Center: 8.12 inches
  • Weight: 1 lb
  • Family: JCQ
  • Type: JCQ
  • Item Subcategory: Medium Voltage
