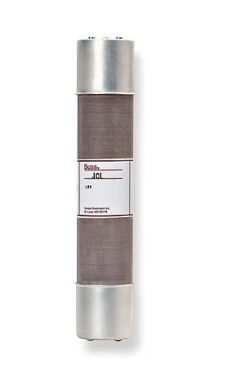

The Bussmann JCL-A-9R is a medium voltage current-limiting fuse designed to provide reliable overcurrent protection in industrial power distribution systems. It features a 5080V voltage rating and 200A current rating, engineered to interrupt high fault currents safely. The fuse construction utilizes a single-barrel design with a 3-inch diameter and weighs 10 lb, featuring a Class R rejection characteristic that prevents installation in non-current-limiting fuse holders. This Eaton JC Series component meets industry standards for medium voltage applications with an interrupting rating of 50kA at 4800V. Typical applications include motor circuit protection, transformer protection, and feeder circuit protection in industrial facilities and utility substations.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, single-barrel design with Class R rejection feature
  • Voltage Rating: 5080V AC
  • Current Rating: 200A
  • Dimensions: 3-inch diameter
  • Standards: Industry standards for medium voltage protection
  • Applications: Industrial power distribution, motor circuit protection, transformer protection
  • AIC rating: 50kA@4800V
  • Class Rating: R
  • Barrels: 1
  • Weight: 10 lb
  • Family: JC Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 005171269135
  • GTIN: 00051712691352
