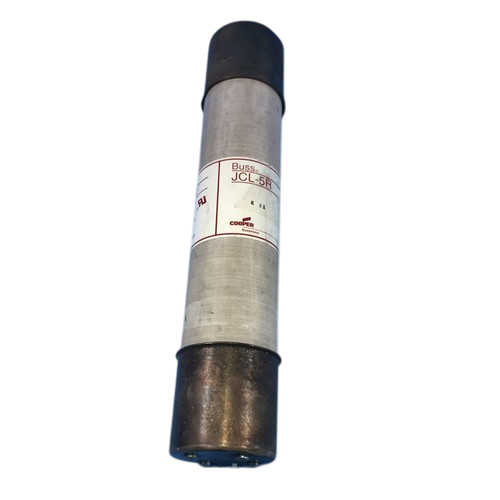

Bussmann JCL-A-5R - Medium Voltage Current-Limiting Fuse 150A@5080V (Class R, 50kA AIC)
Bussmann JCL-A-5R - Medium Voltage Current-Limiting Fuse 150A@5080V (Class R, 50kA AIC)
Bussmann JCL-A-5R - Medium Voltage Current-Limiting Fuse 150A@5080V (Class R, 50kA AIC)
Bussmann JCL-A-5R - Medium Voltage Current-Limiting Fuse 150A@5080V (Class R, 50kA AIC)

Bussmann JCL-A-5R - Medium Voltage Current-Limiting Fuse 150A@5080V (Class R, 50kA AIC)

Bussmann
Price
Save $644.39
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann JCL-A-5R is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. This Class R fuse features a 150A current rating and 5080V voltage rating, providing reliable overcurrent protection with a 50kA interrupting rating at 4800V. The single-barrel construction measures 3 inches in diameter and weighs 10 lb, engineered for durable performance in demanding environments. Manufactured to meet industry standards for medium voltage applications, this JC Series fuse is commonly used in motor control centers, transformers, and feeder circuits where high-interrupting capacity and current-limiting characteristics are required.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, Class R, single barrel construction
  • Voltage Rating: 5080V AC
  • Current Rating: 150A
  • Dimensions: 3" diameter
  • Standards: Industry standard medium voltage fuse compliance
  • Applications: Industrial power distribution, motor control centers, transformers, feeder circuits
  • AIC rating: 50kA@4800V
  • Class Rating: R
  • Barrels: 1
  • Weight: 10 lb
  • Family: JC Series


Product Identification
  • UPC: 05171269133
  • GTIN: 00051712691338
