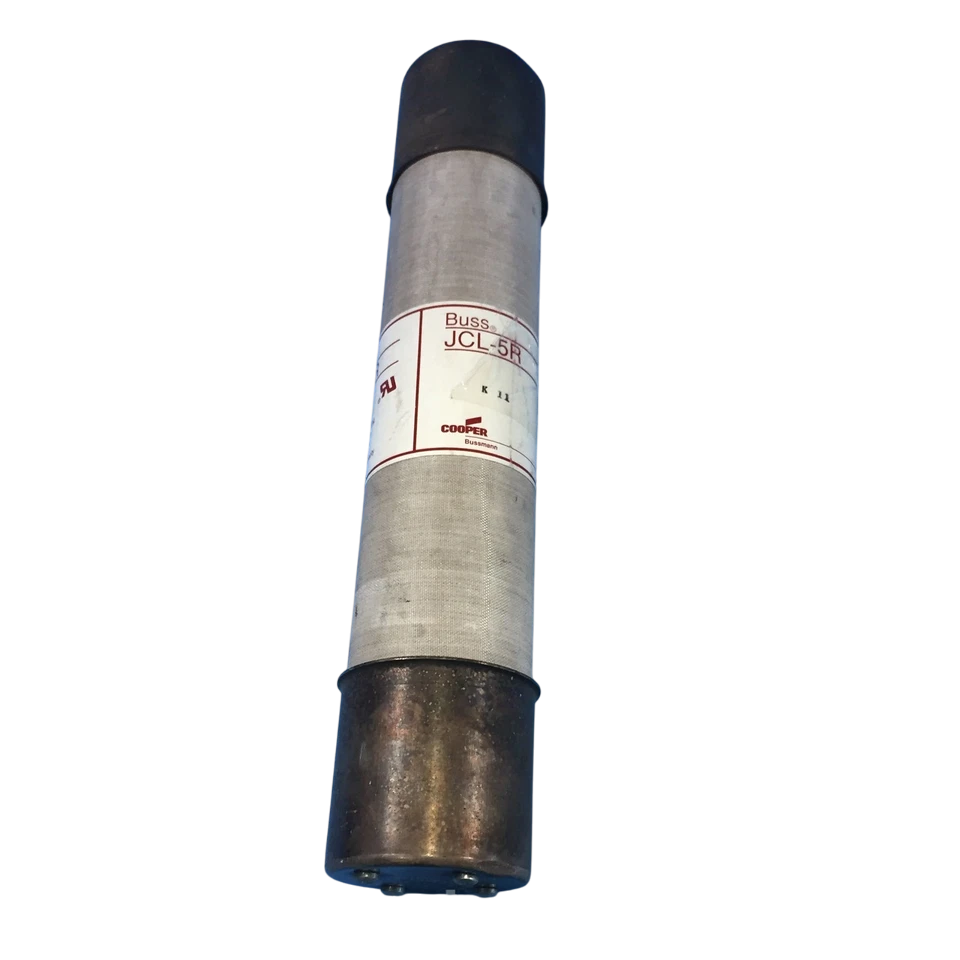

Bussmann JCL-5R - Medium Voltage Current-Limiting Fuse 150A@5080V (Class R, 50kA AIC)

Bussmann JCL-5R is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 5080V voltage rating and 150A current rating for robust electrical performance in demanding applications. The fuse construction includes a single-barrel design with a 3-inch diameter and weighs 10 lb, providing durable physical characteristics for industrial environments. UL certified and meeting Class R requirements, this fuse ensures compliance with industry safety standards. Typical applications include motor control centers, transformers, and feeder circuits where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single barrel design
• Voltage Rating: 5080V AC
• Current Rating: 150A
• Dimensions: 3-inch diameter
• Standards: UL certified, Class R rating
• Applications: Industrial power systems, motor control centers, transformers, feeder circuits
• AIC rating: 50kA@4800V
• Barrels: 1
• Class Rating: R
• Weight: 10 lb
• Family: JC Series
• Item Subcategory: Medium Voltage Fuse

Product Identification

• UPC: 05171269105
• GTIN: 00051712691055
