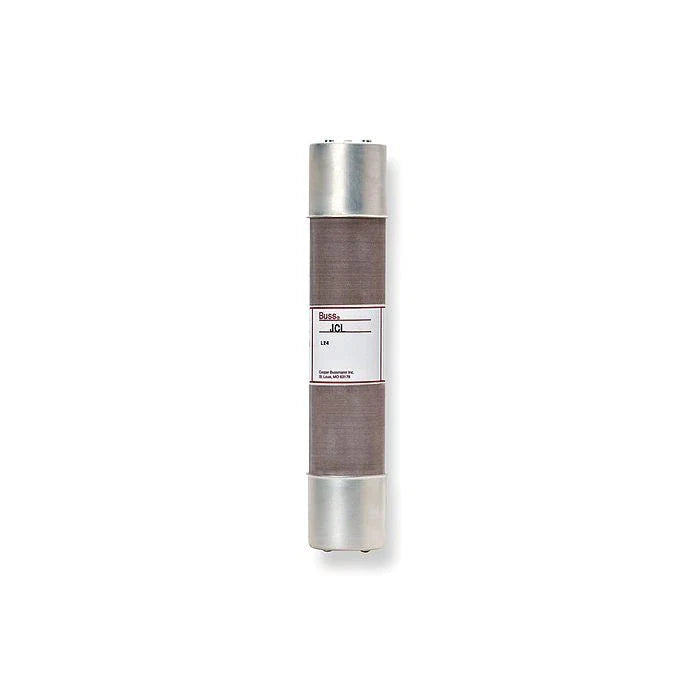

Bussmann JCL-3R - Medium Voltage Current-Limiting Fuse 100A (Class R, 5080V, 50kA AIC)

Bussmann
Price
Save $132.90
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann JCL-3R is a medium voltage current-limiting fuse designed to provide reliable overcurrent protection in demanding industrial power systems. It features a 5080V voltage rating and a 100A current rating, engineered to interrupt high fault currents safely. The fuse is constructed as a single-barrel unit with a 3-inch diameter and a robust design weighing 10 lb, ensuring mechanical durability. It complies with Class R fuse standards and delivers a 50kA interrupting rating at 4800V, meeting critical industry safety requirements. This fuse is typically applied in motor control centers, transformers, and feeder circuits where high-voltage protection is essential.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Single Barrel
  • Voltage Rating: 5080V
  • Current Rating: 100A
  • Dimensions: 3-inch Diameter
  • Standards: Class R
  • Applications: Motor Control Centers, Transformers, Feeder Circuits
  • AIC rating: 50kA@4800V
  • Barrels: 1
  • Class Rating: R
  • Diameter: 3 inches
  • Weight: 10 lb
  • Family: JC Series
  • Item Subcategory: Medium Voltage Fuse


Product Identification
  • UPC: 005171269103
  • GTIN: 00051712691031
