Littelfuse IDSR060 - RK5 Time-Delay Fuse 60A 600V (200kA AIC)
IDSR060 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 60A Fuse - Essential Electric Supply
IDSR060 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 60A Fuse - Essential Electric Supply
IDSR060 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 60A Fuse - Essential Electric Supply
IDSR060 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 60A Fuse - Essential Electric Supply
Littelfuse IDSR060 - RK5 Time-Delay Fuse 60A 600V (200kA AIC)

Littelfuse IDSR060 - RK5 Time-Delay Fuse 60A 600V (200kA AIC)

Littelfuse
Price
Save $20.60
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

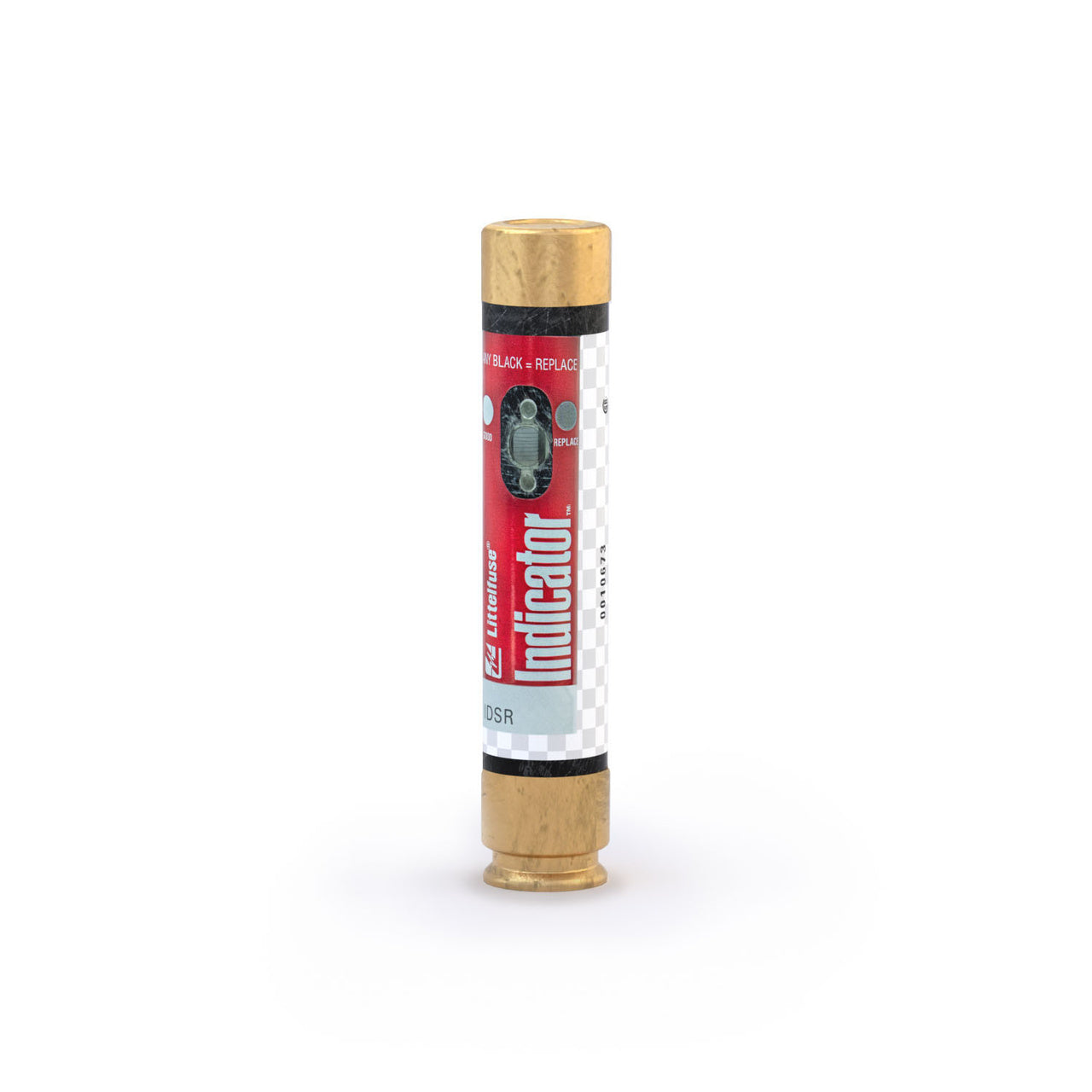

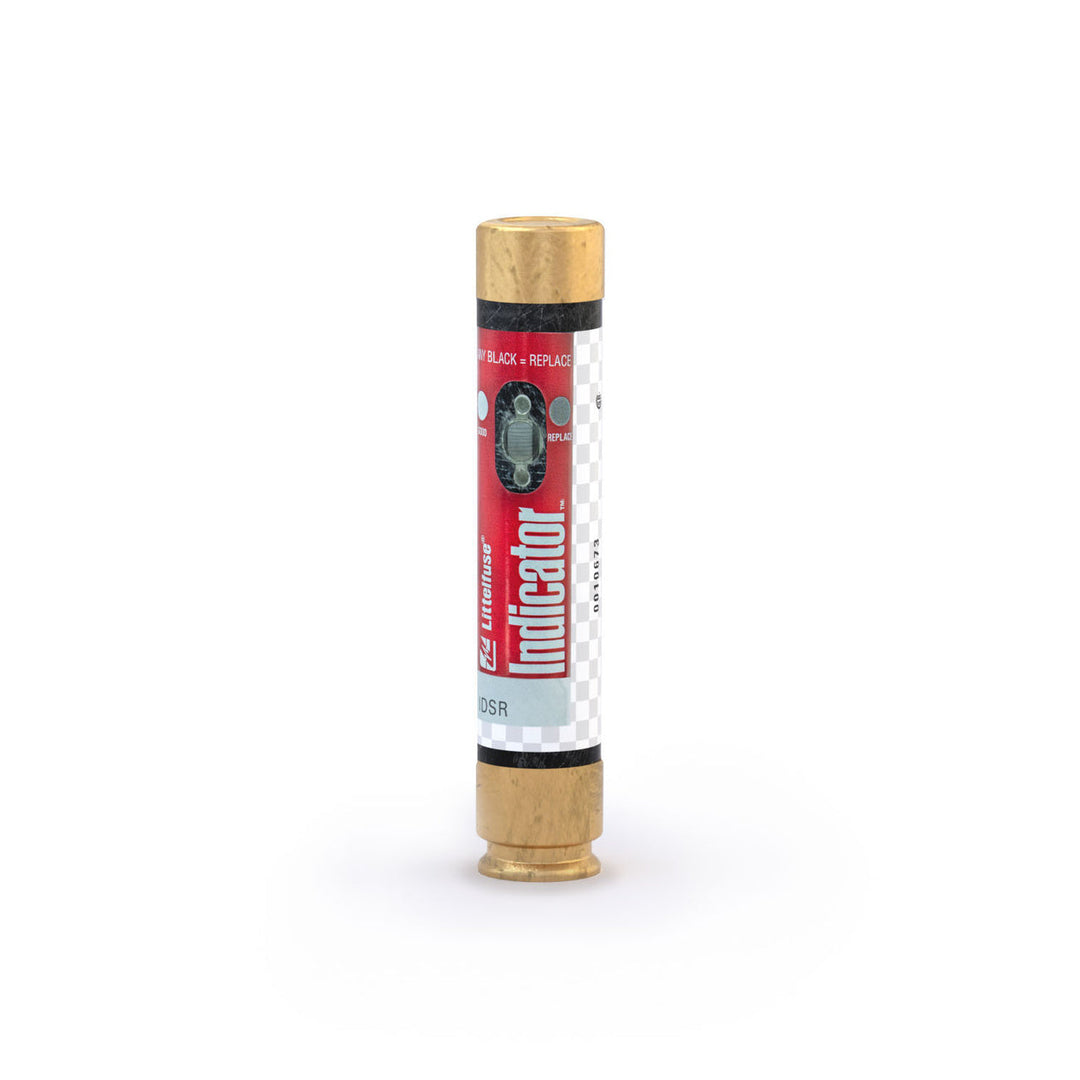

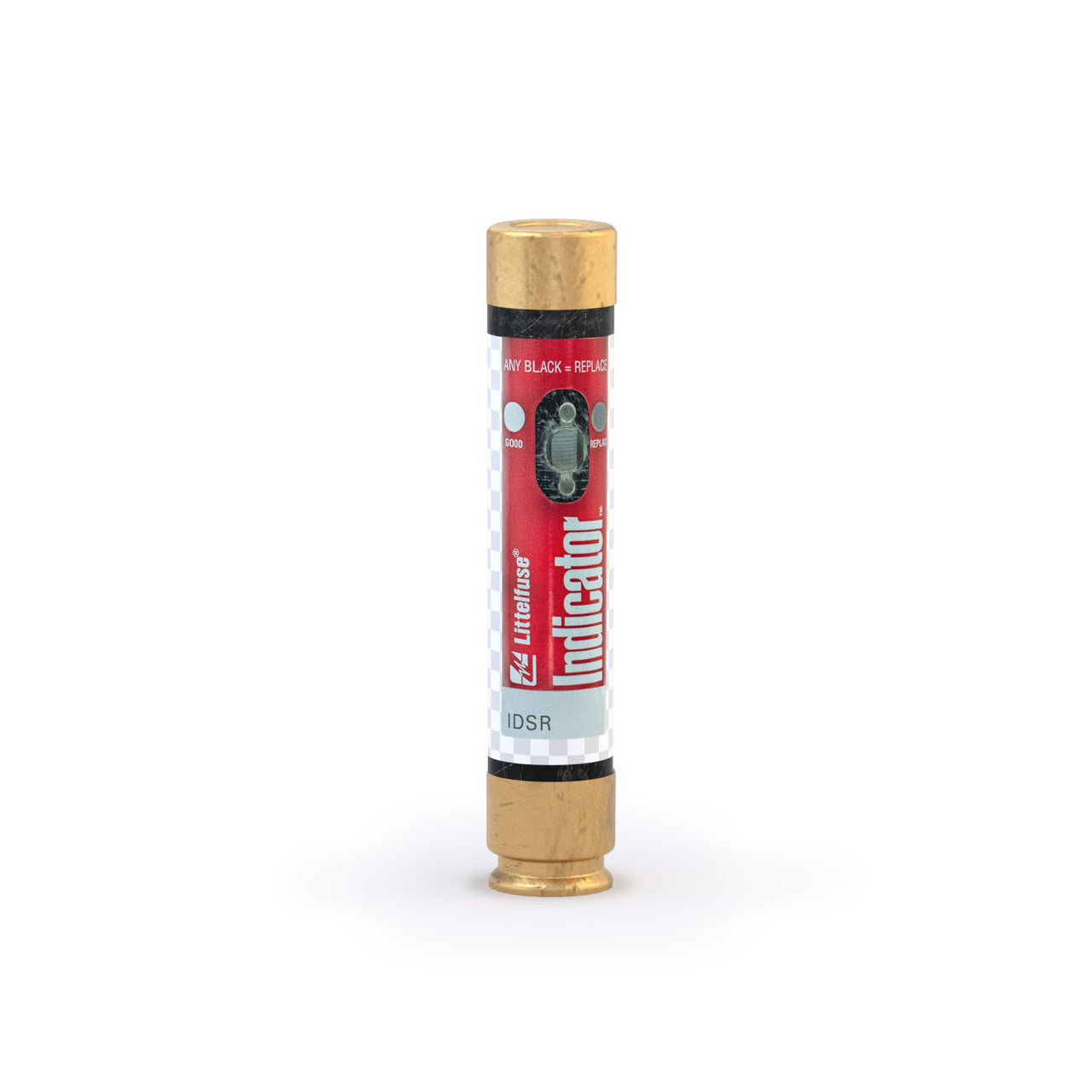

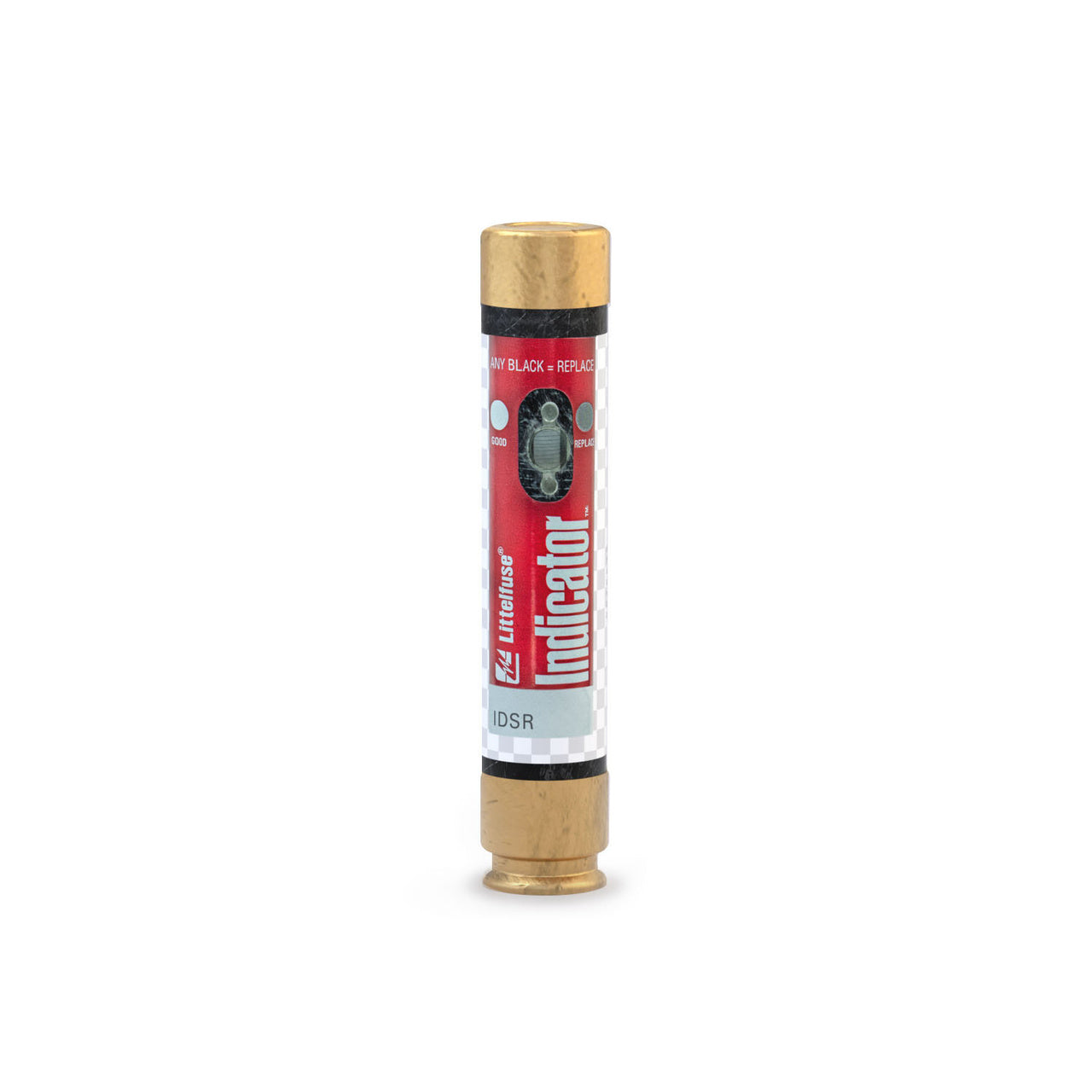

Littelfuse IDSR060 is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 60A current rating with a 200kA interrupting capacity at 600V for reliable overload and short-circuit protection. The fuse measures 5.1/2 inches in length with a 3.09-inch diameter barrel construction and 0.35 lb weight, incorporating visual indication for fault detection. Certified to CSA, cUL, and UL standards, this Mexico-manufactured fuse is engineered for motor branch circuits, transformers, and power distribution panels where time-delay characteristics are required.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse with indication
  • Voltage Rating: 600V AC/DC
  • Current Rating: 60A
  • Dimensions: 5.5 in length x 3.09 in diameter
  • Weight: 0.35 lb
  • Standards: CSA, cUL, UL listed
  • Applications: Motor circuits, transformers, power distribution
  • Class Rating: RK5
  • Barrels: 1
  • AIC rating: 200kA@600V
  • Country of Origin: Mexico
Product Identification
  • UPC: 07945801567
  • GTIN: 00079458015676
