Littelfuse IDSR020 - RK5 Time-Delay Fuse 20A 600V (200kA AIC)
IDSR020 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 20A Fuse - Essential Electric Supply
IDSR020 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 20A Fuse - Essential Electric Supply
IDSR020 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 20A Fuse - Essential Electric Supply
IDSR020 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 20A Fuse - Essential Electric Supply
IDSR020 Littelfuse IDSR Series - UL Class RK5 Dual-Element Time Delay Fuses with Indication Low Voltage Fuse 600V 20A Fuse - Essential Electric Supply
Littelfuse IDSR020 - RK5 Time-Delay Fuse 20A 600V (200kA AIC)

Littelfuse IDSR020 - RK5 Time-Delay Fuse 20A 600V (200kA AIC)

Littelfuse
Price
Save $6.81
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

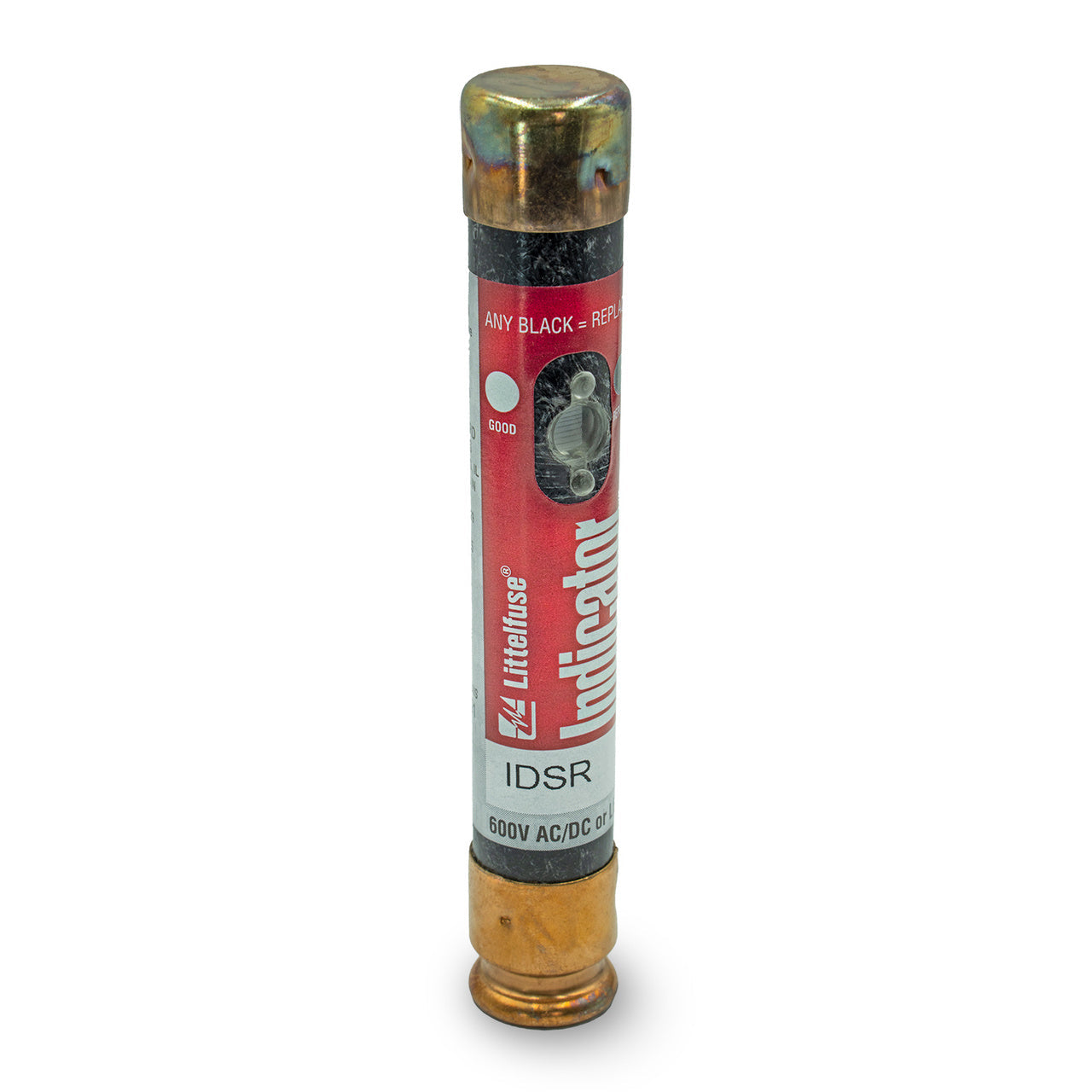

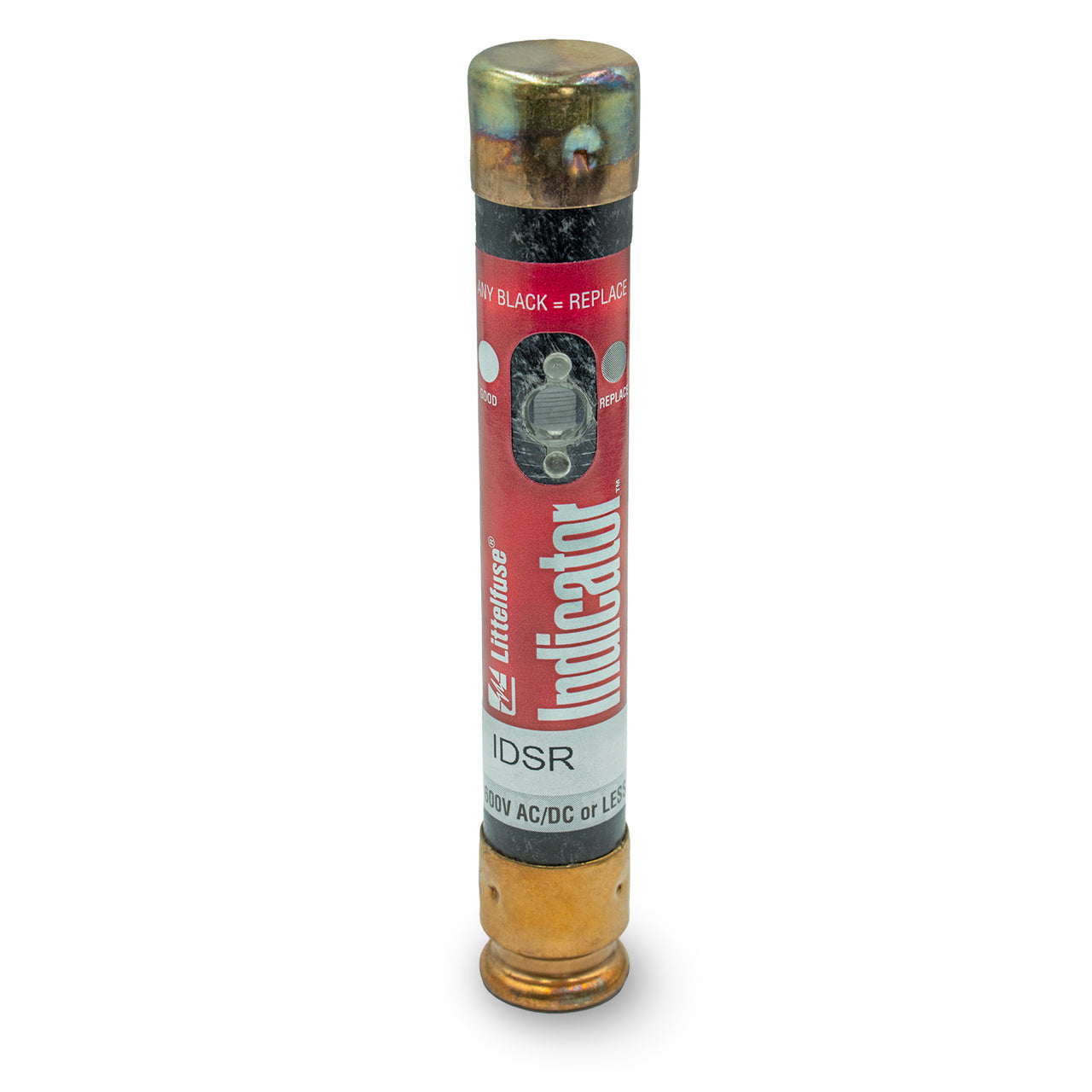

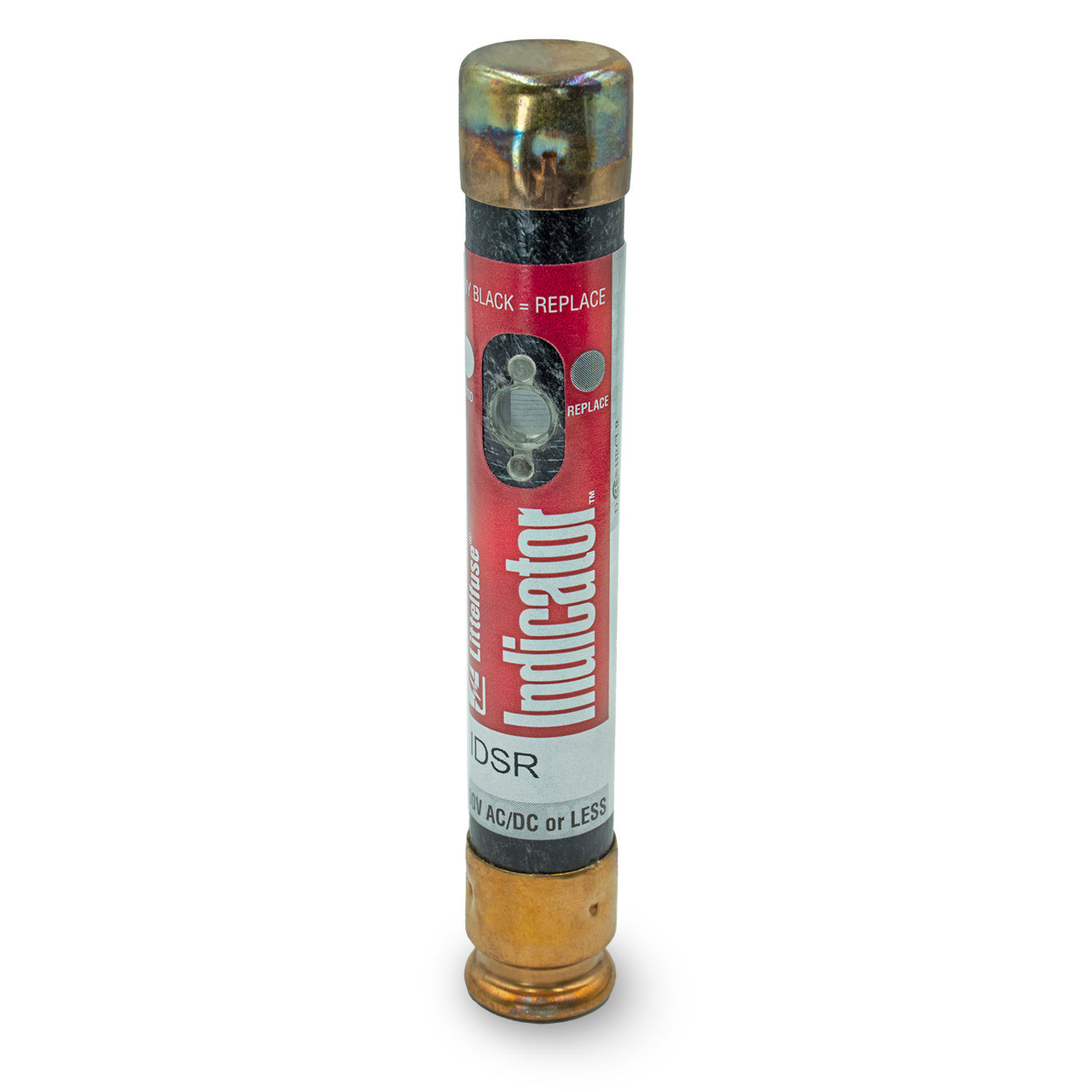

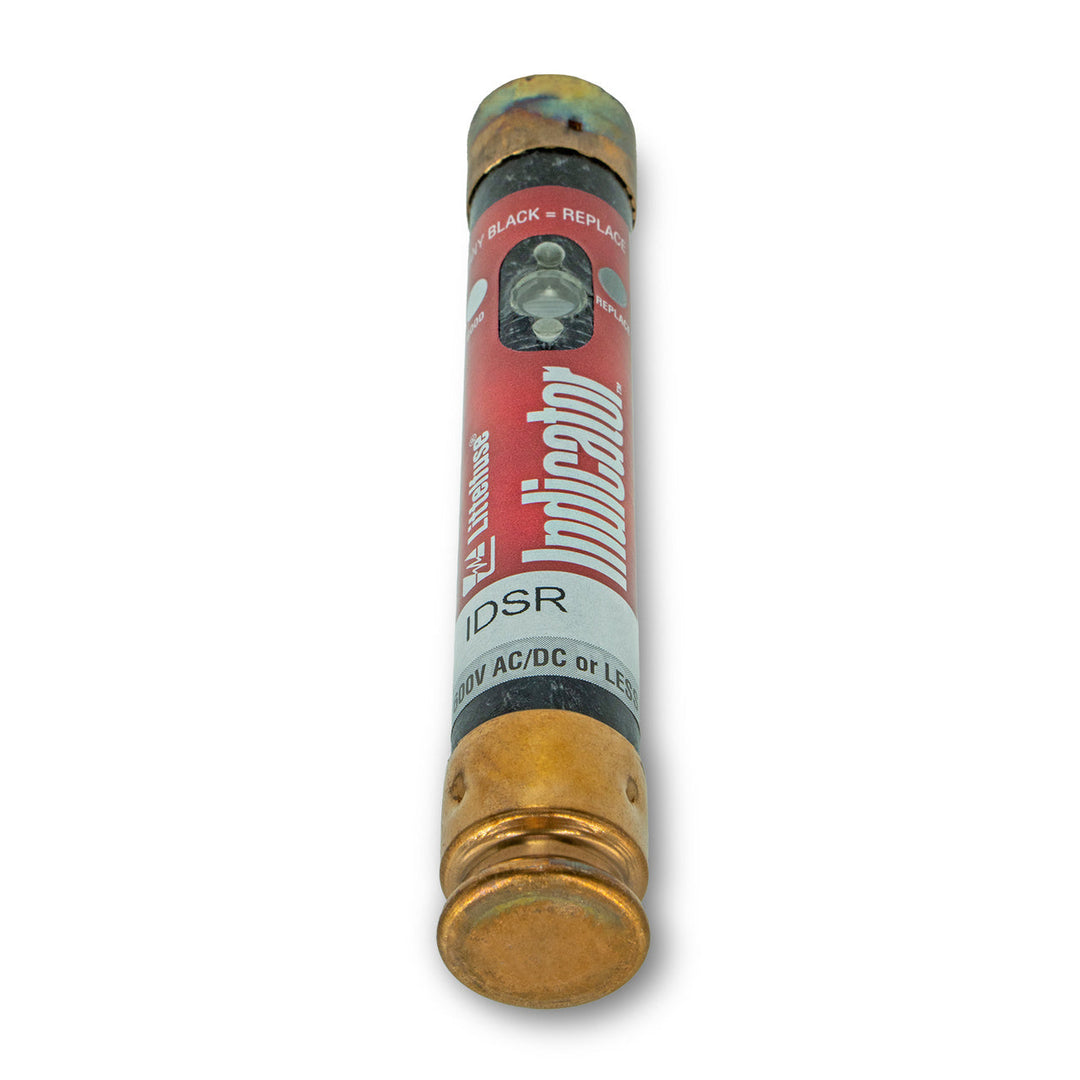

Littelfuse IDSR020 is a UL Class RK5 dual-element time-delay fuse designed for overcurrent protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 20A current rating with a 200kA interrupting capacity, housed in a compact 5-1/2" body with 0.81" diameter and 0.18 lb weight. The fuse incorporates visual indication and meets CSA, cUL, and UL standards for safety compliance. Typical applications include motor protection, transformer circuits, and power distribution panels where reliable time-delay characteristics are required.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse with visual indication
  • Voltage Rating: 600V AC/DC
  • Current Rating: 20A
  • Dimensions: 5-1/2" length x 0.81" diameter
  • Weight: 0.18 lb
  • Standards: CSA, cUL, UL listed
  • Applications: Motor circuits, transformers, power distribution
  • AIC rating: 200kA@600V
  • Class Rating: RK5
  • Barrels: 1
  • Country of Origin: Mexico
Product Identification
  • UPC: 07945801560
  • GTIN: 00079458015607
