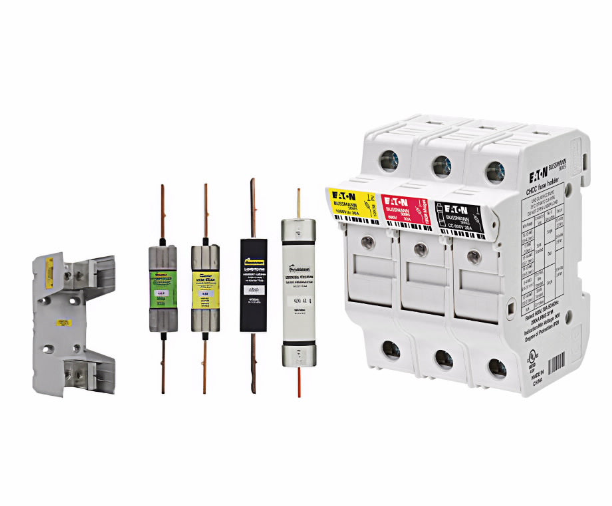

Bussmann HVW-1 - Medium Voltage Fuse 1A 1200V (Class E Rated)

Bussmann HVW-1 is a medium voltage fuse designed for circuit protection in industrial power distribution systems. It features a 1200V voltage rating and 1A current rating for reliable overcurrent protection in demanding applications. The fuse construction utilizes a single-barrel design with a 0.41-inch diameter and weighs 5.19 lb, built to Class E specifications for high-voltage applications. It complies with industry standards for medium voltage protection with an interrupting rating of 1250kVA at 2.5kV. Typical applications include motor control centers, transformers, and industrial switchgear where robust circuit protection is required.

Key Features & Specifications

• Type: Medium Voltage Fuse, Single Barrel, Class E Rated
• Voltage Rating: 1200V
• Current Rating: 1A
• Dimensions: 0.41-inch Diameter
• Weight: 5.19 lb
• Standards: Class E Rated
• Applications: Industrial Power Distribution, Motor Control Centers, Transformers, Switchgear
• AIC Rating: [email protected]
• Barrels: 1
• Class Rating: E
• Family: HV Series

Product Identification

• UPC: 05171272089
• GTIN: 00051712720892
