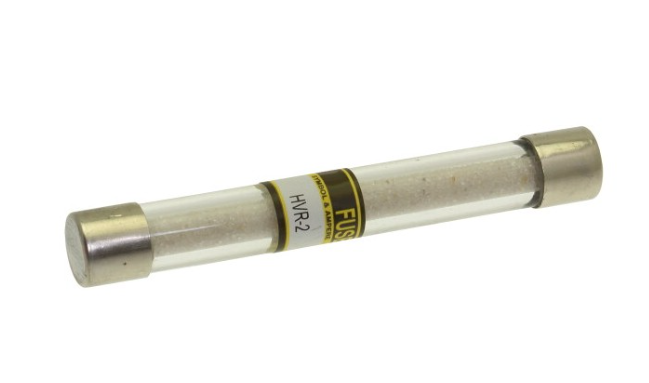

Bussmann HVR-2 - Medium Voltage Fuse 2A 1000V (Class E)
Bussmann HVR-2 - Medium Voltage Fuse 2A 1000V (Class E)
Bussmann HVR-2 - Medium Voltage Fuse 2A 1000V (Class E)
Bussmann HVR-2 - Medium Voltage Fuse 2A 1000V (Class E)

Bussmann HVR-2 - Medium Voltage Fuse 2A 1000V (Class E)

Bussmann
Price
Save $-92.06
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann HVR-2 is a medium voltage current-limiting fuse designed for protecting transformers, motors, and feeders in industrial power systems. It is rated for 1000V AC systems with a 2A current rating and an interrupting capacity of 500kA at 1kV. The fuse features a single-barrel construction with a 0.41-inch diameter and a Class E rating, built for durable performance in demanding environments. It complies with industry standards for medium voltage protection and is typically applied in switchgear, motor control centers, and industrial power distribution networks.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, Single Barrel Fuse
  • Voltage Rating: 1000V AC
  • Current Rating: 2A
  • Dimensions: 0.41 in Diameter
  • Standards: Class E Rated
  • Applications: Transformer, Motor, and Feeder Protection
  • AIC Rating: 500kA @ 1kV
  • Barrels: 1
  • Weight: 5.19 lb


Product Identification
  • UPC: 05171217150
