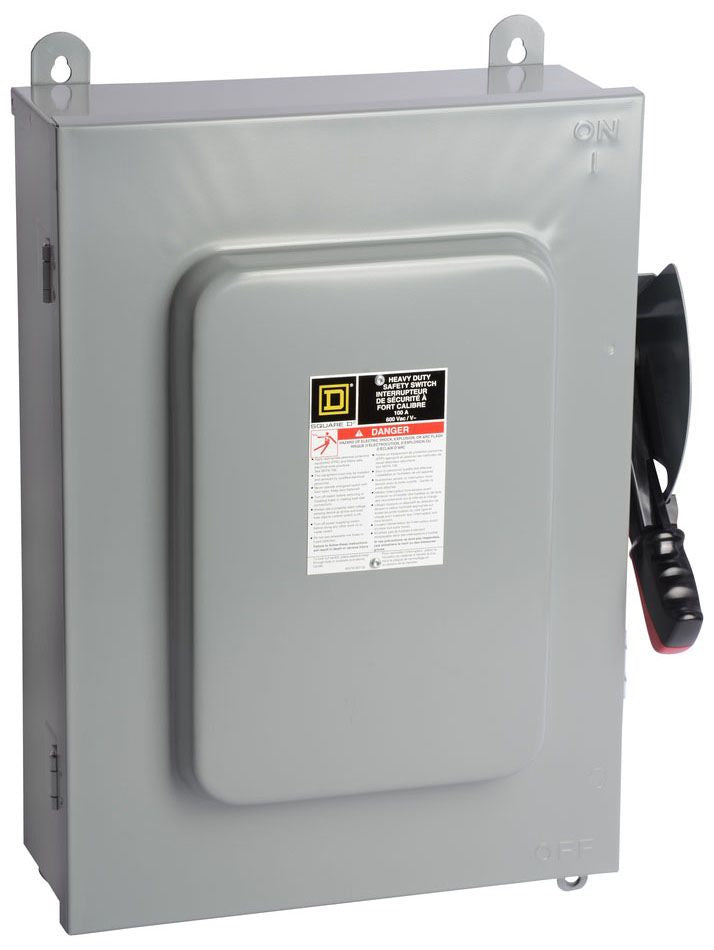

Square D HU663AWK - 100A 600V Non-Fusible Disconnect Switch

Square D
Price
Save $453.88
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HU663AWK is a heavy-duty industrial disconnect switch designed for the safe isolation of three-phase electrical circuits. It provides a 100A current rating and a 600V AC voltage rating, housed within a robust NEMA 12 enclosure measuring 520.7 mm H x 409.7 mm W x 172.7 mm D and weighing 30.975 lb. The switch is UL listed and features a non-fusible, six-pole single configuration with an interrupting capacity of 200kA at 600V, compatible with Series E ED frames. It is engineered for demanding applications such as motor control centers and industrial machinery, accepting copper wire from AWG 14 to 1/0 and aluminum wire from AWG 12 to 1/0.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HU Type, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Phase: 3
  • Poles: 6
  • AIC Rating: 200kA @ 600V
  • Dimensions: 20.5 in H (520.7 mm) x 16.13 in W (409.70 mm) x 6.8 in D (172.7 mm)
  • Weight: 30.975 lb
  • Wire Size: AWG 14 to 1/0 Copper; AWG 12 to 1/0 Aluminum
  • NEMA Rating: NEMA 12
  • Certification: UL Listed
  • Compatible Frames: Series E, ED Frame
  • Country of Origin: United States


Product Identification
  • UPC: 785901868378
  • GTIN: 00785901451815
