Square D HU662DS - Non-Fusible Disconnect Switch 60A 600V 3-Phase

Square D
Price
Save $3,755.62
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

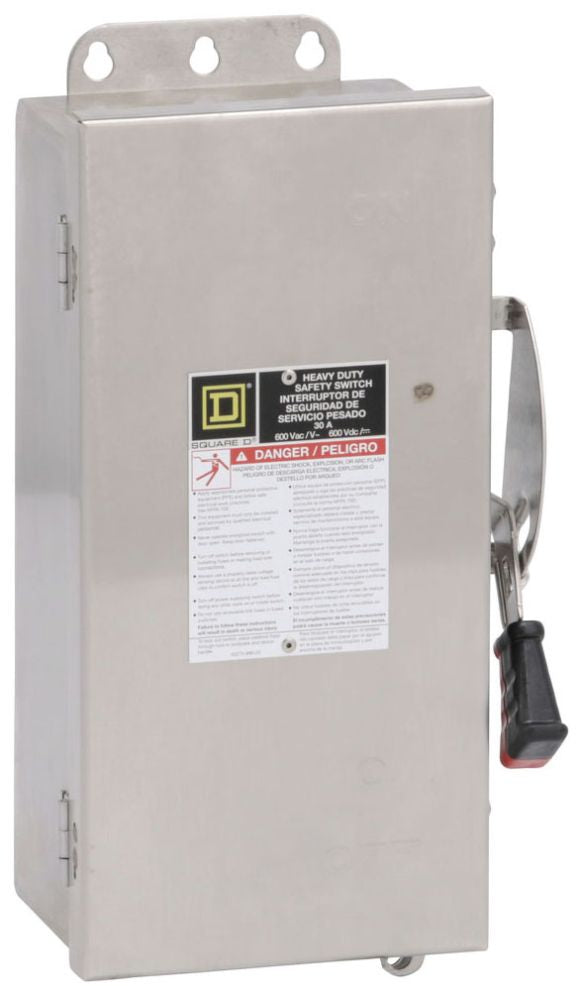

Square D HU662DS is a non-fusible safety disconnect switch designed for providing a visible break and isolation in three-phase industrial power circuits. It is rated for 600V AC systems with a 60A current rating and features a robust six-pole, single-configuration design housed in a NEMA 5 enclosure measuring 16.85 in (W) x 6.97 in (D) x 20.82 in (H) and weighing 16.96 lb. The switch is engineered for high-fault protection with an interrupting rating of 200kA at 600V and is compatible with Series E, ED frame equipment, accepting copper conductors from AWG 14 to 3 and aluminum from AWG 12 to 3. It is manufactured in the United States to meet rigorous industrial safety and performance standards for reliable operation in motor control centers and power distribution panels.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, HU Type, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Phase: 3
  • Poles: 6
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 14 to 3 (Copper), AWG 12 to 3 (Aluminum)
  • Dimensions: 16.85 in x 6.97 in x 20.82 in (Width x Depth x Height)
  • Weight: 16.96 lb
  • NEMA Rating: NEMA 5
  • Compatible Frames: ED
  • Family: Series E
  • Country of Origin: United States


Product Identification
  • UPC: 785901083801
  • GTIN: 00785901083801
