Square D HU368 - Non-Fusible Disconnect 1200A 600V

Square D
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

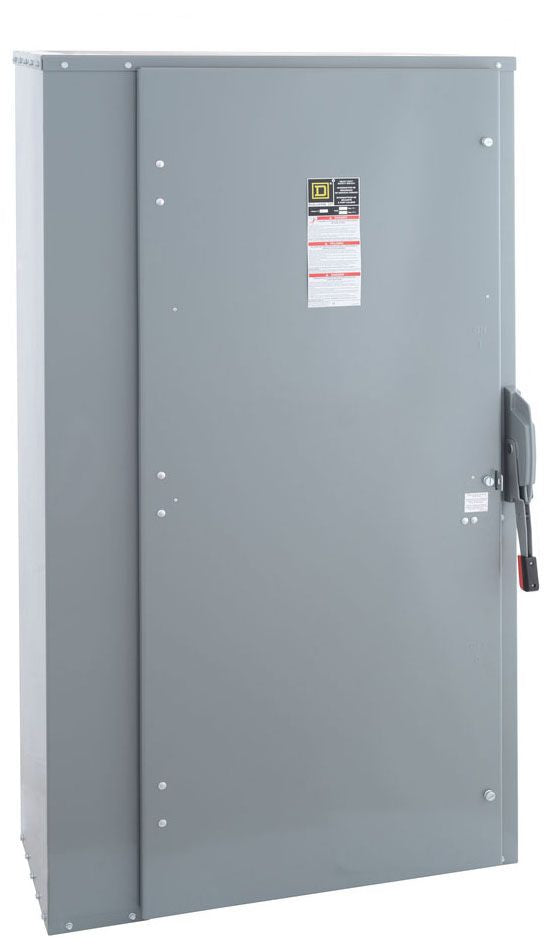

The Square D HU368 is a heavy-duty, non-fusible safety disconnect switch designed for isolating electrical circuits in industrial power distribution. It provides reliable load-break isolation with a 1200A current rating and a 600V AC/DC voltage rating, housed within a robust NEMA 1 enclosure measuring 1755.9 mm H x 930.15 mm W x 450.85 mm D and weighing 350 lb. This UL-listed switch is engineered for high-fault protection, featuring an interrupting rating of 200kA at 600V and compatibility with Series E, ED-frame equipment. Its three-pole, single-configuration design accommodates large conductors from AWG 3/0 to 750 kcmil, making it suitable for service entrance and main disconnect applications in manufacturing and commercial facilities.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, HU Type, Single Configuration
  • Voltage Rating: 600V AC/DC
  • Current Rating: 1200A
  • Dimensions: 1755.9 mm H x 930.15 mm W x 450.85 mm D (69.13 in x 36.62 in x 17.75 in)
  • Weight: 350 lb
  • Standards: UL Listed
  • Applications: Main Disconnect, Service Entrance, Industrial Power Distribution
  • Switch Style: Non-Fusible
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 3/0 to 750 kcmil (Copper or Aluminum)
  • NEMA Rating: NEMA 1
  • Compatible Frames: ED
  • Family: Series E
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901195498
  • GTIN: 00785901195498
