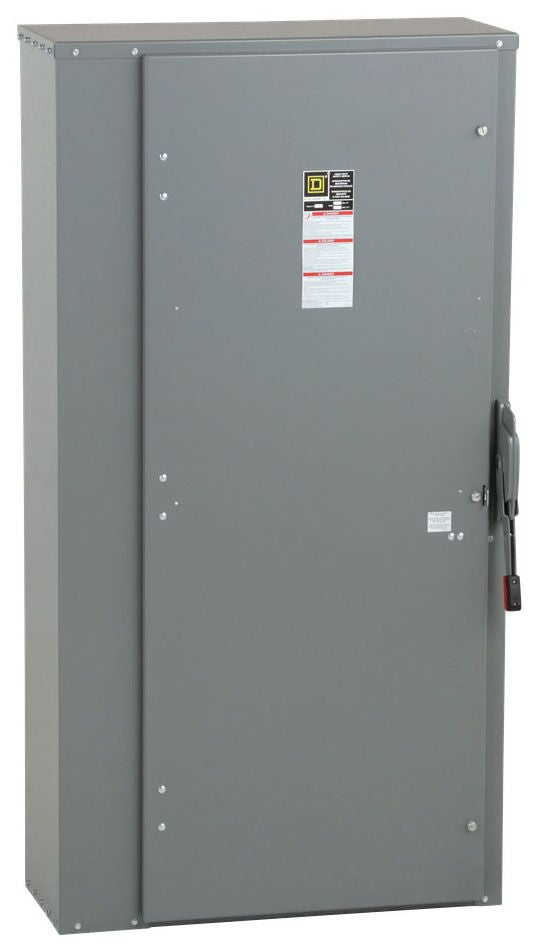

Square D HU367 - Non-Fusible Safety Switch 800A 600V (3-Pole)

Square D
Price
Save $4,475.79
/
Title
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Square D HU367 is a heavy-duty industrial safety switch designed for providing a visible disconnect and isolation point in high-power electrical circuits. It features a robust 800A current rating and a 600V AC/DC voltage rating, engineered for demanding three-phase applications. The switch is constructed with a non-fusible design within a NEMA 1 enclosure, measuring 1755.90 mm H x 930.15 mm W x 450.85 mm D and weighing 343 lb for substantial panel integration. It is UL Listed and offers a high interrupting capacity of 200kA at 600V, ensuring reliable protection and compliance with industrial safety standards. This disconnect is typically applied in industrial power distribution, motor control centers, and as a main service entrance disconnect where a visible break is required.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Series E, HU Type
  • Voltage Rating: 600V AC/DC
  • Current Rating: 800A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 1
  • Dimensions: 1755.90 mm H x 930.15 mm W x 450.85 mm D (69.13 in x 36.62 in x 17.75 in)
  • Weight: 343 lb
  • Standards: UL Listed
  • Compatible Frames: ED Frame
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901195429
  • GTIN: 00785901195429
