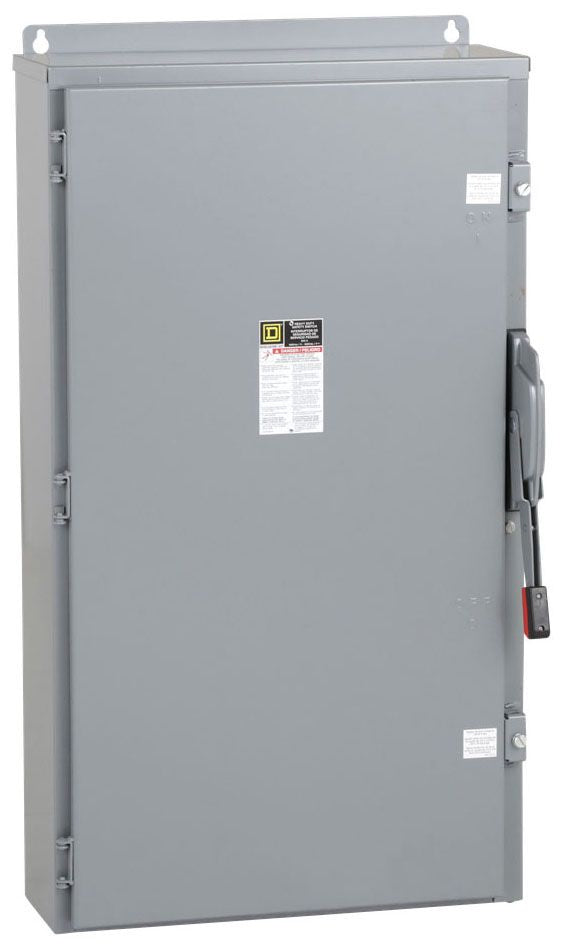

Square D HU366AWK is a heavy-duty, non-fusible safety disconnect switch designed for the safe isolation of three-phase industrial power circuits. It provides a visible break for maintenance with a 600A current rating and a 600V AC voltage rating, housed in a robust NEMA 12 enclosure measuring 1174.75 mm H x 666.75 mm W x 257.30 mm D and weighing 175.001 lb. The switch is UL certified and features an interrupting capacity of 200kA at 600V, ensuring reliable protection for compatible ED frame equipment. Its construction accommodates large conductor sizes from AWG 3/0 to 500 Kcmil, making it suitable for demanding applications in manufacturing plants, data centers, and heavy machinery power distribution.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HU Type, Series E Family
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 1174.75 mm H x 666.75 mm W x 257.30 mm D (46.25 in x 26.25 in x 10.13 in)
  • Weight: 175.001 lb
  • Standards: UL Certified
  • Applications: Industrial power isolation for manufacturing, data centers, and heavy machinery
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 3/0 to 500 Kcmil Copper/Aluminum
  • NEMA Rating: NEMA 12
  • Compatible Frames: ED
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901455516
  • GTIN: 00785901455516
