Square D HU365DS Disconnect Switch (Non-Fusible) - Essential Electric Supply
Square D HU365DS - Non-Fusible Disconnect Switch 400A 600V
Square D HU365DS - Non-Fusible Disconnect Switch 400A 600V
Square D HU365DS Disconnect Switch (Non-Fusible) - Essential Electric Supply
Square D HU365DS - Non-Fusible Disconnect Switch 400A 600V
Square D HU365DS - Non-Fusible Disconnect Switch 400A 600V

Square D HU365DS - Non-Fusible Disconnect Switch 400A 600V

Square D
Price
Save $5,019.74
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

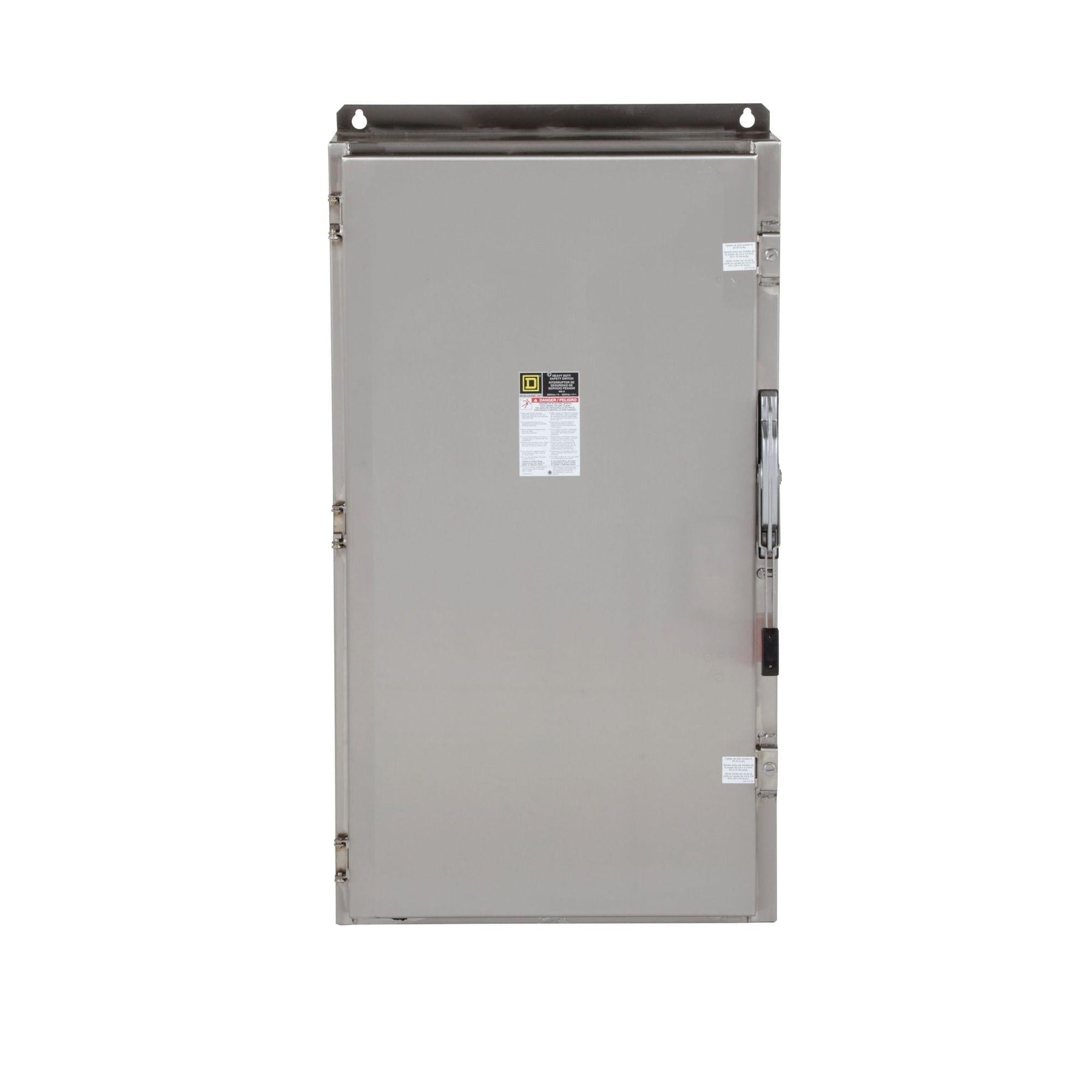

Square D HU365DS is a heavy-duty, non-fusible safety disconnect switch designed for isolating electrical circuits in industrial power distribution. It provides reliable load-break isolation with a 600V AC voltage rating and a 400A current rating, housed within a robust NEMA 5 enclosure measuring 1174.75 mm H x 666.75 mm W x 257.30 mm D and weighing 175.001 lb. This UL-listed, three-phase switch features a 200kA interrupting rating at 600V, is compatible with Series E and ED frames, and accepts conductors sized from AWG 1/0 to 750 kcmil, making it suitable for service entrance and feeder circuit applications in demanding environments.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, HU Type, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 1174.75 mm H x 666.75 mm W x 257.30 mm D (46.25 in x 26.25 in x 10.13 in)
  • Weight: 175.001 lb
  • Standards: UL Listed
  • Applications: Industrial service entrance, feeder circuit isolation, power distribution
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 1/0 to 750 kcmil (copper or aluminum)
  • NEMA Rating: NEMA 5
  • Compatible Frames: ED, Series E
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901195979
  • GTIN: 00785901195979
