Square D HU363AWKVW - Non-Fusible Disconnect Switch 100A 600V 3P

Square D
Price
Save $-1,018.75
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

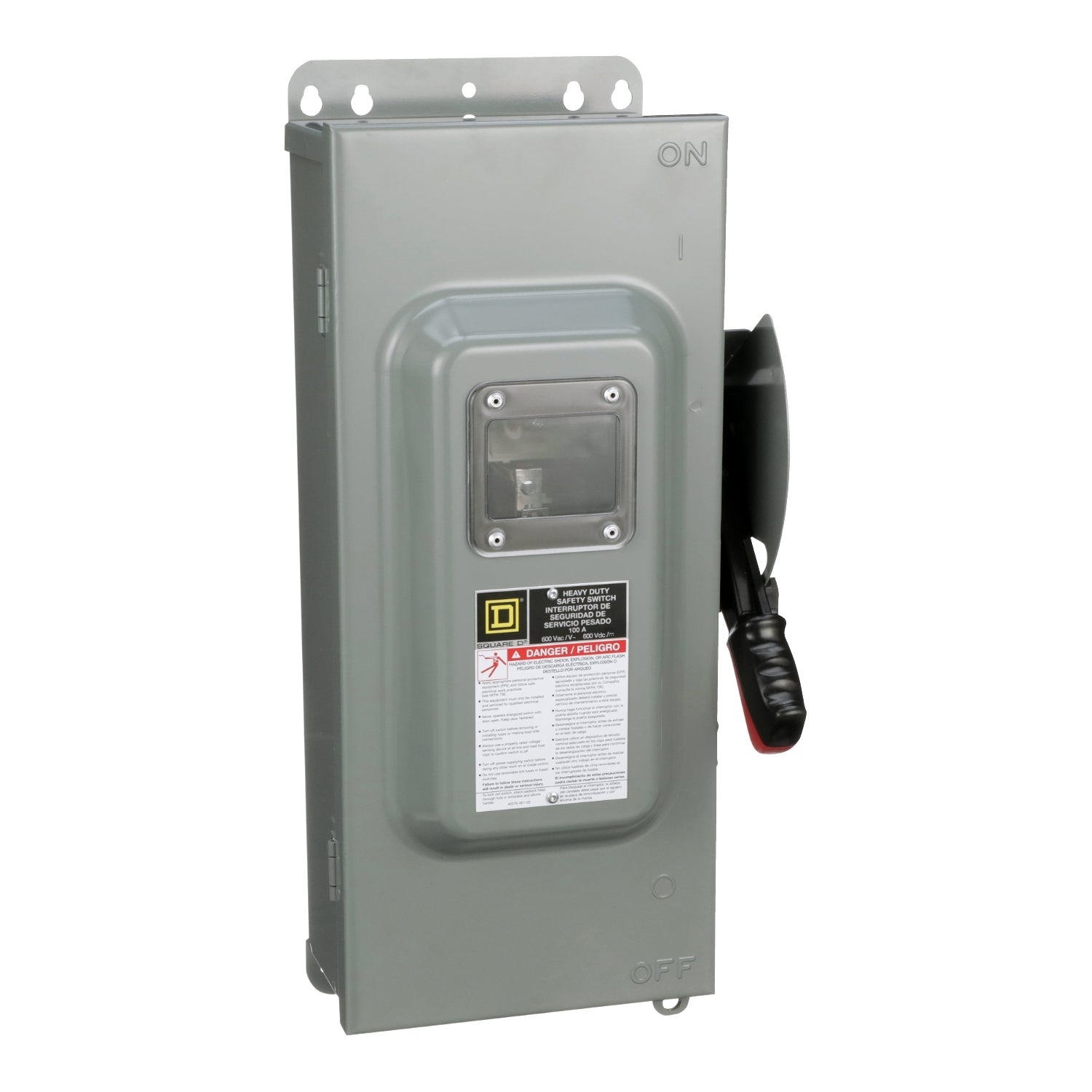

Square D HU363AWKVW is a non-fusible safety disconnect switch designed for isolating three-phase electrical circuits in industrial applications. It provides a visible break for maintenance safety with a 600V AC voltage rating and a 100A current rating, housed in a robust enclosure measuring 520.7 mm H x 266.7 mm W x 177.8 mm D and weighing 19.44 lb. The switch is built to NEMA 3R/12 standards for indoor/outdoor use and offers an interrupting capacity of 200kA at 600V. Its typical applications include motor control centers, industrial machinery, and power distribution panels where reliable circuit isolation is required.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Series E, HU Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: 3R/12
  • Dimensions: 20.5 in H (520.7 mm) x 10.5 in W (266.7 mm) x 7 in D (177.8 mm)
  • Weight: 19.44 lb
  • Switch Style: Non-Fusible
  • Item Subcategory: Disconnect
  • Family: Series E


Product Identification
  • UPC: 78590120888
  • GTIN: 00785901208884
